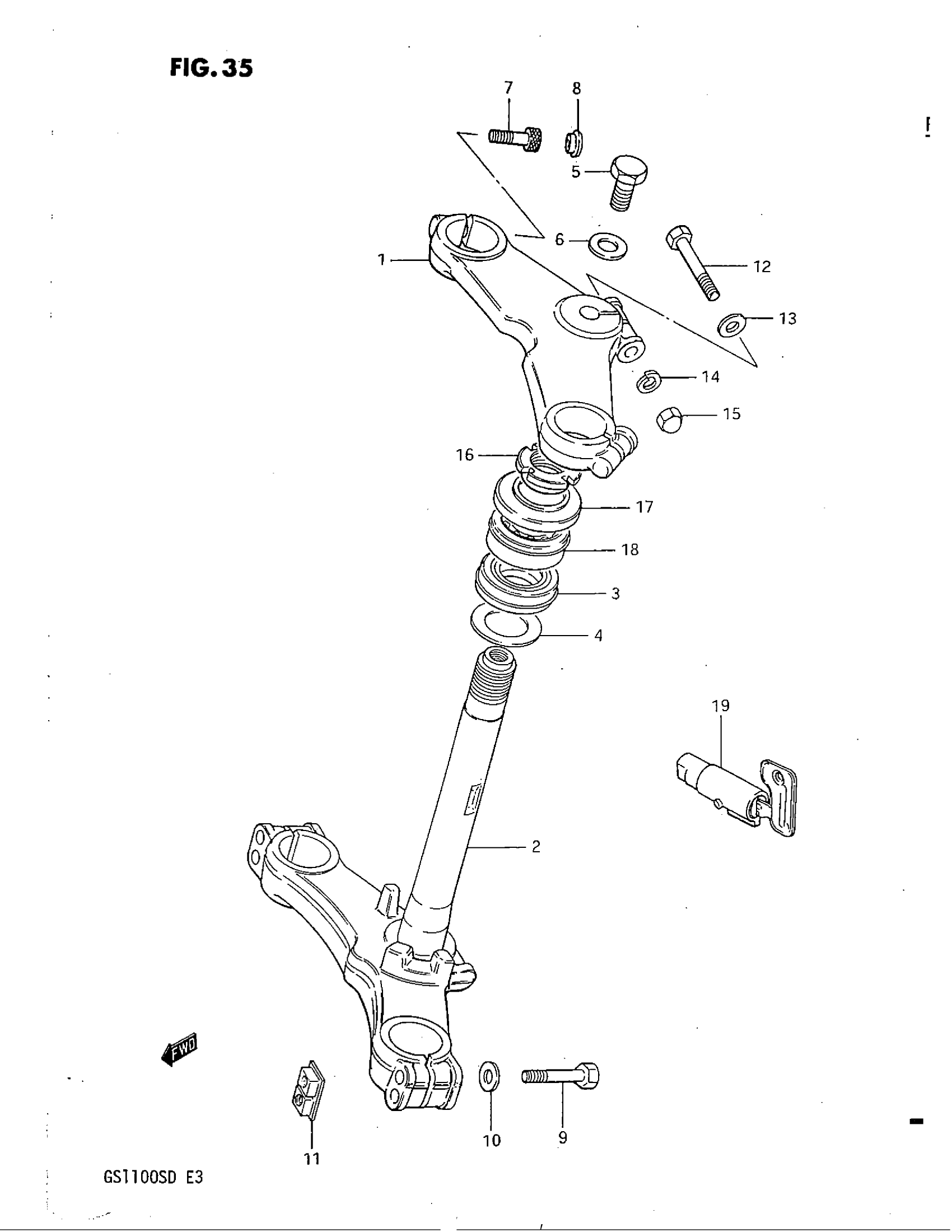

Suzuki GS1100S (1983) STEERING STEM Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 51311-49330-291.

51311-08C20

Unavailable

2

STEM, STEERING | Includes Item(s) 3 - 4

51400-49830-291

Unavailable

3

RT 30X55X17 BEA This part replaces 09265-30005.

09265-30034

$57.05

4

SHIM, 30X40X1.5 This part replaces 08211-30402.

09181-30184

$3.07

5

BOLT This part replaces 51353-49300.

51352-31305

Unavailable

6

WASHER This part replaces 51356-49300.

51356-43530

$6.55

7

BOLT

51352-49300

Unavailable

8

CAP

09250-08010

$2.33

9

BOLT This part replaces 01107-08558.

01500-08557

$3.16

10

WASHER This part replaces 08322-21088.

08322-01087

$2.13

11

NUT

51458-49000

Unavailable

12

BOLT This part replaces 01107-08508.

01500-08507

$3.05

13

WASHER This part replaces 08322-21088.

08322-01087

$2.13

14

.LOCK WASHER This part replaces 08321-31088.

08321-01087

$2.13

15

NUT This part replaces 08313-11085.

08313-1008B

$2.80

16

NUT, STEERING STEM

51631-34200

Unavailable

17

SEAL,DUST This part replaces 51643-40502.

51643-40503

$6.15

18

BEARING, STEERING UPPER

09265-25008

Unavailable

19

LOCK ASSY,STEER This part replaces 51900-22662.

51900-309V0

$87.06
