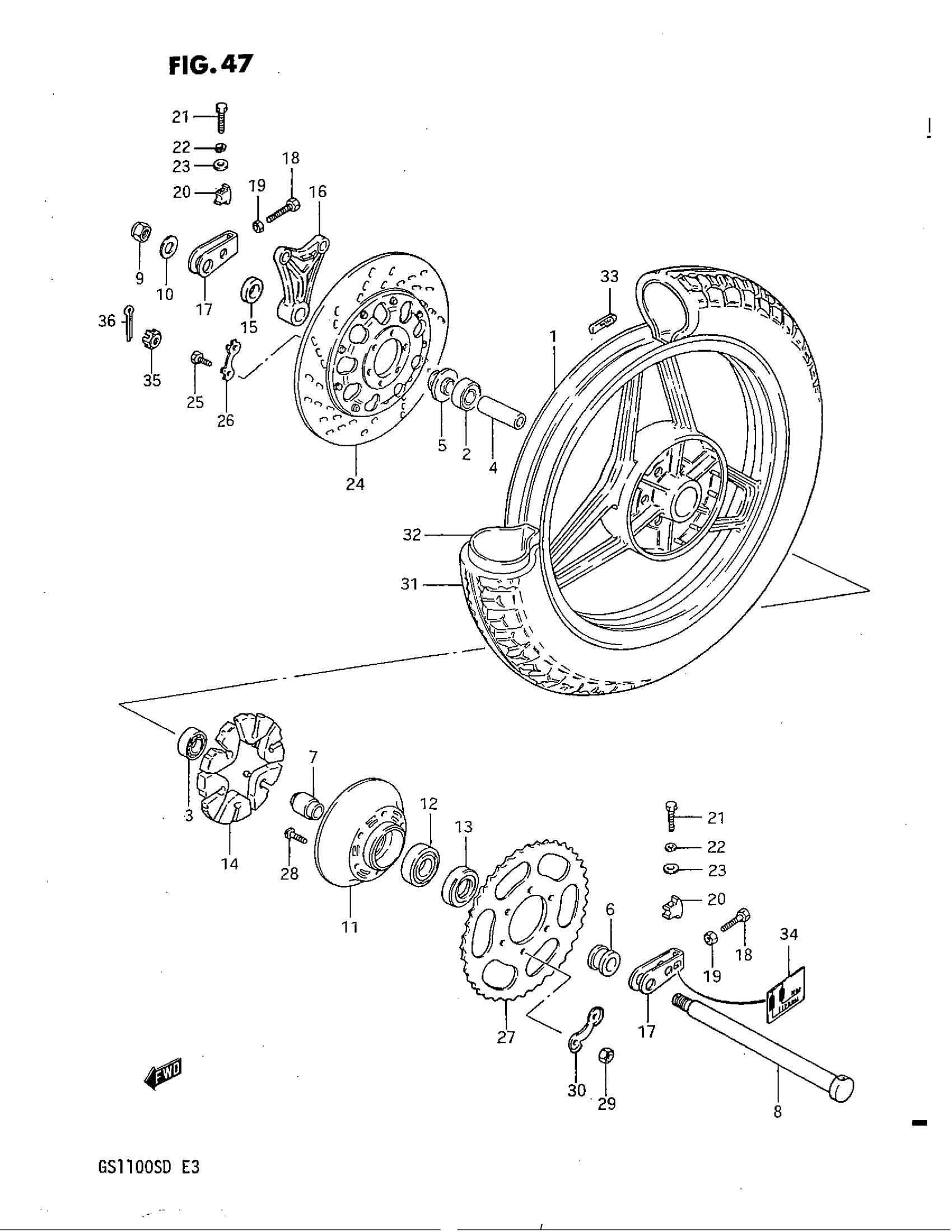

Suzuki GS1100S (1983) REAR WHEEL Diagram

#

Description
Price

1

WHEEL, REAR (MT2.50x17)

64111-49500-291

Unavailable

2

BEARING, RH

08133-62047

$28.61

3

BEARING, LH This part replaces 08153-62047.

09262-20042

$23.28

4

SPACER

09180-20062

$19.13

5

SPACER, AXLE, RH This part replaces 64740-45001.

64740-45002

Unavailable

6

SPACER, AXLE LH (20x33x28.3)

09180-20054

Unavailable

7

SPACER,RR HUB B This part replaces 64733-31000.

64733-3100V

Unavailable

8

AXLE,REAR This part replaces 64711-49000.

64711-4900V

Unavailable

9

NUT | MODEL Z

09159-18006

Unavailable

10

WASHER (19x34x4)

09160-19008

Unavailable

11

DRUM, SPROCKET This part replaces 64611-31001.

64611-31003

Unavailable

12

BEARING, DRUM This part replaces 08113-63050.

09262-25073

$25.92

13

OIL SEAL

09285-33001

$13.27

14

SHOCK ABSORBER, HUB This part replaces 64651-31000.

64651-31001

$11.19

15

SPACER

09180-20060

Unavailable

16

BRACKET, REAR CALIPERS

69721-47011

Unavailable

17

ADJUSTER, CHAIN

61410-31001

$49.02

18

BOLT (8X50) This part replaces 09104-08006.

09104-08034

$3.04

19

NUT This part replaces 08310-12088.

08310-00087

$2.13

20

SUPPORTER,CHAIN This part replaces 61433-31000.

61433-3100V

Unavailable

21

BOLT This part replaces 01107-08608.

01500-0860B

$3.49

22

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

23

WASHER This part replaces 08322-11088.

08322-01087

$2.13

24

DISK, REAR BRAKE

59210-18450

Unavailable

25

BOLT

09100-08094

$2.71

26

WASHER

09169-08016

$2.41

27

SPROCKET,REAR,N This part replaces 64511-49001.

64511-49002

Unavailable

28

BOLT This part replaces 09119-10002.

09105-10001

$2.87

29

NUT This part replaces 09140-10026.

09140-10026-XC0

$1.70

30

WASHER

09169-10007

Unavailable

31

TIRE (4.50V17) | BS

65100-49230

Unavailable

32

TUBE, INNER

65200-49030

Unavailable

33

BALANCER, WHEEL NO.2 This part replaces 55411-49300.

55412-17G00

$7.05

33

BALANCER, NO.2 (30G)

55412-49300

Unavailable

34

LABEL, CHAIN WEAR INDICATOR

68377-49000

Unavailable

35

NUT | MODEL D This part replaces 08314-31188.

08314-3118A

$5.16

36

PIN, REAR AXLE | MODEL D This part replaces 04111-40308.

04111-4030A

$1.49
