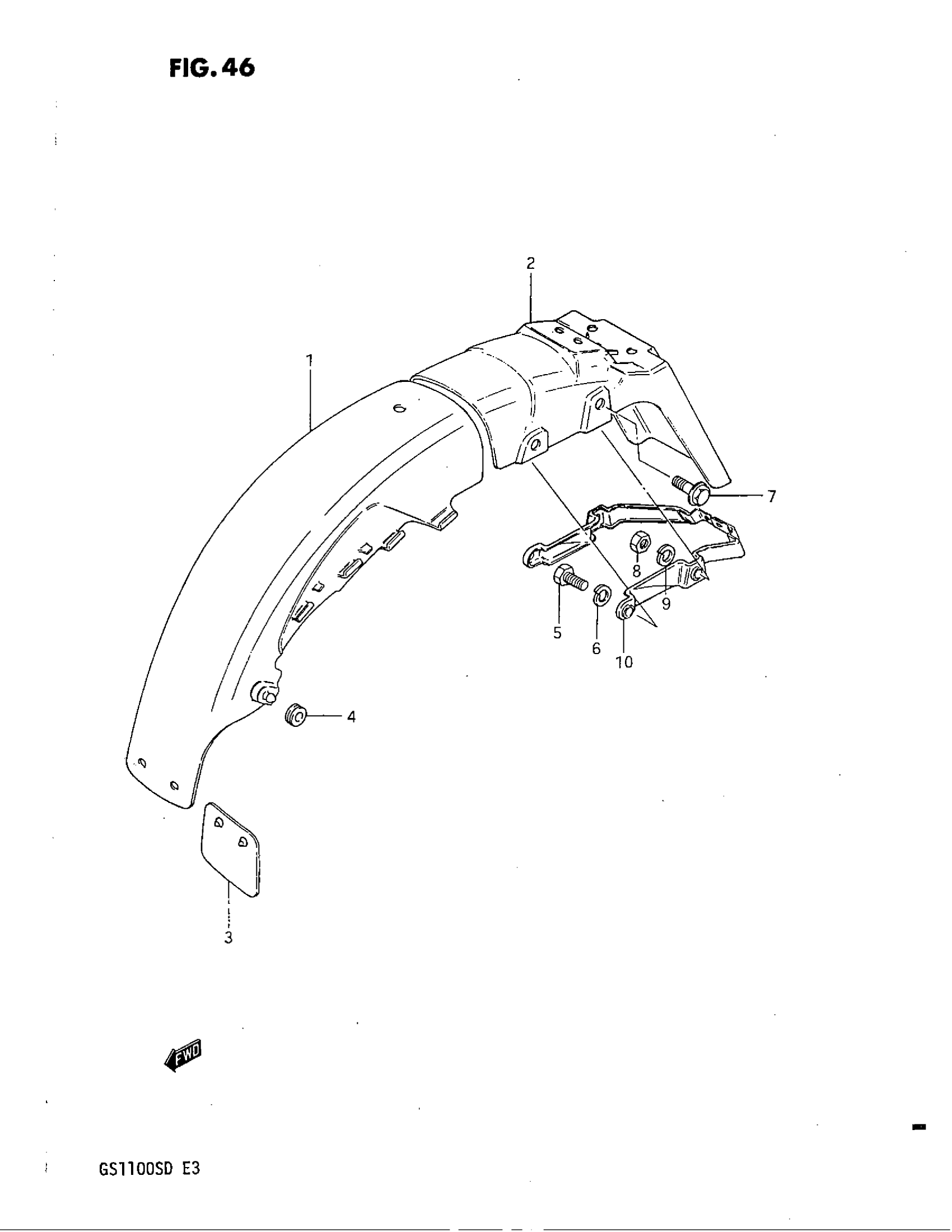

Suzuki GS1100S (1983) REAR FENDER Diagram

#

Description

Price

1

BODY,RR FENDER This part replaces 63112-49003.

63112-49004

Unavailable

2

FENDER, REAR

63113-49300

Unavailable

3

MUD GUARD, REAR FENDER

63411-31900

Unavailable

4

CUSHION (8X22X7) This part replaces 09320-08013.

09320-08509

$1.93

5

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97

6

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

7

BOLT This part replaces 01517-08258.

01550-08257

$2.81

8

NUT This part replaces 08310-12088.

08310-00087

$2.13

9

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

10

REINFORCEMENT, REAR FENDER

63120-49300

Unavailable
