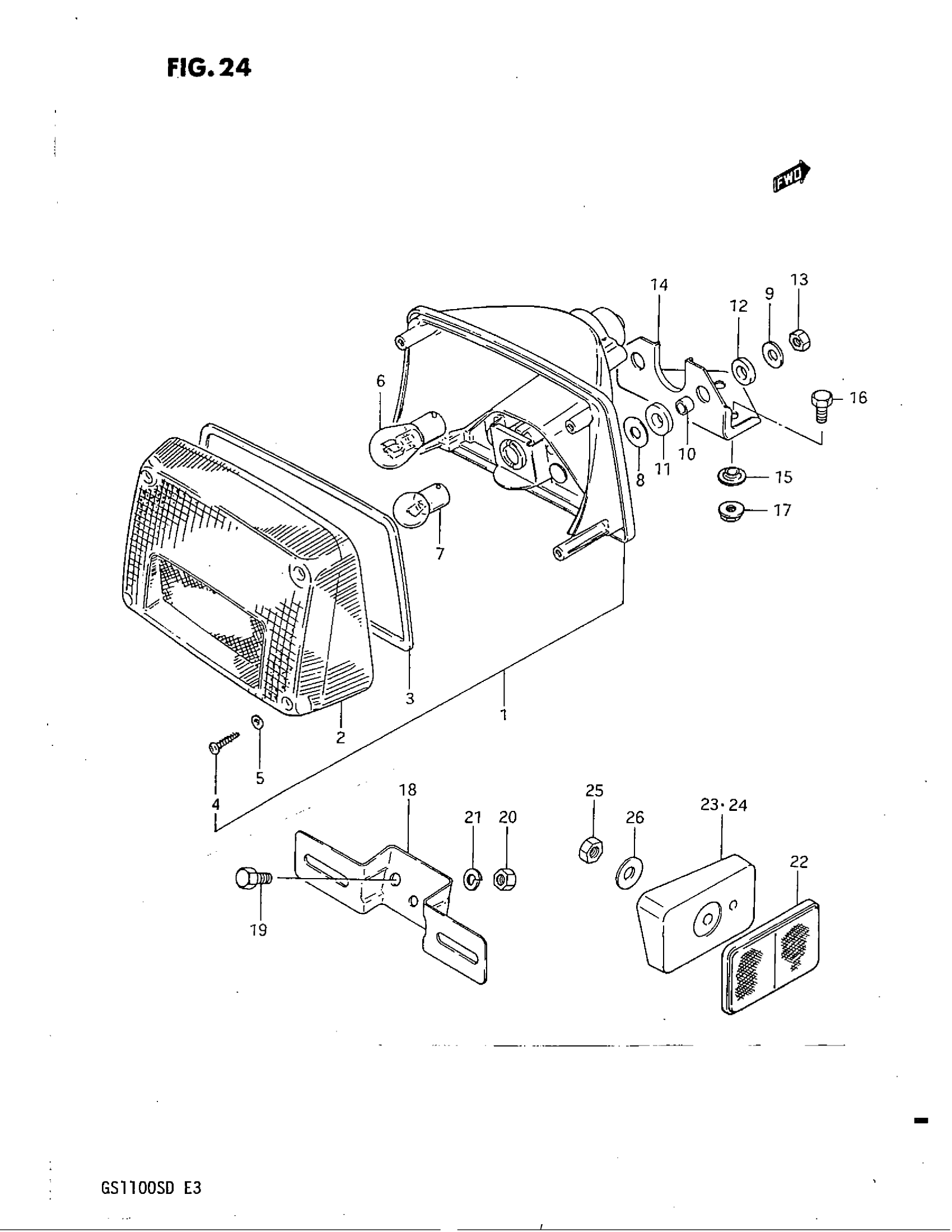

Suzuki GS1100S (1983) REAR COMBINATION LAMP Diagram

#

Description
Price

1

LAMP ASSY, TAIL | Includes Item(s) 2 - 7

35710-49330

Unavailable

2

LENS

35712-49031

$67.73

3

GASKET

35713-49030

Unavailable

4

SCREW This part replaces 35627-49030.

03511-0416A

$1.78

5

GASKET

35627-43010

$2.28

6

BULB (12V,32/3CP)

09471-12035

$4.49

7

BULB (12V, BW) This part replaces 09471-12037.

09471-12141

Unavailable

8

WASHER This part replaces 09160-06007.

09160-06084

$1.78

9

WASHER This part replaces 09160-06012.

09160-06054

$1.62

10

SPACER

09180-06038

$1.98

11

CUSHION

09320-09003

$2.23

12

CUSHION

09320-09004

$3.03

13

NUT This part replaces 08316-26068.

08316-2006A

$2.63

14

BRACKET, TAIL LAMP

35726-49330

Unavailable

15

WASHER This part replaces 09169-06028.

09169-06041

$2.20

16

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97

17

NUT This part replaces 08316-26068.

08316-2006A

$2.63

18

BRACKET, LICENSE PLATE

35927-49330

Unavailable

19

BOLT This part replaces 01517-06168.

01550-06167

$2.30

20

.NUT This part replaces 08310-11068.

08310-00067

$2.13

21

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

22

REFLEX REFLECTOR, REAR

35970-49330

Unavailable

23

SPACER, RH

35977-49330

Unavailable

24

SPACER, LH

35978-49330

Unavailable

25

NUT This part replaces 08310-11058.

08310-00057

$1.84

26

WASHER This part replaces 08322-21058.

08322-01057

$2.13
