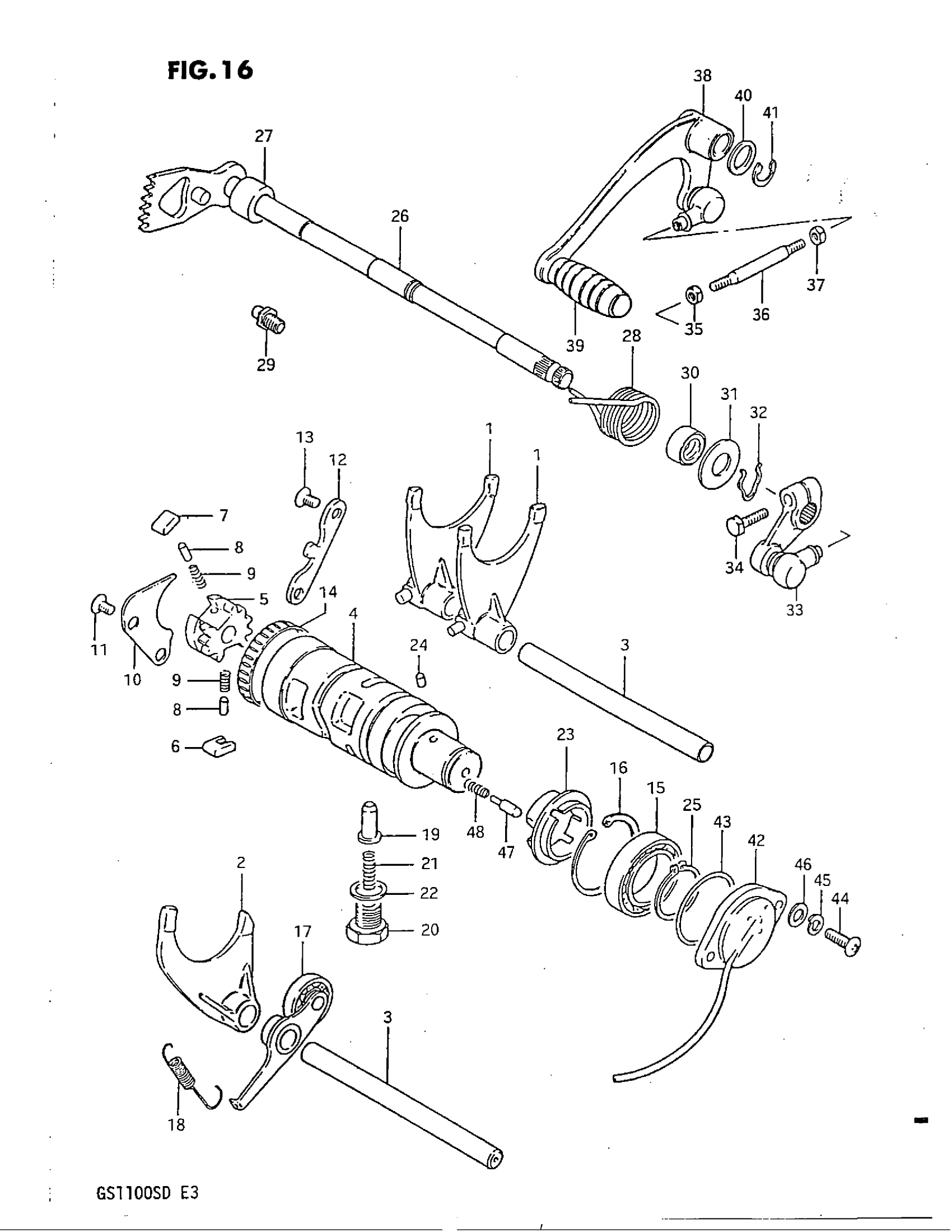

Suzuki GS1100S (1983) GEAR SHIFTING Diagram

#

Description
Price

1

FORK, SHIFTING

25211-49200

$87.25

2

FORK, SHIFTING

25231-49201

Unavailable

3

SHAFT, SHIFT CA This part replaces 25411-49200.

25411-33301

$18.75

4

CAM, GEAR SHIFTING

25310-49200

Unavailable

5

GEAR, GEAR SHIFT CAM DRIVEN This part replaces 25322-11000.

25322-31310

$26.93

6

PAWL, GEAR SHIFT NO.1 This part replaces 25323-11000.

25323-34201

$7.22

7

PAWL, GEAR SHIFT NO.2 This part replaces 25324-11000.

25324-34201

$7.22

8

PIN

09261-05003

$1.54

9

SPRING

09440-04003

$1.54

10

LIFTER, PAWL This part replaces 25331-49200.

25331-49201

Unavailable

11

SCREW This part replaces 02122-06128.

02122-06127

$1.84

12

GUIDE, CAM

25341-18000

Unavailable

13

SCREW This part replaces 02122-06128.

02122-06127

$1.84

14

BEARING, RH

09263-43001

$33.18

15

BEARING This part replaces 08110-69050.

08113-69050

$35.66

16

CIRCLIP This part replaces 08331-41428.

08331-41429

$2.41

17

STOPPER, CAM

25350-49201

Unavailable

18

SPRING

09443-08019

Unavailable

19

STOPPER, GEAR SHIFT CAM NO.2

25351-30010

$11.95

20

HOLDER, STOPPER

25354-30000

$9.17

21

SPRING

09440-06020

$1.79

22

GASKET

09168-14004

$1.83

23

PLATE, STOPPER

25381-49200

Unavailable

24

PIN This part replaces 06211-04063.

04221-04069

$2.12

25

CIRCLIP, REAR FINAL DRIVE This part replaces 08331-31258.

08331-31256

$1.49

26

SHAFT, GEAR SHIFTING

25510-45400

Unavailable

27

SPACER

09180-12068

$3.16

28

SPRING

09444-26017

$4.60

29

STOPPER, ARM This part replaces 25671-01000.

25671-01011

$4.48

30

OIL SEAL (12X22X9) This part replaces 09285-12002.

09285-12006

$6.32

31

WASHER (12.5X26X1.6) This part replaces 09160-12020.

09160-12089

$1.97

32

CIRCLIP This part replaces 09384-12001.

08331-3112A

$1.78

33

ARM,GEAR SHIFT This part replaces 25520-49310.

25520-19C03

$34.66

34

BOLT This part replaces 01107-06258.

01500-06257

$1.97

35

.NUT This part replaces 08310-11068.

08310-00067

$2.13

36

ROD This part replaces 25525-49300.

25525-21E50

$10.23

37

NUT, L

09140-06011

$1.49

38

LEVER ASSY,GEAR | Includes Item(s) 39 This part replaces 25600-49310.

25600-49321

Unavailable

39

COVER

25652-49300

$5.07

40

WASHER

09160-12011

$1.54

41

CIRCLIP This part replaces 08331-31128.

08331-3112A

$1.78

42

BODY, SHIFTING SWITCH

37720-09300

Unavailable

43

O RING

09280-36001

$3.29

44

SCREW This part replaces 02112-05128.

02112-05127

$1.97

45

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

46

WASHER This part replaces 08322-21058.

08322-01057

$2.13

47

CONTACT

09209-05011

$2.20

48

SPRING

09440-04010

$1.54
