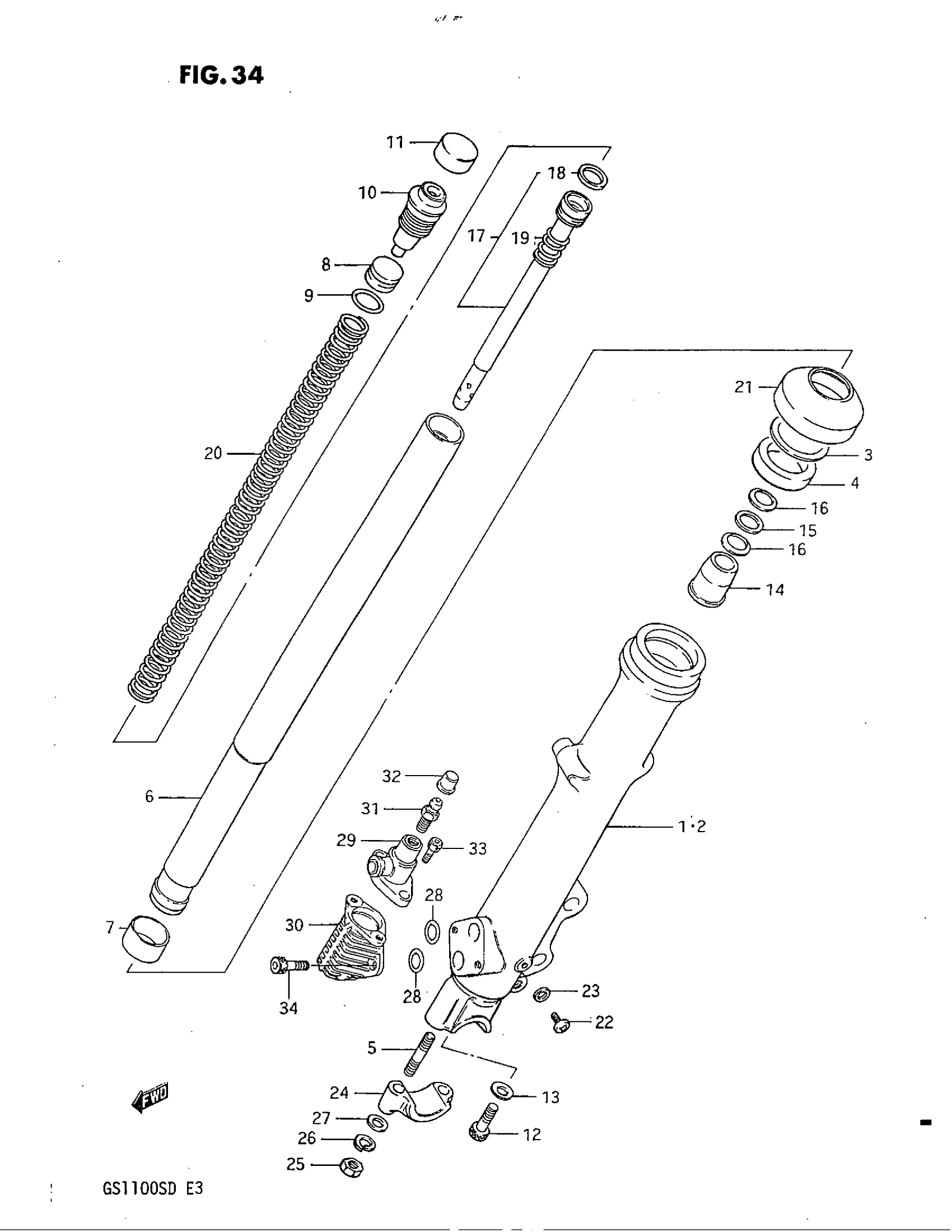

Suzuki GS1100S (1983) FRONT DAMPER Diagram

#

Description
Price

DAMPER ASSY, RH

51103-49340

Unavailable

DAMPER ASSY, LH | Includes Item(s) 1 - 34

51104-49340

Unavailable

1

NO DESCRIPTION AVAILABLE This part replaces 51130-49330-87U.

51130-49331-15T

Unavailable

2

NO DESCRIPTION AVAILABLE This part replaces 51140-49330-87U.

51140-49331-15T

Unavailable

3

SNAP RING

51156-40301

$5.05

4

SEAL, OIL This part replaces 51153-49001.

51153-08C20

$20.47

5

BOLT,STUD This part replaces 01411-08308.

01411-0830A

$2.28

6

INNER TUBE

51110-49340

Unavailable

7

PISTON

51121-49200

$19.48

8

PISTON, FREE

51172-45110

Unavailable

9

O RING,FORK SPR This part replaces 51117-45110.

09280-22011

$3.41

10

CAP

51351-49200

Unavailable

11

CAP, RUBBER

51189-49300

$9.48

12

BOLT

51147-16510

$4.34

13

GASKET

51148-41310

$2.26

14

PIECE OIL LOCK

51195-45420

Unavailable

15

WASHER

51123-45420

$3.65

16

LEAF SPRING

51125-45420

$3.65

17

CYLINDER

51146-49340

Unavailable

18

PISTON RING

51196-49000

$7.78

19

SPRING, REACTION

51177-49000

Unavailable

20

SPRING

51171-49340

Unavailable

21

DUST SEAL

51173-49002

$16.96

22

SCREW This part replaces 02112-04088.

02112-04087

$1.49

23

GASKET

51183-03010

$2.07

24

HOLDER, AXLE

51132-49000

Unavailable

25

NUT This part replaces 08310-11085.

08310-0008A

$1.84

26

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

27

WASHER This part replaces 08322-21088.

08322-01087

$2.13

28

O RING, OIL GALLERY This part replaces 51799-44130.

09280-12012

$4.64

29

MODULATOR PLUNGER SET

51790-11330

Unavailable

30

MODULATOR VALVE SET

51770-45920

Unavailable

31

BREATHER, AIR

51778-44130

Unavailable

32

CAP, BLEEDER This part replaces 51779-44130.

55156-66310

$5.17

33

BOLT, MODULATOR (6X10)

51753-11300

Unavailable

34

BOLT This part replaces 51796-44130.

07130-06167

$3.16
