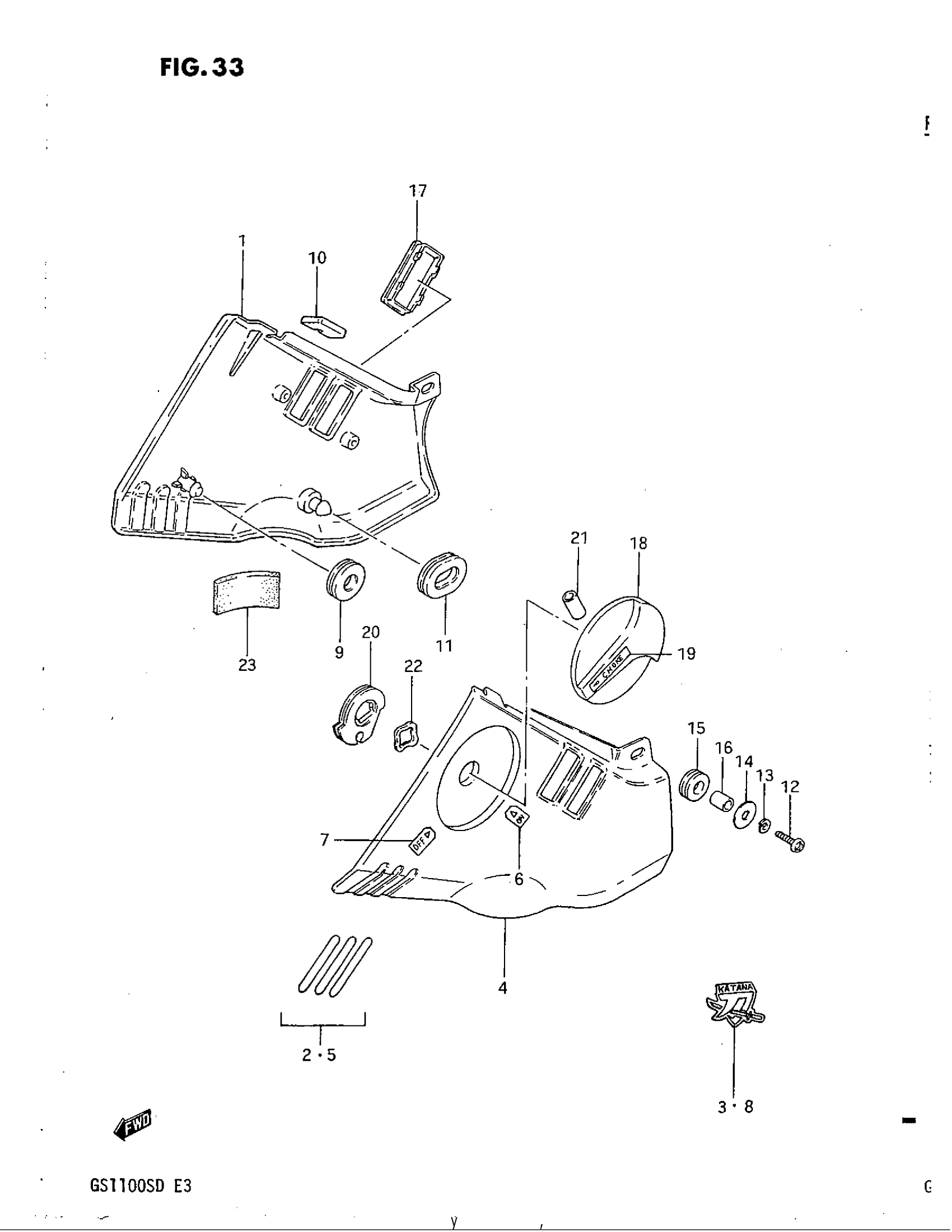

Suzuki GS1100S (1983) FRAME COVER Diagram

#

Description
Price

1

COVER, FRAME RH (SILVER) | Includes Item(s) 2

47101-49820-13L

Unavailable

2

LABEL,FRAME COV This part replaces 68134-49300.

68134-49300-291

$4.30

3

EMBLEM,FRAME CO This part replaces 68131-34320-67T.

68131-34321-L96

$7.53

4

COVER, FRAME LH (SILVER) | Includes Item(s) 5 - 7

47201-49820-13L

Unavailable

5

LABEL,FRAME COV This part replaces 68144-49300.

68144-49300-291

$4.30

6

LABEL, CHOKE "ON"

68224-49300

$1.62

7

LABEL, CHOKE "OFF"

68225-49300

$1.63

8

EMBLEM,FRAME CO This part replaces 68131-34320-67T.

68131-34321-L96

$7.53

9

CUSHION, FRONT NO.1

09320-08018

$3.04

10

CUSHION, FRONT NO.2

09329-02002

$2.40

11

CUSHION, REAR

09329-08003

$3.16

12

SCREW This part replaces 02112-06168.

02112-06167

$1.49

13

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

14

WASHER (6.5X20X1.6) This part replaces 09160-06020.

09160-06066

$1.89

15

CUSHION (8.5X20X8) This part replaces 09320-08007.

09320-08510

$1.97

16

SPACER

09180-06038

$1.98

17

CAP, SWITCH HOLE

47129-49300

$3.72

18

LEVER,CHOKE CAB This part replaces 58481-49301-13L.

58481-49302-13L

$51.80

19

LABEL, CHOKE

68223-49300

$1.95

20

HOLDER, STARTER

58482-49301

$7.22

21

TUBE, STARTER LEVER

58483-49300

$1.65

22

WASHER, WAVE

09164-16003

$2.45

23

RUBBER

78821-67000

$3.37
