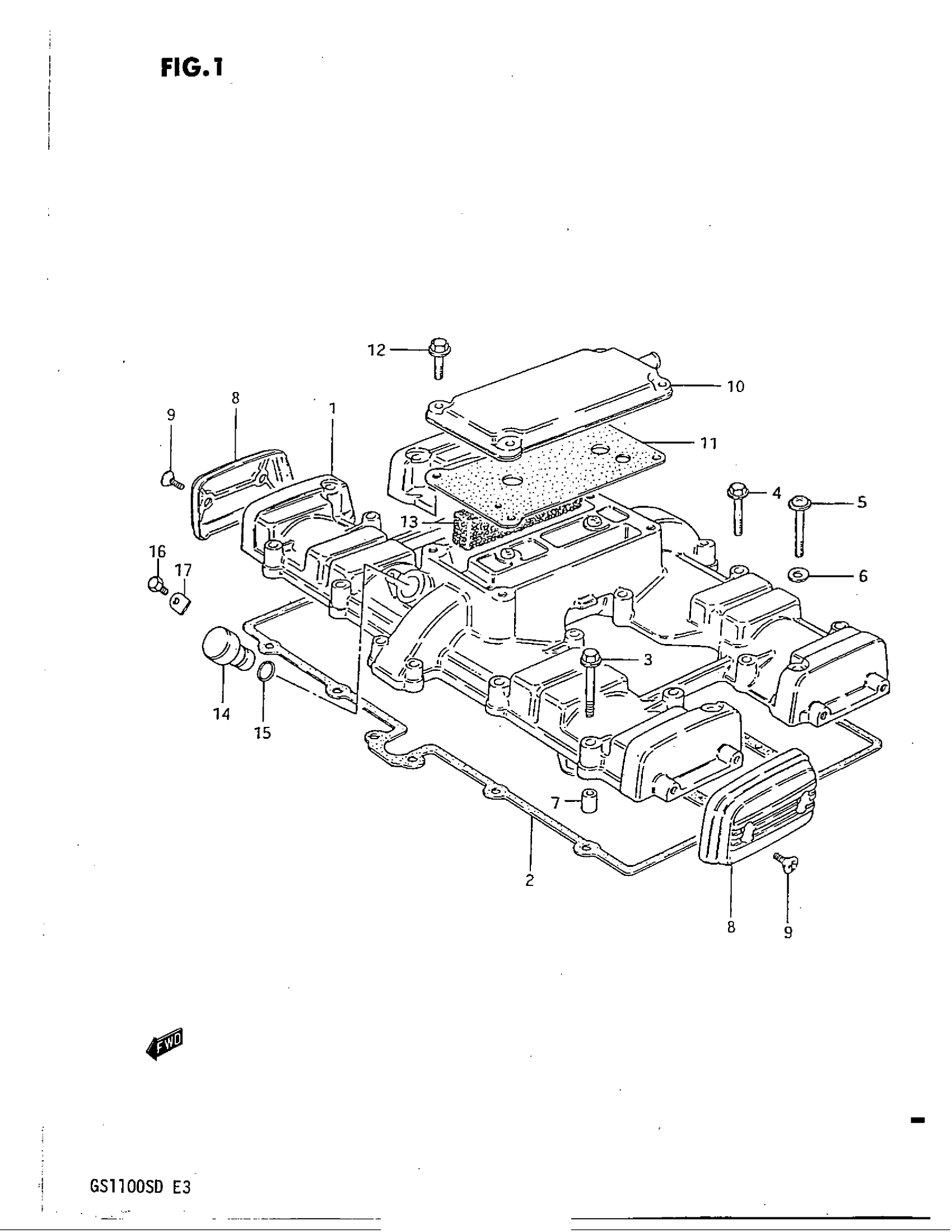

Suzuki GS1100S (1983) CYLINDER HEAD COVER Diagram

#

Description
Price

1

COVER, CYLINDER HEAD

11171-45440

Unavailable

2

GASKET,CYLINDER This part replaces 11173-49221.

11173-49224-H17

$36.75

3

BOLT This part replaces 01517-06405.

01550-0640A

$2.42

4

BOLT This part replaces 01517-06355.

01550-0635A

$2.32

5

SCREW This part replaces 02152-06405.

02112-0640A

$1.96

6

GASKET (5.8X13X1.2) This part replaces 09168-06009.

09168-06023

$2.35

7

PIN

09206-08001

$1.78

8

CAP, CYLINDER HEAD COVER

11174-49221

$22.43

9

SCREW

09127-05015

$1.65

10

COVER, BREATHER This part replaces 11176-45411.

11176-45402

Unavailable

11

GASKET,BREATHER This part replaces 11177-49210.

11177-49210-H17

$10.92

12

SEPARATOR,HD CV This part replaces 11186-49200.

11186-49201

Unavailable

13

BOLT This part replaces 01517-06205.

01550-0620A

$1.97

14

PLUG, TACHO. HOLE

26442-45000

$19.72

15

SEAL BAND

26451-45000

$5.05

16

SCREW

09128-05101

$1.49

17

PLATE

26449-33000

$4.35
