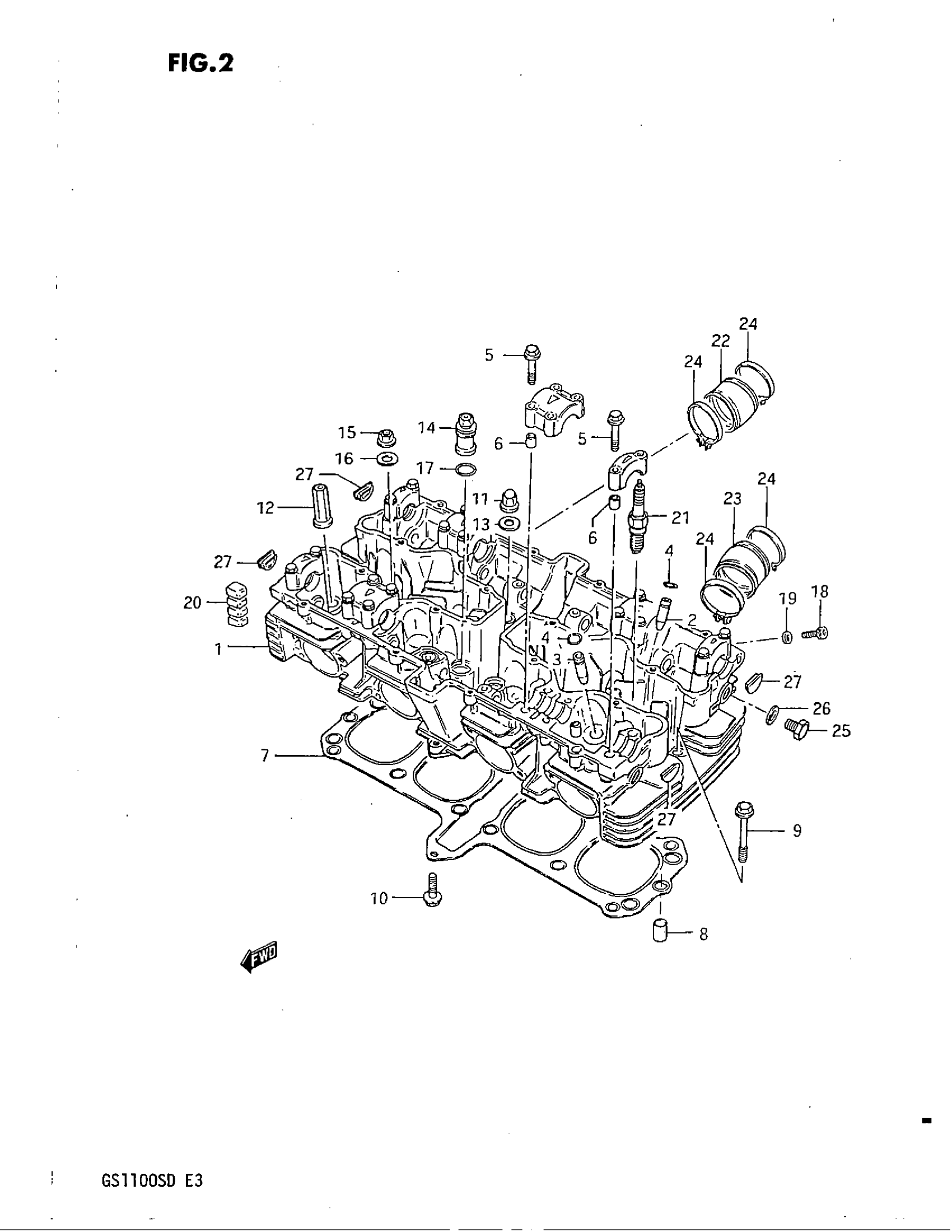

Suzuki GS1100S (1983) CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD SET | Includes Item(s) 2 - 6

11100-49260

Unavailable

2

GUIDE, INTAKE VALVE

11115-49290

Unavailable

3

GUIDE, EXHAUST VALVE

11115-49290

Unavailable

4

.RING (10X85)

09381-10004

$1.50

5

BOLT (6X39)

09103-06026

$1.98

6

PIN

09206-08001

$1.78

7

GASKET, CYLINDER HEAD This part replaces 11141-49230.

11141-00A03

$145.53

8

PIN

04211-11189

$1.78

9

BOLT This part replaces 01517-06555.

01550-0655B

$3.30

10

BOLT This part replaces 01517-06305.

01550-0630A

$2.32

11

NUT

09159-10026

$6.20

12

NUT

09159-10029

Unavailable

13

GASKET

09168-10017

$3.04

14

SEAL NUT

11145-49200

Unavailable

15

NUT, WHEEL SET This part replaces 08316-16108.

08316-10107

$2.39

16

WASHER

09160-10039

$2.26

17

O RING

09280-17002

$5.11

18

BOLT, PICK UP & CLAMP This part replaces 09106-05006.

07130-0510B

$2.62

19

GASKET

09168-05010

$1.71

20

RUBBER PAD (N9->4) This part replaces 11251-48000.

11251-36500

$6.52

21

SPARK PLUG (DR8EA) This part replaces 09482-00144.

09482-00399

$3.32

21

SPARK PLUG (X24ESR-U) This part replaces 09482-00145.

09482-00223

$5.18

22

PIPE,INTAKE,R This part replaces 13111-49200.

13111-49201

$14.25

23

PIPE,INTAKE,L This part replaces 13121-49200.

13121-49201

$14.25

24

CLAMP

09402-52306

$4.91

25

PLUG This part replaces 09247-14012.

09247-14026

$3.76

26

GASKET

09168-14004

$1.83

27

PLUG, CYLINDER HEAD

09241-23002

$6.17
