1983 Suzuki GS1100S Crankshaft Diagram

← All diagrams

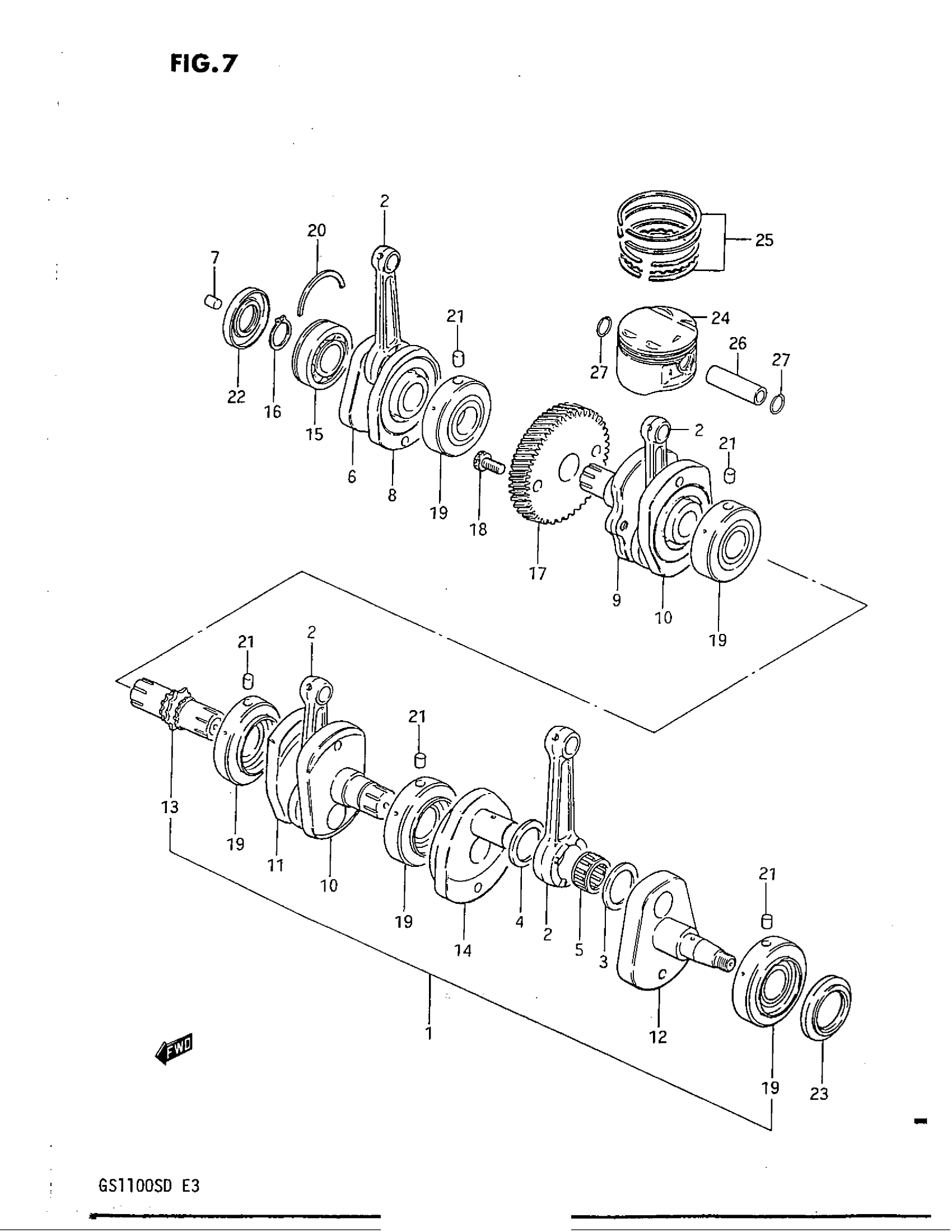

Find the part on the Crankshaft diagram for your 1983 Suzuki GS1100S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1983 Suzuki GS1100S Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 19 This part replaces 12200-49314.

12200-49319

1
Out of stock

2

ROD, CONNECTING

12161-49302

4
Out of stock

3

WASHER

09160-31002

4
Out of stock

4

WASHER

09160-31003

4
Out of stock

5

BEARING

09263-31004

4
Out of stock

6

CRANKSHAFT, RH

12220-49202

1
Out of stock

7

PIN (4X13.8)

04221-04089

1
Out of stock

8

NO DESCRIPTION AVAILABLE This part replaces 12230-49201.

12230-49202

1
Out of stock

9

NO DESCRIPTION AVAILABLE This part replaces 12241-49202.

12241-49203

1
Out of stock

10

NO DESCRIPTION AVAILABLE This part replaces 12271-49202.

12271-49203

1
Out of stock

11

NO DESCRIPTION AVAILABLE This part replaces 12250-49201.

12250-49202

2
Out of stock

12

CRANKSHAFT, LH

12261-49302

1
Out of stock

13

SHAFT, CHAIN DRIVE (NT:15)

12281-49200

1
Out of stock

14

NO DESCRIPTION AVAILABLE This part replaces 12290-49201.

12290-49202

1
Out of stock

15

BEARING, RH

09262-30033

1
Out of stock

16

CIRCLIP This part replaces 08331-11308.

08331-31309

1
Out of stock

17

NO DESCRIPTION AVAILABLE This part replaces 21111-49002.

21111-49004

1
Out of stock

18

2

$3.13

In stock

19

BEARING This part replaces 09264-32005.

09264-32009

5
Out of stock

20

C RING, BEARING RH

09390-72004

1
Out of stock

21

PIN

04221-07129

5
Out of stock

22

OIL SEAL, RH

09283-30021

1
Out of stock

23

OIL SEAL, LH

09289-48002

1
Out of stock

24

PISTON This part replaces 12111-49221.

12111-49222

4
Out of stock

24

PISTON SET,OS: | OPT This part replaces 12111-49221-050.

12100-49221-050

4
Out of stock

24

NO DESCRIPTION AVAILABLE | OPT This part replaces 12111-49221-100.

12100-49221-100

4
Out of stock

25

RING SET, PISTON This part replaces 12140-49220.

12140-49270

4
Out of stock

25

RING SET,PISTON | OPT This part replaces 12140-49220-050.

12140-49270-050

4
Out of stock

25

RING SET, PISTON (OS:1.0) | OPT This part replaces 12140-49220-100.

12140-49221-100

4
Out of stock

26

PIN, PISTON This part replaces 12151-49202.

12151-15501

4
Out of stock

27

CIRCLIP

09381-18002

8
Out of stock
