1983 Suzuki GS1100S Crankcase Cover Diagram

← All diagrams

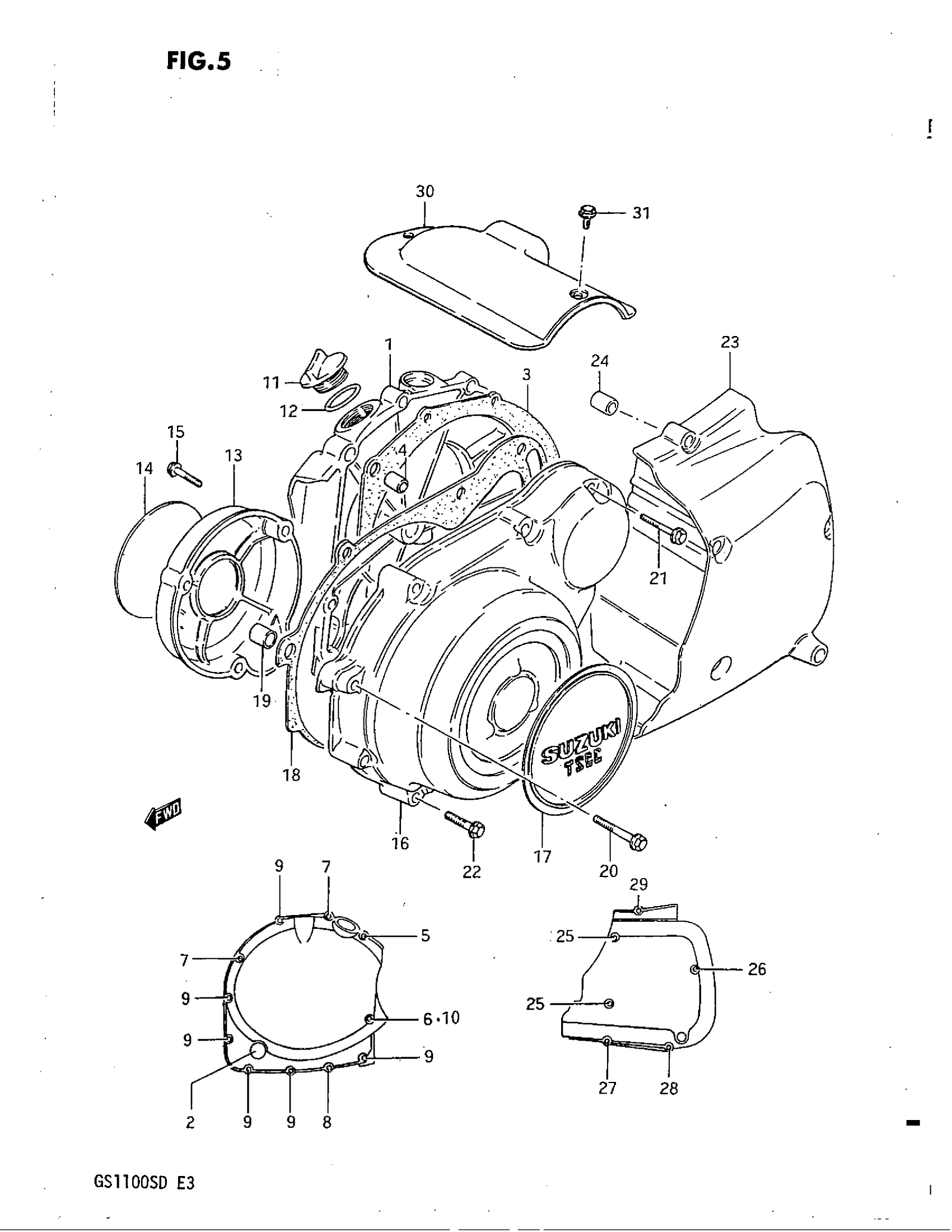

Find the part on the Crankcase Cover diagram for your 1983 Suzuki GS1100S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1983 Suzuki GS1100S Crankcase Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, CLUTCH | Includes Item(s) 2

11340-49220

1
Out of stock

2

.LENS, OIL LEVEL CHECK

11971-45010

1
Out of stock

3

GASKET,CLUTCH C This part replaces 11482-49201.

11482-49202-H17

1
Out of stock

4

PIN

04211-09129

2
Out of stock

5

BOLT This part replaces 01547-06405.

01547-0640B

1
Out of stock

6

BOLT, WATER PUMP This part replaces 01547-06355.

01547-0635B

1
Out of stock

7

BOLT This part replaces 01547-06305.

01547-06307

2
Out of stock

8

BOLT (6x25)

01547-06255

—
Out of stock

9

..BOLT This part replaces 01547-06205.

01547-0620B

6
Out of stock

10

GASKET (5.8X13X1.2) This part replaces 09168-06009.

09168-06023

1
Out of stock

11

CAP, OIL FILLER This part replaces 09259-30001.

09200-30810

1
Out of stock

12

O RING

09280-32005

1
Out of stock

13

COVER, CONTACT BREAKER

11381-45412

1
Out of stock

14

EMBLEM

68235-49500

1
Out of stock

15

BOLT This part replaces 01547-05308.

01547-05307

3
Out of stock

16

COVER, GENARATOR This part replaces 11351-49310.

11351-49300

1
Out of stock

17

EMBLEM

68233-49500

1
Out of stock

18

GASKET,MAGNETO This part replaces 11483-49200.

11483-49210

1
Out of stock

19

PIN This part replaces 09206-13001.

04211-13189

1
Out of stock

20

BOLT This part replaces 01547-06455.

01547-0645B

1
Out of stock

21

BOLT This part replaces 01547-06405.

01547-0640B

1
Out of stock

22

BOLT, WATER PUMP This part replaces 01547-06355.

01547-0635B

7
Out of stock

22

BOLT This part replaces 01547-06305.

01547-06307

1
Out of stock

23

COVER, ENGINE SPROCKET

11360-45411

1
Out of stock

24

PIN

04211-09129

1
Out of stock

25

.BOLT This part replaces 01547-06955.

01547-0695B

2
Out of stock

26

BOLT, CRANKCASE (6X85) This part replaces 01547-06855.

01547-0685B

1
Out of stock

27

BOLT This part replaces 01547-06705.

01547-0670B

1
Out of stock

28

BOLT This part replaces 01547-06555.

01547-0655B

1
Out of stock

29

BOLT This part replaces 01547-06305.

01547-06307

1
Out of stock

30

COVER, STARTER MOTOR

11382-45410

1
Out of stock

31

BOLT This part replaces 01547-05088.

01547-05087

2
Out of stock
