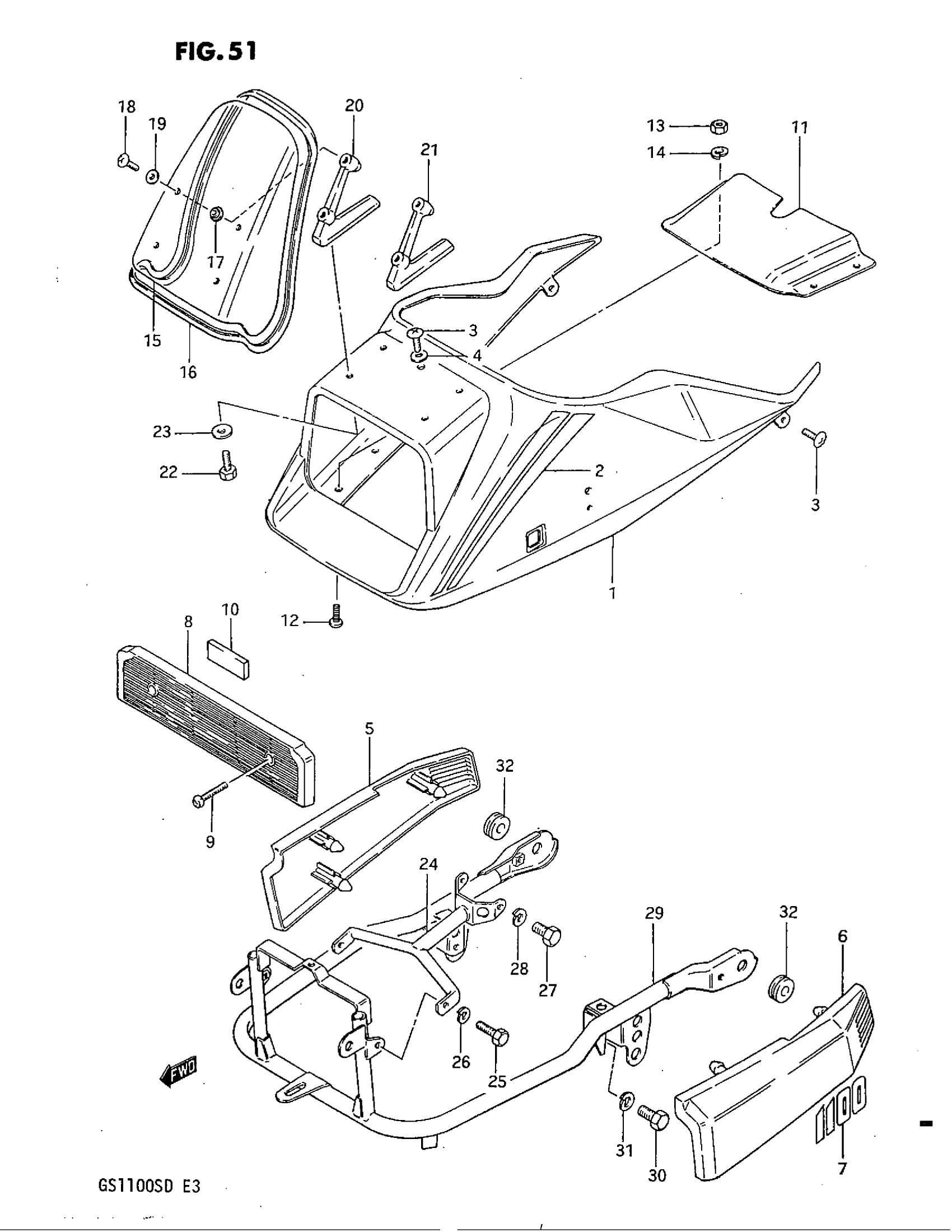

Suzuki GS1100S (1983) COWLING Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 This part replaces 94400-49870-87A.

94411-45500-13L

Unavailable

2

TAPE SET

68190-49300-75G

Unavailable

3

SCREW This part replaces 02142-06125.

02142-0612A

$1.49

4

WASHER This part replaces 09161-07003.

09161-06007

Unavailable

5

COVER,COWLING R This part replaces 94430-49810-13L.

94431-49301-13L

$62.28

6

COVER,COWLING,L | Includes Item(s) 7 This part replaces 94440-49810-13L.

94441-49303-13L

$74.28

7

NO DESCRIPTION AVAILABLE This part replaces 68131-49320.

68131-49320-07G

Unavailable

8

COVER, LOWER

94445-49300

Unavailable

9

SCREW This part replaces 02142-06308.

02142-06307

$1.57

10

CUSHION, FRONT NO.2 This part replaces 94446-49300.

47117-46400

$2.42

11

COVER, LOWER FRONT

94412-49300

Unavailable

12

SCREW This part replaces 02142-06125.

02142-0612A

$1.49

13

.NUT This part replaces 08310-11068.

08310-00067

$2.13

14

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

15

WINDOW This part replaces 94611-49320.

94611-49312

Unavailable

16

MOLDING

94631-49300

$18.86

17

CUSHION(5.5X11X This part replaces 09320-05008.

09320-05021

$2.54

18

SCREW This part replaces 02142-05105.

02142-0510B

$1.78

19

WASHER (5.2X11.0X1.0)

09161-05010

$2.45

20

BRACE, WINDOW RH

94621-45500

Unavailable

21

BRACE, WINDOW LH

94625-45500

Unavailable

22

BOLT This part replaces 01107-06128.

01500-06127

$1.97

23

WASHER

09160-06019

$1.49

24

BRACE, FRONT

94510-49302

Unavailable

25

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97

26

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

27

PLUG, DRAIN This part replaces 01107-08168.

01500-0816B

$2.50

28

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

29

BRACE, REAR

94530-49301

Unavailable

30

BOLT This part replaces 01107-08128.

01500-08127

$2.62

31

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

32

CUSHION

09320-08018

$3.04
