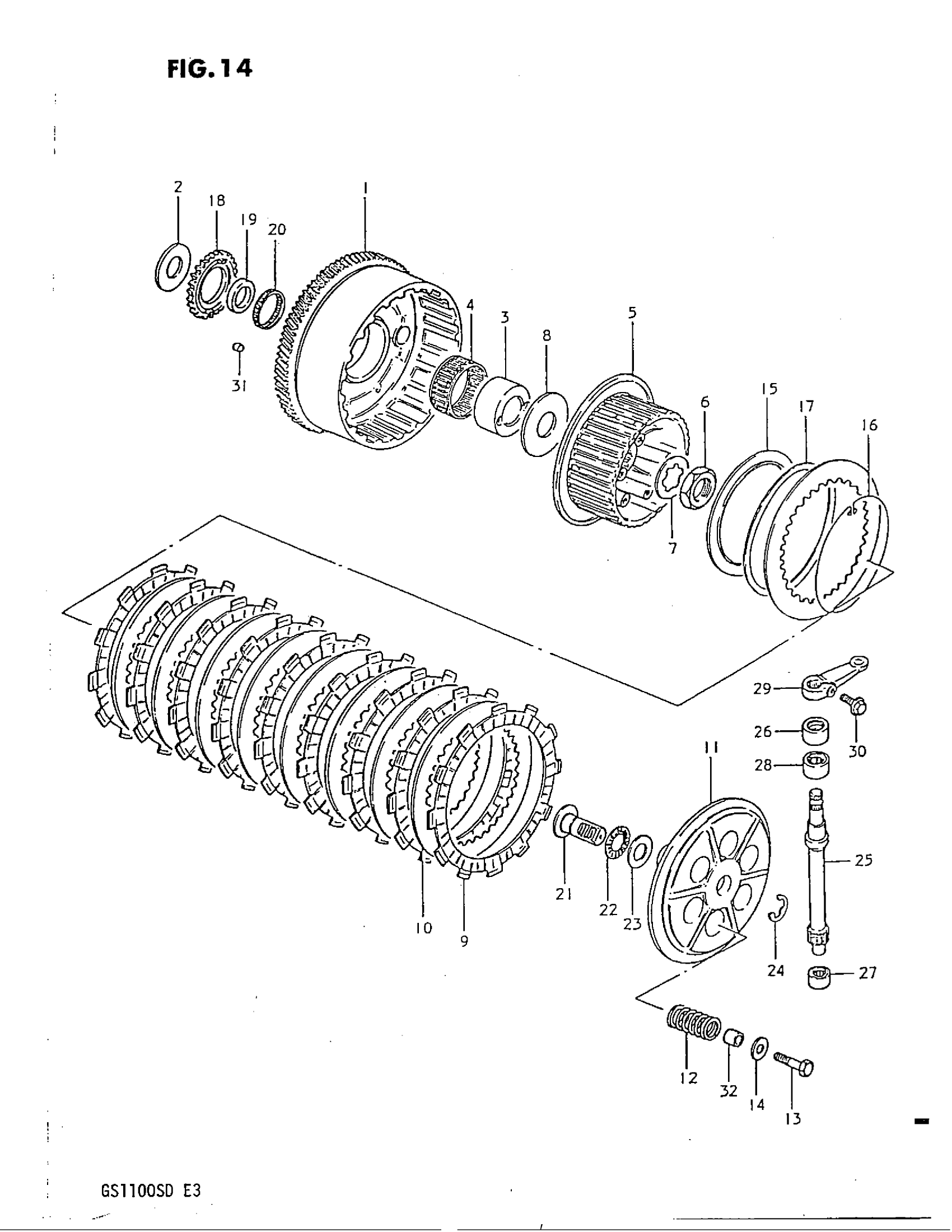

Suzuki GS1100S (1983) CLUTCH Diagram

#

Description
Price

1

GEAR,PRIMARY DR | NT:87 This part replaces 21200-49204.

21200-49214

Unavailable

2

WASHER This part replaces 09160-25023.

09160-25055

$8.62

3

SPACER

21251-49200

Unavailable

4

BEARING This part replaces 09263-51001.

09263-51002

$44.23

5

HUB, SLEEVE This part replaces 21411-49203.

21410-00A00

$133.25

6

NUT, PIVOT RH This part replaces 09140-24004.

09140-24007

$3.89

7

WASHER

09167-25007

Unavailable

8

WASHER

09160-25022

Unavailable

9

PLATE, DRIVE

21441-49210

$37.20

10

PLATE, DRIVEN

21451-49200

$9.79

11

DISK, PRESSURE

21462-49201

Unavailable

12

SPRING

09440-19014

$5.52

13

BOLT, REAR This part replaces 01107-06308.

01500-06307

$2.48

14

WASHER (6.5X20X1.6) This part replaces 09160-06020.

09160-06066

$1.89

15

SEAT, WAVE WASHER

21471-49100

$9.78

16

RING, STOPPER

21481-45100

$5.80

17

WAVE WASHER

09164-00003

$12.67

18

GEAR, OIL PUMP DRIVE (NT:34) This part replaces 16321-49990.

16321-49000

Unavailable

19

SPACER

16325-45001

Unavailable

20

BEARING

09263-36002

Unavailable

21

RACK, RELEASE This part replaces 23165-49200.

23165-49201

Unavailable

22

BEARING

09263-15003

$8.29

23

WASHER, CLUTCH PUSH This part replaces 09160-15015.

09160-15045

$3.89

24

E-RING This part replaces 08332-11128.

08332-1112A

$2.15

25

PINION, RELEASE

23261-45400

Unavailable

26

OIL SEAL (12X22X9) This part replaces 09285-12002.

09285-12006

$6.32

27

BEARING

09263-12014

$12.36

28

BEARING

09263-15012

$15.48

29

ARM, RELEASE

23271-45400

Unavailable

30

BOLT This part replaces 01547-06208.

01547-06207

$2.01

31

CUSHION,PRIMARY This part replaces 21215-49000.

21215-49001

$2.81

32

SPACER (6.2X12X14) This part replaces 09180-06088.

09180-06174

$5.57
