1983 Suzuki GS1100GL Wiring Harness Diagram

← All diagrams

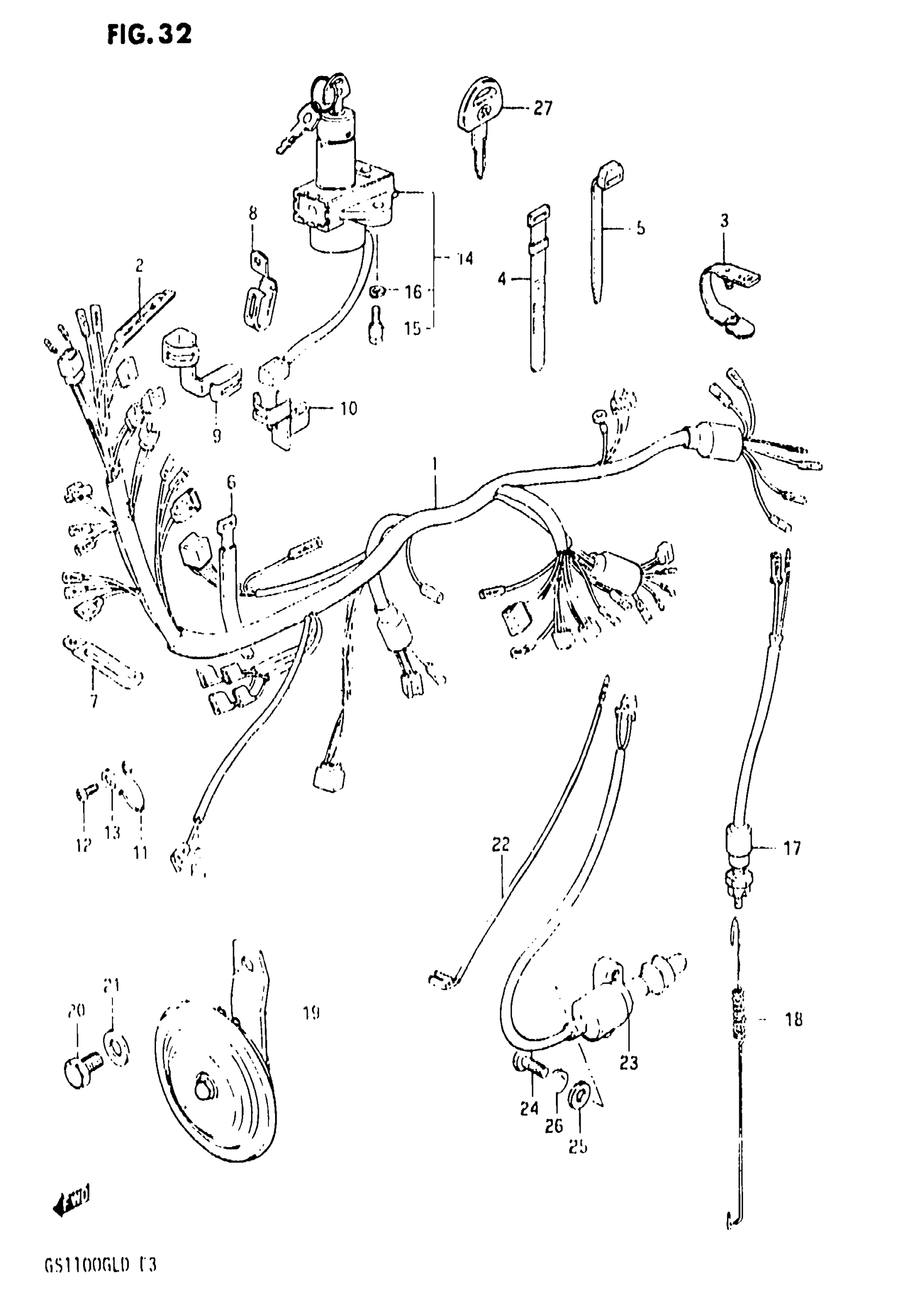

Find the part on the Wiring Harness diagram for your 1983 Suzuki GS1100GL, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1983 Suzuki GS1100GL Wiring Harness Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

WIRING HARNESS | MODEL Z

36610-49140

1
Out of stock

1

WIRING HARNESS | MODEL D; Includes Item(s) 2

36610-49161

1
Out of stock

2

DIODE

36611-02100

1
Out of stock

3

CLAMP

09407-05403

1
Out of stock

4

CLAMP (L:150)

09407-14401

1
Out of stock

5

CLAMP

09407-14403

1
Out of stock

6

CLAMP This part replaces 09407-18301.

09407-18302

2
Out of stock

7

CLAMP(L:80) This part replaces 09404-06414.

09404-06036

1
Out of stock

7

CLAMP(L:80) This part replaces 09404-06415.

09404-06036

1
Out of stock

8

CLAMP, UPPER

36651-34410

1
Out of stock

9

CLAMP, RH

36651-34410

1
Out of stock

10

CLAMP, LH

36651-34420

1
Out of stock

11

CLIP, WIRING HARNESS This part replaces 36619-44001.

36619-44002

1
Out of stock

12

SCREW This part replaces 02112-06128.

02112-06127

1
Out of stock

13

WASHER This part replaces 08322-21068.

08322-01067

1
Out of stock

14

SWITCH ASSY, IGNITION | Includes Item(s) 15 - 16

37100-45301

1
Out of stock

15

BOLT This part replaces 37152-47010.

07130-0616B

2
Out of stock

16

2

$2.28

In stock

17

SWITCH, REAR BRAKE LAMP This part replaces 37740-04571.

37740-48071

1
Out of stock

18

SPRING This part replaces 09443-06018.

09443-06018-XC0

1
Out of stock

19

HORN ASSY

38500-34230

1
Out of stock

20

BOLT This part replaces 01107-08128.

01500-08127

1
Out of stock

21

WASHER This part replaces 08322-11088.

08322-01087

1
Out of stock

22

LEAD WIRE, PRESSURE SWITCH This part replaces 36853-45000.

36853-45001

1
Out of stock

23

SWITCH, SIDE STAND WARNING This part replaces 37840-49400.

37840-14A01

1
Out of stock

24

BOLT This part replaces 01107-05168.

01500-0516B

2
Out of stock

25

WASHER This part replaces 08322-21058.

08322-01057

2
Out of stock

26

LOCK WASHER This part replaces 08321-21058.

08321-0105A

2
Out of stock

27

KEY, BLANK | OPT

37146-47010

1
Out of stock
