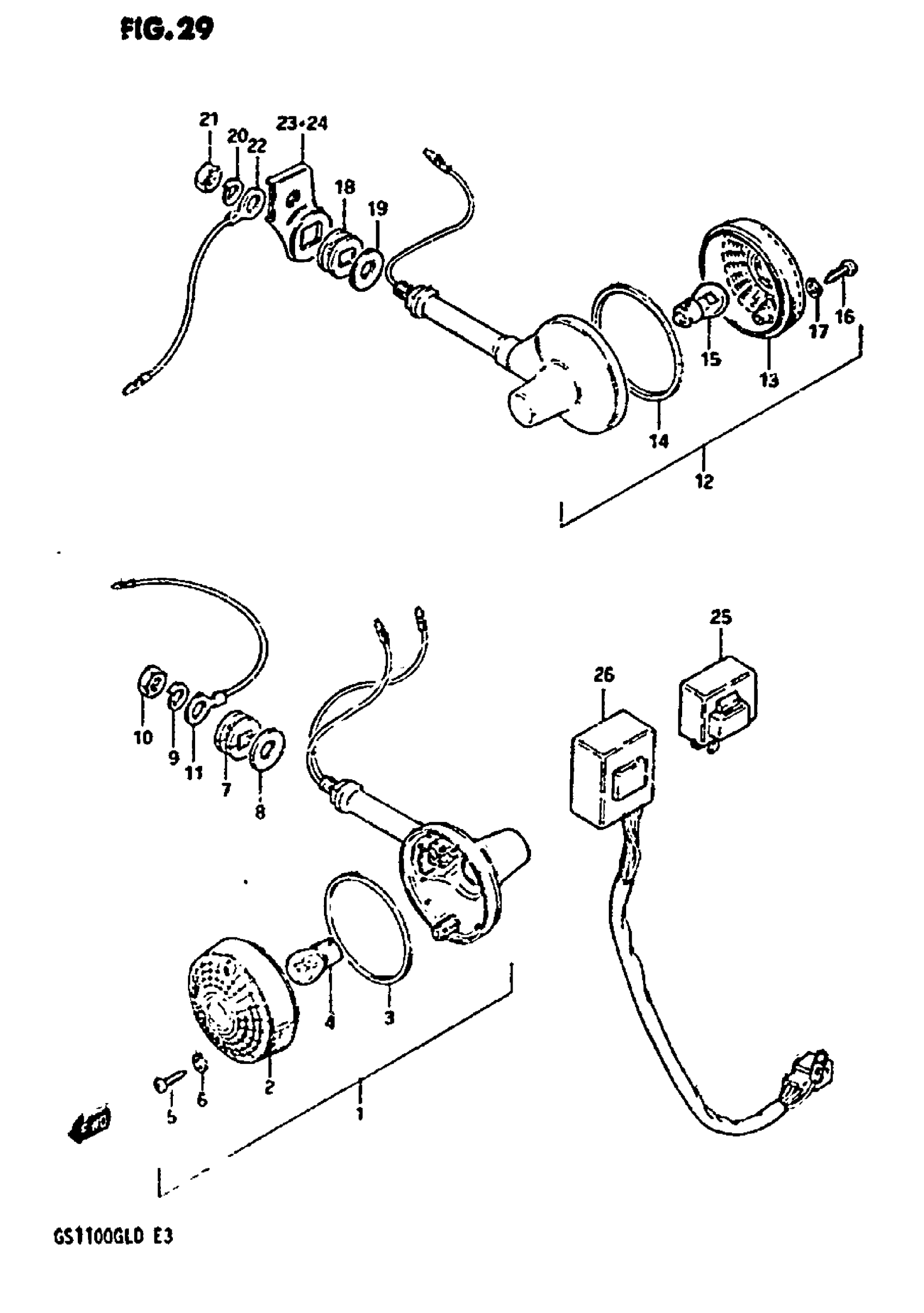

Suzuki GS1100GL (1983) TURN SIGNAL LAMP (MODEL Z) Diagram

#

Description
Price

1

LAMP, FRONT TURN SIGNAL | Includes Item(s) 2 - 6

35601-49110

Unavailable

2

LENS

35612-49110

Unavailable

3

GASKET

35613-28620

$4.55

4

BULB (12V,23/8W)

09471-12035

$4.49

5

SCREW This part replaces 03211-04208.

03211-04207

$1.49

6

GASKET

35627-43010

$2.28

7

RR TURN SIG CUS This part replaces 35690-32200.

35690-32201

$6.37

8

WASHER, UPPER, OUTER This part replaces 09160-10006.

09160-10501

$2.33

9

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

10

NUT This part replaces 08310-12108.

08310-00107

$2.19

11

LEAD WIRE, EARTH

36660-33000

$4.52

12

LAMP, REAR TURN SIGNAL | Includes Item(s) 13 - 17

35603-49110

Unavailable

13

LENS

35612-28620

$8.98

14

GASKET

35613-28620

$4.55

15

BULB (12V,23W)

09471-12006

$3.98

16

SCREW This part replaces 03211-04208.

03211-04207

$1.49

17

GASKET

35627-43010

$2.28

18

RR TURN SIG CUS This part replaces 35690-32200.

35690-32201

$6.37

19

WASHER, UPPER, OUTER This part replaces 09160-10006.

09160-10501

$2.33

20

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

21

NUT This part replaces 08310-12108.

08310-00107

$2.19

22

LEAD WIRE, EARTH

36862-44000

$5.50

23

BRACKET, REAR RH This part replaces 35620-45301.

35620-45302

Unavailable

24

BRACKET, REAR LH This part replaces 35640-45301.

35640-45302

Unavailable

25

RFLAY, TURN SIGNAL

38610-49231

Unavailable

26

UNIT,TURN SIG C This part replaces 38830-49201.

38830-49X00

Unavailable
