1983 Suzuki GS1100GL Steering Stem Diagram

← All diagrams

Find the part on the Steering Stem diagram for your 1983 Suzuki GS1100GL, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

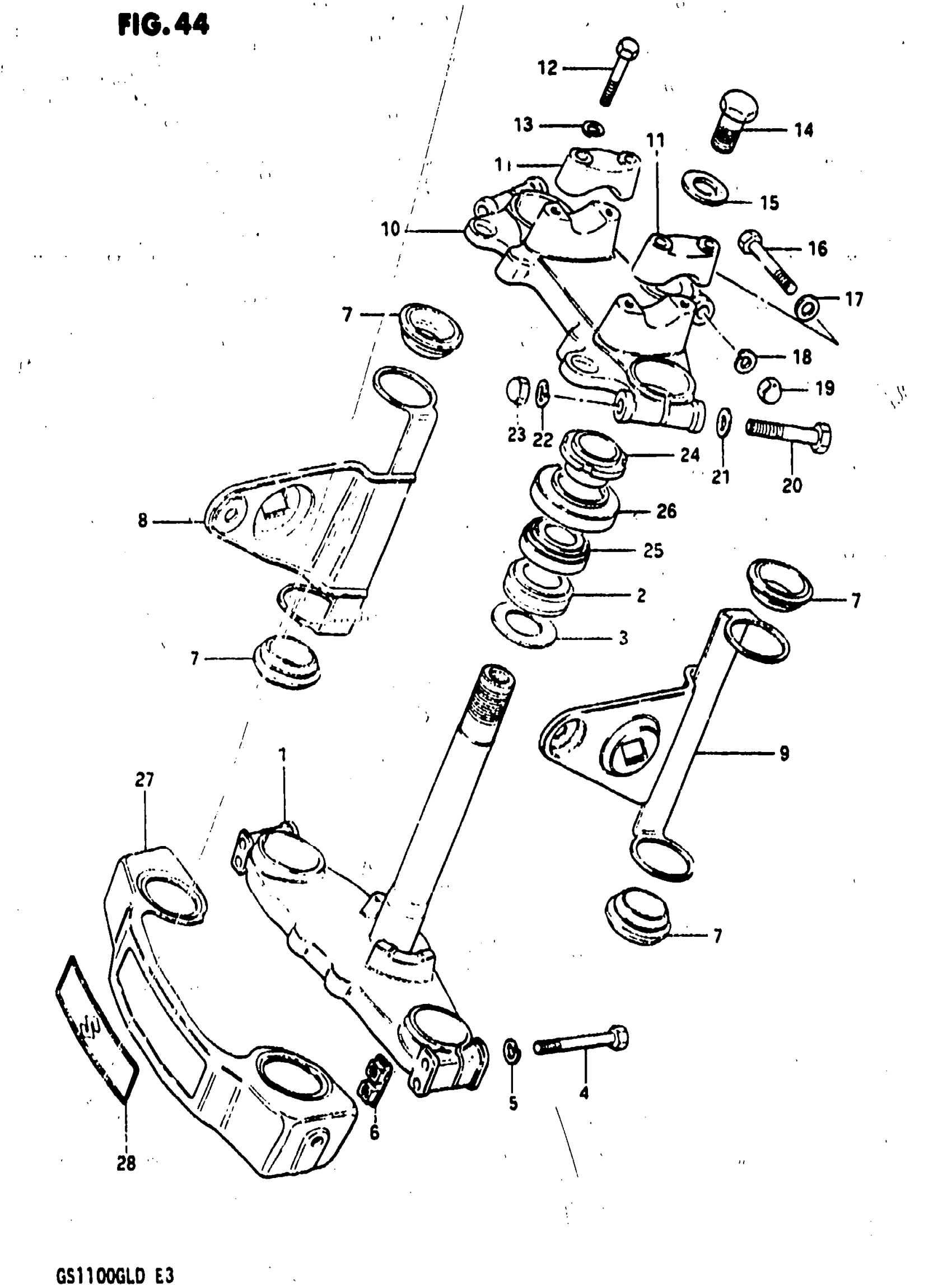

1983 Suzuki GS1100GL Steering Stem Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STEERING STEM (BLACK) | Includes Item(s) 2 - 3

51410-49165-291

1
Out of stock

2

RT 30X55X17 BEA This part replaces 09265-30005.

09265-30034

1
Out of stock

3

WASHER

08211-20402

1
Out of stock

4

BOLT This part replaces 01107-08558.

01500-08557

4
Out of stock

5

4

$2.28

In stock

6

NUT

51458-49000

2
Out of stock

7

CUSHION, BRACKET This part replaces 51553-49000.

51553-34300

4
Out of stock

8

BRACKET, HEADLAMP RH

51530-45380

1
Out of stock

9

BRACKET, HEADLAMP RH

51540-45380

1
Out of stock

10

STEM HEAD, STEERING | BLACK

51311-45380-291

1
Out of stock

11

CLAMP, HANDLEBAR UPPER | BLACK

56211-29320-291

2
Out of stock

12

BOLT

01204-08357

4
Out of stock

13

4

$2.28

In stock

14

BOLT This part replaces 51353-45380.

51352-43530

1
Out of stock

15

WASHER

51356-45380

1
Out of stock

16

BOLT This part replaces 01107-08508.

01500-08507

1
Out of stock

17

WASHER This part replaces 08322-21088.

08322-01087

1
Out of stock

18

1

$2.28

In stock

19

NUT This part replaces 08313-11088.

08313-10087

1
Out of stock

20

BOLT This part replaces 01107-10558.

01500-1055A

2
Out of stock

21

WASHER This part replaces 08322-21108.

08322-01107

2
Out of stock

22

LOCK WASHER This part replaces 08321-31108.

08321-01107

2
Out of stock

23

NUT This part replaces 08313-11108.

08313-10107

2
Out of stock

24

NUT, STEERING STEM

51631-34200

1
Out of stock

25

BEARING, UPPER

09265-25008

1
Out of stock

26

SEAL,DUST This part replaces 51643-40502.

51643-40503

1
Out of stock

27

COVER, FRONT FORK

51871-45301

1
Out of stock

28

EMBLEM, FRONT FORK COVER

68211-45300

1
Out of stock
