1983 Suzuki GS1100GL Front Fork Diagram

← All diagrams

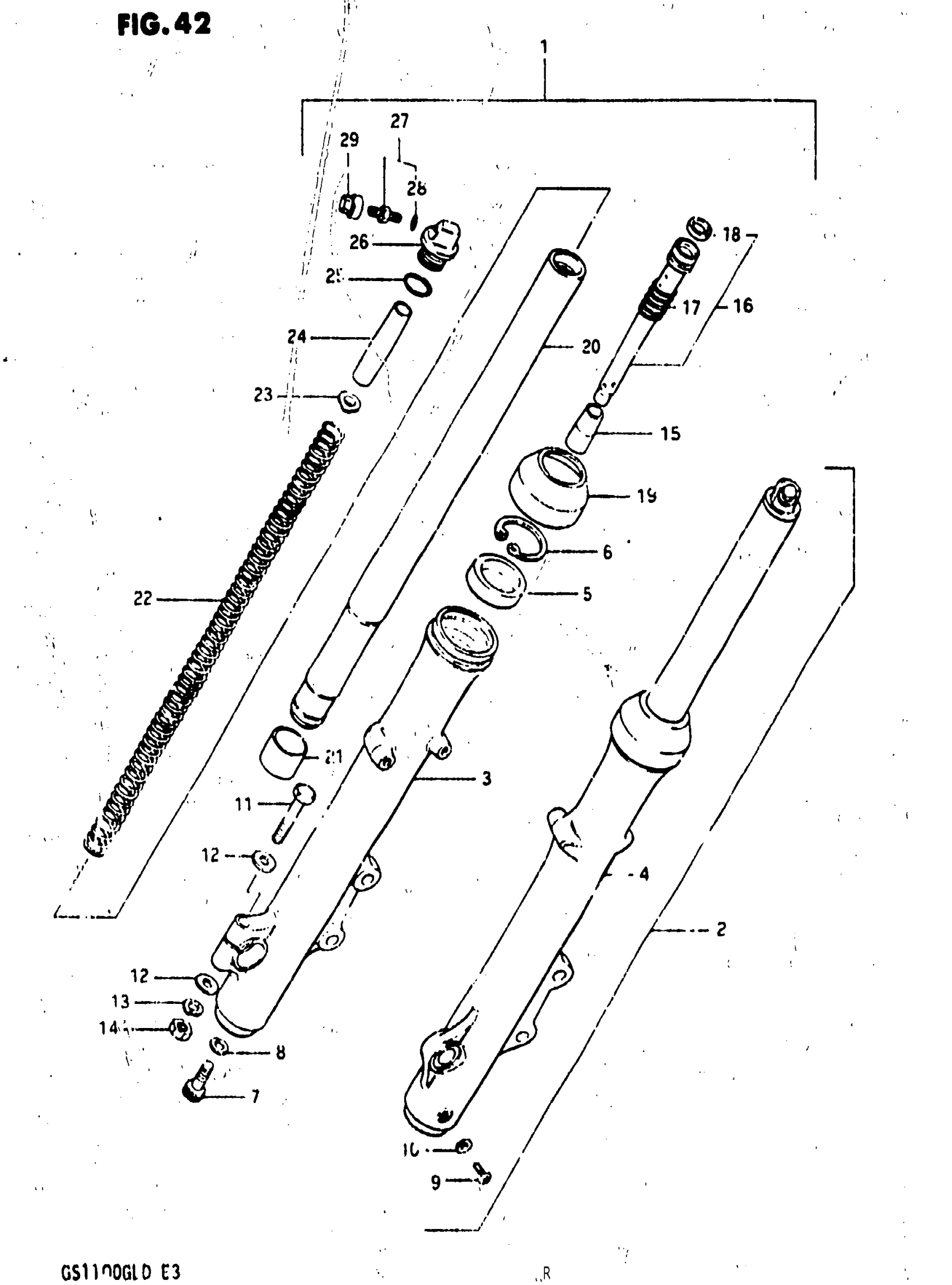

Find the part on the Front Fork diagram for your 1983 Suzuki GS1100GL, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1983 Suzuki GS1100GL Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

DAMPER ASSY, RH

51103-45380

1
Out of stock

2

DAMPER ASSY, LH | Includes Item(s) 3 - 14

51104-45660

1
Out of stock

3

OUTER TUBE, RH

51130-49130

1
Out of stock

4

OUTER TUBE, LH

51140-49130

1
Out of stock

5

SEAL, OIL This part replaces 51153-49000.

51153-08C20

2
Out of stock

6

RING, OIL SEAL STOPPER

51156-40301

2
Out of stock

7

BOLT

51147-16510

2
Out of stock

8

GASKET

51148-41310

2
Out of stock

9

2

$1.20

In stock

10

GASKET

51183-03010

2
Out of stock

11

BOLT This part replaces 01107-08508.

01500-08507

1
Out of stock

12

WASHER This part replaces 08322-21088.

08322-01087

2
Out of stock

13

1

$2.28

In stock

14

1

$1.93

In stock

15

PIECE, OIL LOCK | Includes Item(s) 16 - 29

51195-49071

2
Out of stock

16

CYLINDER

51140-49100

2
Out of stock

17

SPRING

51177-49000

2
Out of stock

18

RING, PISTON

51196-49000

2
Out of stock

19

DUST SEAL

51173-49002

2
Out of stock

20

INNER TUBE

51110-49270

2
Out of stock

21

PISTON

51121-49200

2
Out of stock

22

SPRING

51171-49100

2
Out of stock

23

GUIDE SPRING

51172-38010

2
Out of stock

24

SPACER

51176-38010

2
Out of stock

25

O RING

51117-16310

2
Out of stock

26

CAP, UPPER This part replaces 51351-49400.

51351-41211

2
Out of stock

27

VALVE, AIR

51293-49001

2
Out of stock

28

O RING

51117-41211

2
Out of stock

29

CAP

51294-49000

2
Out of stock
