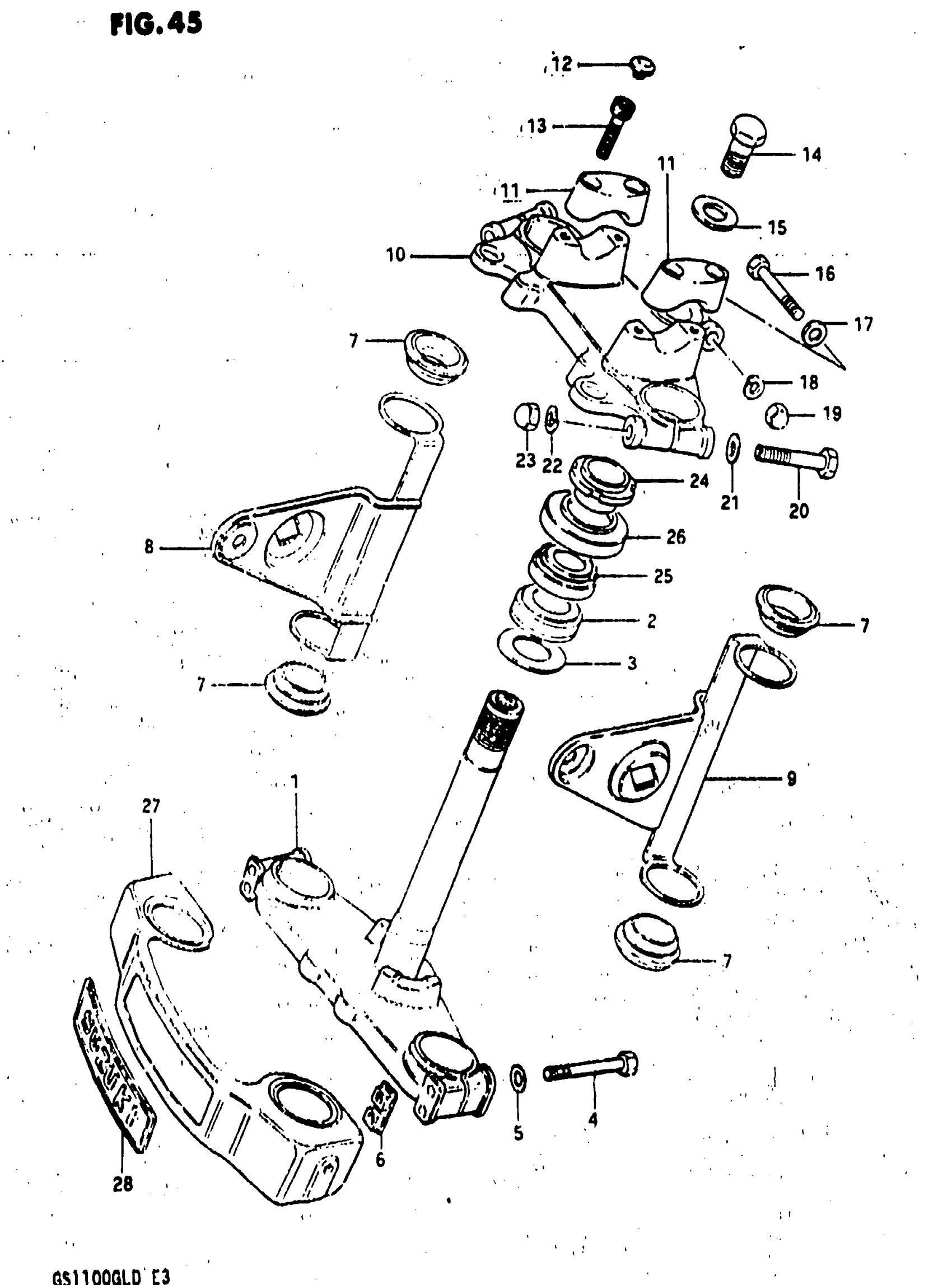

Suzuki GS1100GL (1983) STEERING STEM (MODEL D) Diagram

#

Description
Price

1

STEERING STEM (BLACK) | Includes Item(s) 2 - 3

51410-49165-291

Unavailable

2

RT 30X55X17 BEA This part replaces 09265-30005.

09265-30034

$57.05

3

WASHER

08211-20402

Unavailable

4

BOLT This part replaces 01107-08558.

01500-08557

$3.16

5

WASHER This part replaces 08322-21088.

08322-01087

$2.13

6

NUT

51458-49000

Unavailable

7

CUSHION, BRACKET This part replaces 51553-49000.

51553-34300

$4.52

8

BRACKET, HEADLAMP RH

51530-45380

Unavailable

9

BRACKET, HEADLAMP RH

51540-45380

Unavailable

10

STEM HEAD, STEERING | BLACK

51311-45380-291

Unavailable

11

NO DESCRIPTION AVAILABLE | BLACK This part replaces 56211-49500-291.

56211-26D00

Unavailable

12

CAP

09250-06004

$1.49

13

BOLT, STEERING DAMPER This part replaces 09106-08013.

07130-0830A

$1.74

14

BOLT This part replaces 51353-45380.

51352-43530

$15.42

15

WASHER

51356-45380

Unavailable

16

BOLT This part replaces 01107-08508.

01500-08507

$3.05

17

WASHER This part replaces 08322-21088.

08322-01087

$2.13

18

.LOCK WASHER This part replaces 08321-31088.

08321-01087

$2.13

19

NUT This part replaces 08313-11088.

08313-10087

$2.28

20

BOLT This part replaces 01107-10558.

01500-1055A

$3.55

21

WASHER This part replaces 08322-21108.

08322-01107

$2.15

22

LOCK WASHER This part replaces 08321-31108.

08321-01107

$1.84

23

NUT This part replaces 08313-11108.

08313-10107

$2.50

24

NUT, STEERING STEM

51631-34200

Unavailable

25

BEARING, UPPER

09265-25008

Unavailable

26

SEAL,DUST This part replaces 51643-40502.

51643-40503

$6.15

27

COVER, FRONT FORK

51871-45301

Unavailable

28

EMELEM, FRONT FORK COVER

68211-45310

Unavailable
