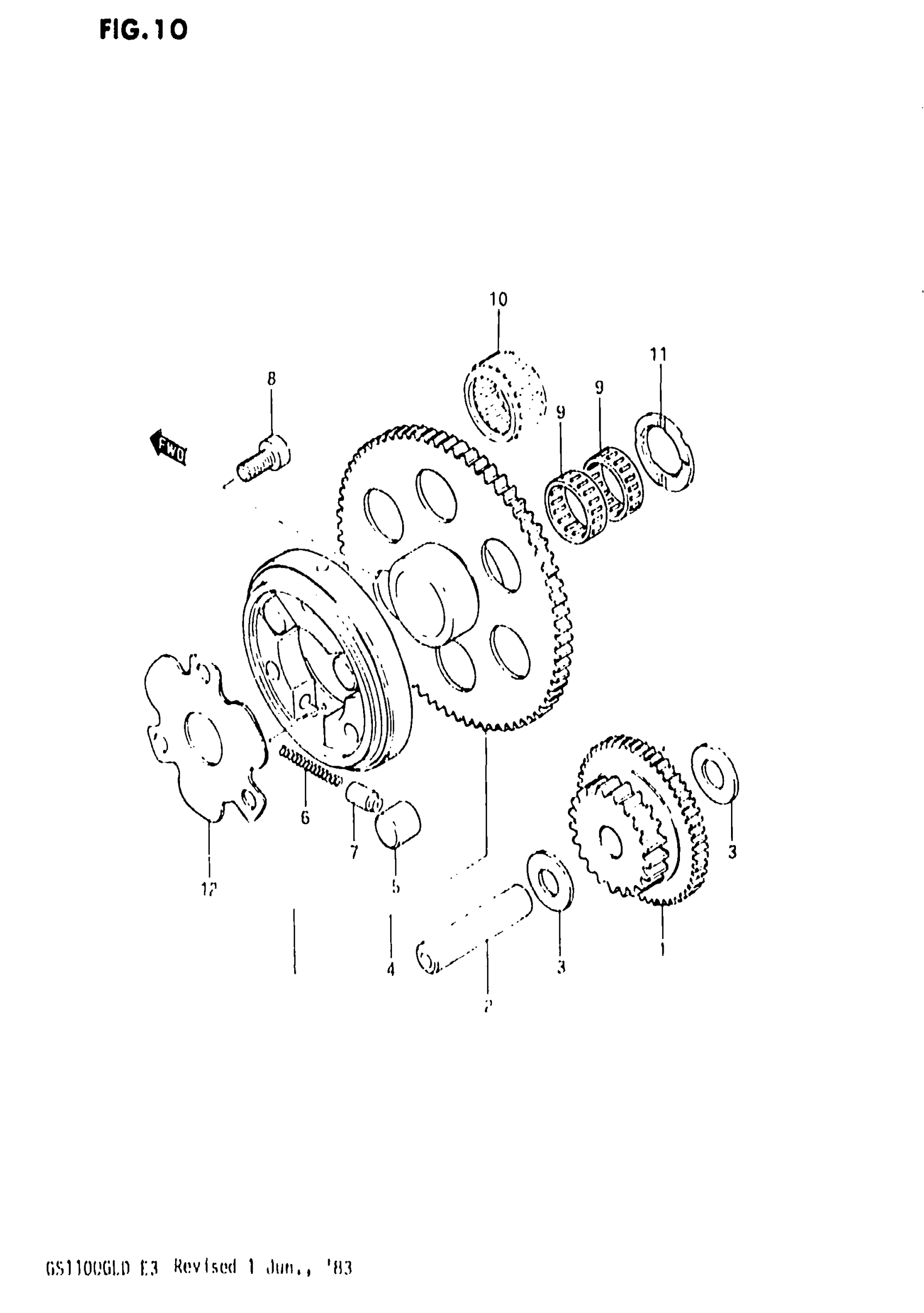

Suzuki GS1100GL (1983) STARTER CLUTCH Diagram

#

Description
Price

1

GEAR, STARTER IDLE (NT:55/18)

12611-49000

Unavailable

2

PIN

09206-13003

$17.07

3

WASHER

09160-13003

$1.91

4

STARTER CLUTCH SET | Includes Item(s) 5 - 7

12600-49850

Unavailable

5

ROLLER

09261-14001

$5.00

6

SPRING

09440-04015

$2.24

7

PIECE, PUSH

12633-31000

$8.27

8

BOLT This part replaces 09106-08043.

07130-0816A

$2.90

9

BEARING This part replaces 09263-25029.

09263-25008

Unavailable

10

BEARING This part replaces 09263-25039.

09263-25008

Unavailable

11

WASHER,25X38X1 This part replaces 09160-25019.

09160-25080

$21.05

12

SHIM, STARTER CLUTCH

12649-49400

Unavailable
