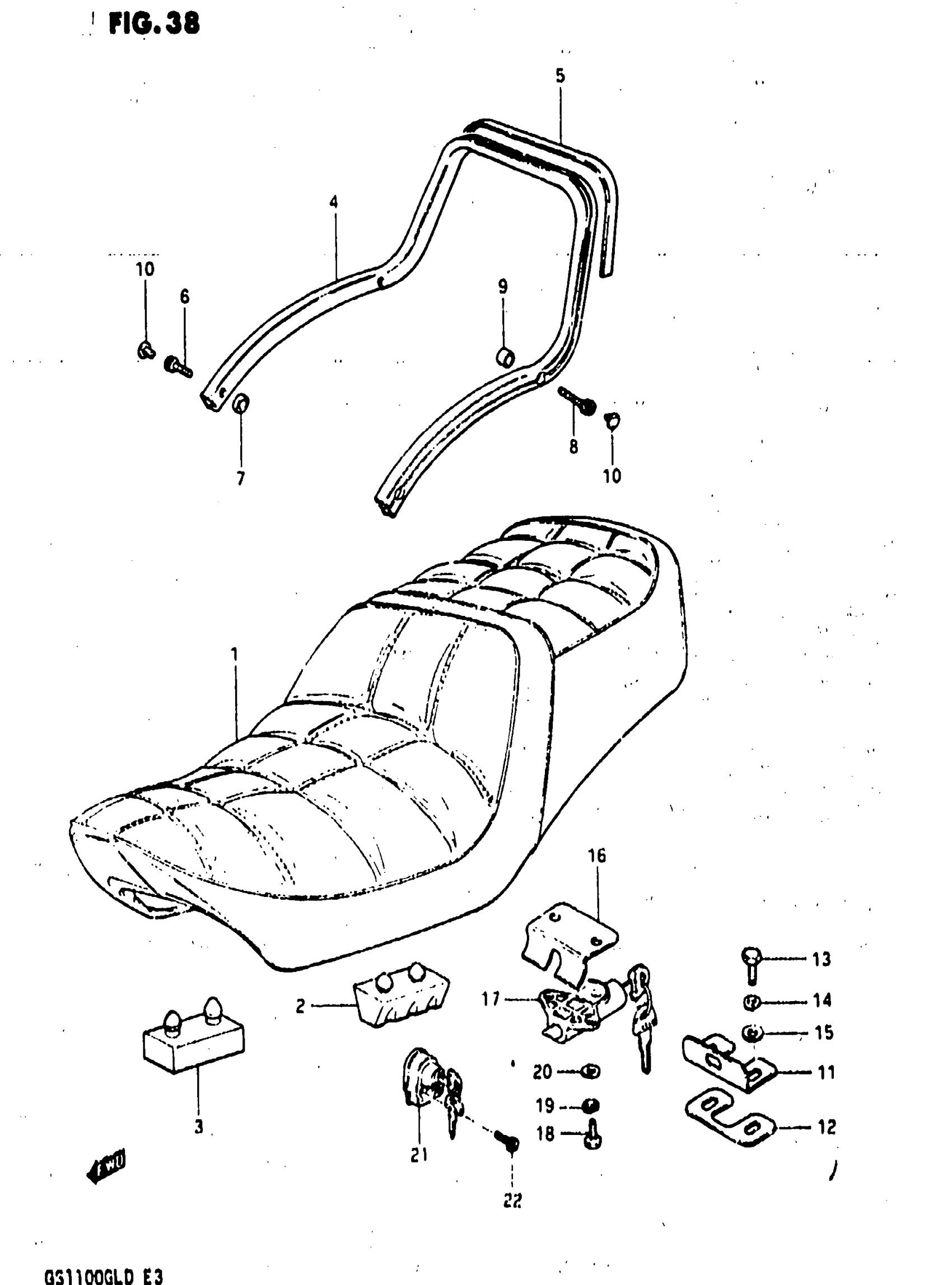

Suzuki GS1100GL (1983) SEAT (MODEL Z) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 45100-45332-47G.

45100-45332-48G

Unavailable

2

CUSHION

45149-45330

$3.89

3

CUSHION

09321-08006

$2.90

4

HANDLE SET, PILLION RIDER | Includes Item(s) 5 This part replaces 46210-45341.

46210-45370

Unavailable

5

RUBBER This part replaces 46214-45340.

46214-34410

Unavailable

6

BOLT This part replaces 09106-08010.

07130-0825B

$3.37

7

SPACER

46219-45340

Unavailable

8

BOLT This part replaces 09106-08003.

07130-08407

$3.14

9

SPACER

46218-45340

Unavailable

10

CAP

09250-06004

$1.49

11

STRIKER, SEAT LOCK

45213-47200

Unavailable

12

WASHER (8.5X18X1) This part replaces 45217-47200.

09160-08043

$1.83

13

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97

14

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

15

WASHER This part replaces 08322-21068.

08322-01067

$2.13

16

GUIDE, SEAT LOCK

45214-49105

Unavailable

17

LOCK ASSY, SEAT

95700-47820

Unavailable

18

BOLT This part replaces 01107-06208.

01500-06207

$2.28

19

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

20

.WASHER This part replaces 08322-11068.

08322-0106B

$2.26

21

LOCK SET, HELMET

95700-34210

Unavailable

22

BOLT This part replaces 09106-05008.

07130-0525B

$2.52
