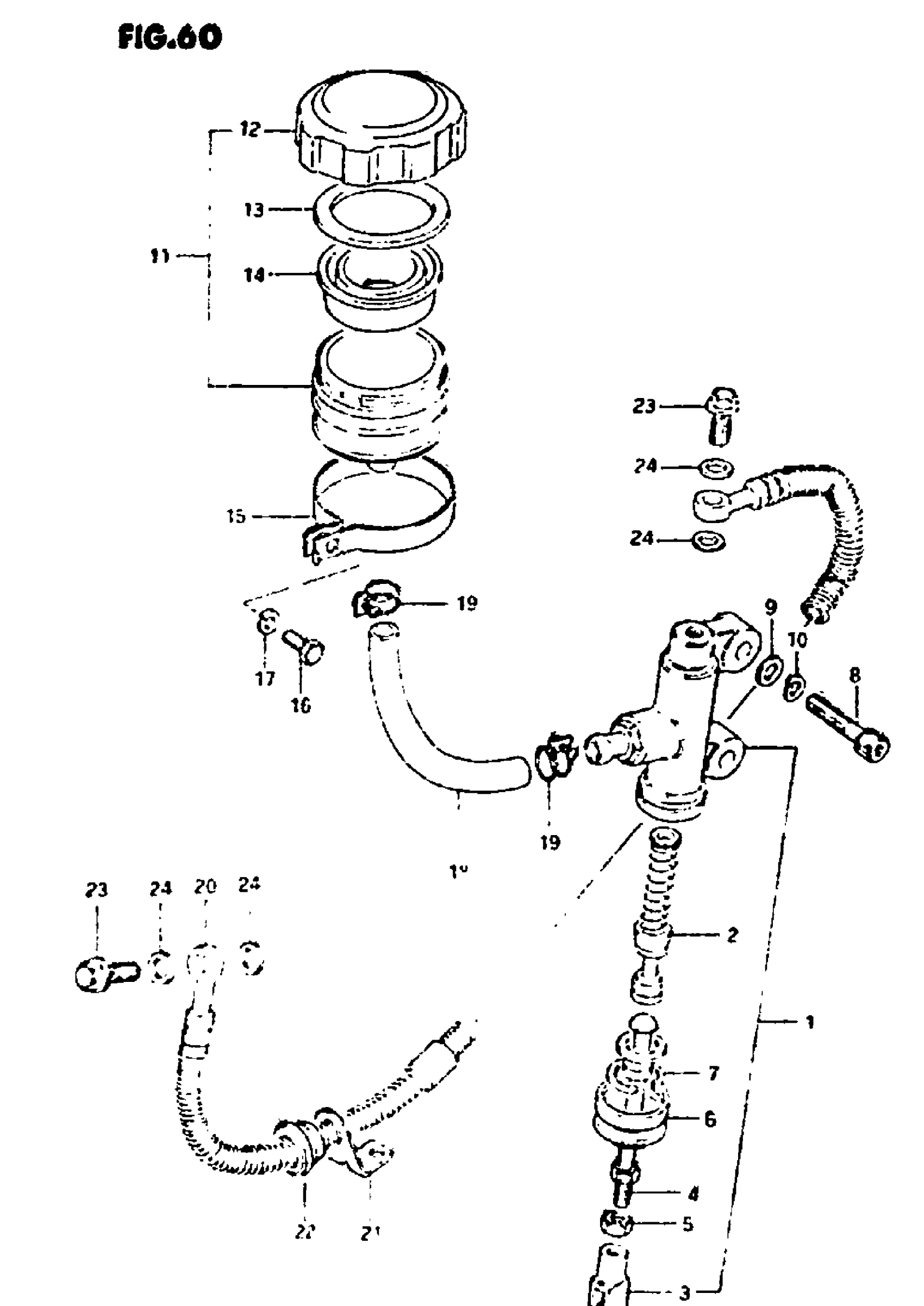

Suzuki GS1100GL (1983) REAR MASTER CYLINDER Diagram

#

Description
Price

1

CYLINDER ASSY, REAR MASTER | Includes Item(s) 2 - 7

69600-45302

Unavailable

2

PISTON & CUP SET

69600-45820

$45.83

3

YOKE

69692-34300

Unavailable

4

ROD, PUSH

69670-45301

Unavailable

5

NUT This part replaces 69693-34300.

69693-05A00

$1.96

6

BOOT

69691-45001

$5.70

7

CIRCLIP

51162-70040

$3.25

8

BOLT, STEERING DAMPER This part replaces 09106-08013.

07130-0830A

$1.74

9

WASHER This part replaces 08322-11088.

08322-01087

$2.13

10

.LOCK WASHER This part replaces 08321-31088.

08321-01087

$2.13

11

TANK ASSY, RESE | Includes Item(s) 12 - 14 This part replaces 69740-47011.

69740-470V0

Unavailable

12

CAP This part replaces 59669-33603.

59669-07D00

$31.72

13

PLATE, DIAPHRAGM

59668-18441

$4.52

14

DIAPHRAGM

59667-18441

$10.28

15

CLAMP | MODEL Z This part replaces 09402-51601.

09402-51602

Unavailable

15

CLAMP | MODEL D

09402-51602

Unavailable

16

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97

17

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

18

HOSE

69731-45300

Unavailable

19

CLAMP This part replaces 09400-16302.

09400-16304

$3.10

20

HOSE, REAR BRAKE

69480-45300

Unavailable

21

GUIDE, BRAKE HOSE

69243-45300

Unavailable

22

GROMMET,BRAKE H This part replaces 59244-36200.

59244-36201

$4.00

23

UNION | MODEL Z This part replaces 09360-10007.

09360-10017

$3.42

23

UNION | MODEL D This part replaces 09360-10009.

09360-10017

$3.42

24

WASHER (10X15X1.5) This part replaces 09161-10005.

09161-10009

$1.84
