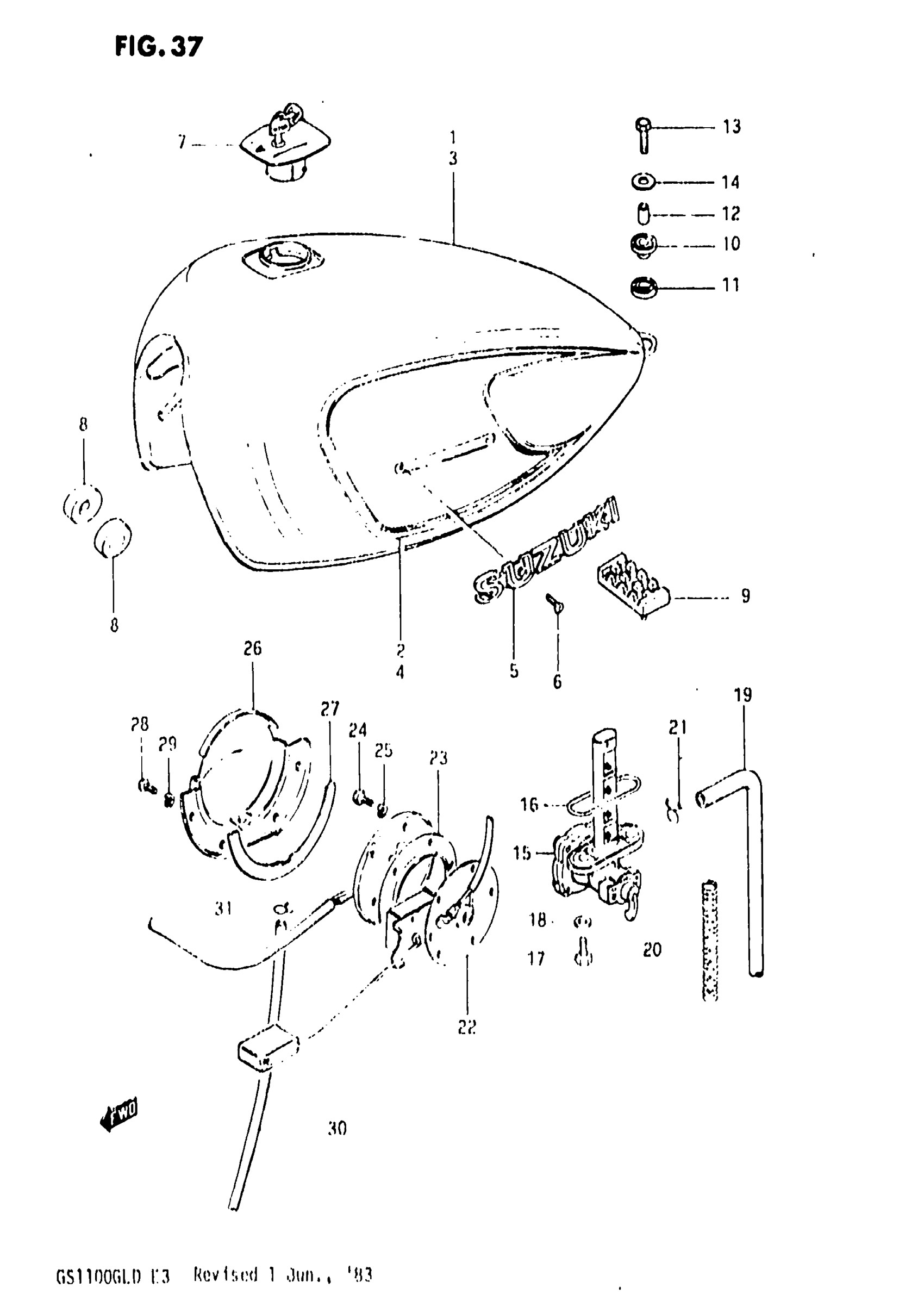

Suzuki GS1100GL (1983) FUEL TANK (MODEL D) Diagram

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 This part replaces 44100-49120-78R.

44110-45303-13L

Unavailable

TAPE SET

68110-49120-78U

Unavailable

NO DESCRIPTION AVAILABLE | Includes Item(s) 4 This part replaces 44100-49120-88S.

44110-45303-13L

Unavailable

TAPE SET

68110-49120-86C

Unavailable

EMBLEM

68111-11400

$23.97

SCREW This part replaces 02132-03065.

02122-0306B

$2.26

CAP SET,FUEL TA This part replaces 44200-49017-KEY.

44200-49811

$144.42

CUSHION This part replaces 09329-10007.

09329-10026

$2.23

CUSHION,FUEL TA This part replaces 44541-34500.

44541-34501

$12.87

CUSHION (9X24X18) This part replaces 09320-10020.

09320-10071

$2.60

CUSHION, REAR

09320-14013

$2.11

SPACER This part replaces 09180-06072.

09180-06271

$2.35

BOLT, REAR This part replaces 01107-06308.

01500-06307

$2.48

WASHER, FRONT This part replaces 09160-06004.

09160-06134

$1.91

COCK ASSY,FUEL | Includes Item(s) 16 This part replaces 44300-45370.

44300-45373

$72.12

O RING This part replaces 44348-49170.

44348-49171

$2.88

BOLT This part replaces 09128-06006.

09128-06057

$1.65

GASKET (5.8X13X1.2) This part replaces 09168-06010.

09168-06023

$2.35

HOSE(7X10.2X200 This part replaces 09343-07073.

09352-70104-00B

$15.32

SPRING This part replaces 09440-13017.

09440-13043

$6.04

CLIP

09401-10403

$1.65

GAUCE ASSY, FUEL LEVEL | Includes Item(s) 23

34810-45310

Unavailable

GASKET

34825-45100

$5.80

BOLT This part replaces 01104-05108.

01500-0510B

$1.80

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

PLATE, FUEL DRAIN

34885-34500

Unavailable

GASKET,FUEL DRA This part replaces 34888-34500.

34888-34501

Unavailable

SCREW This part replaces 02112-05088.

02112-05087

$1.49

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

HOSE This part replaces 09343-05165.

09352-50005-00B

$13.93

CLIP

09401-08402

$1.49
