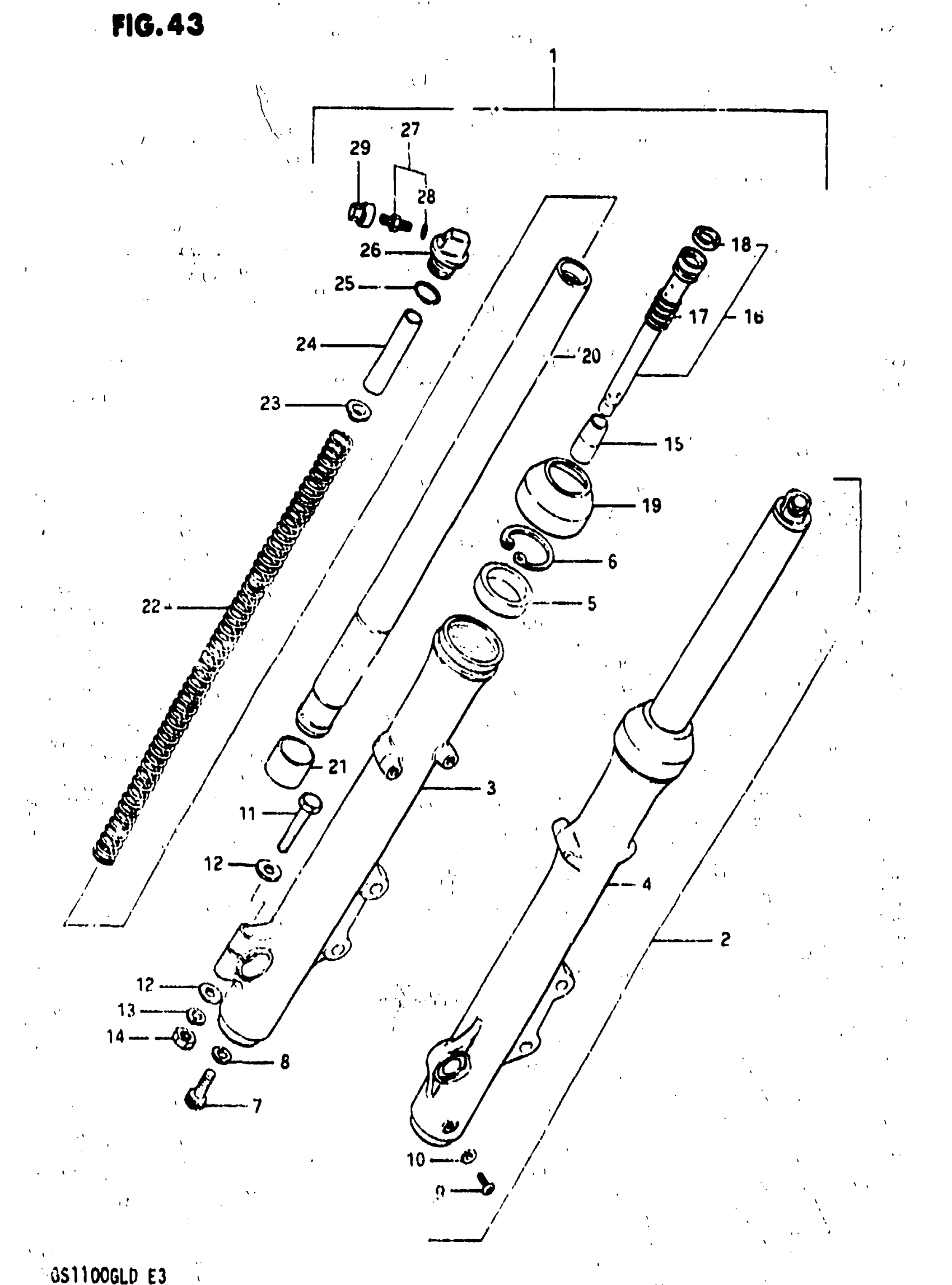

Suzuki GS1100GL (1983) FRONT FORK (MODEL D) Diagram

#

Description
Price

1

DAMPER ASSY, RH

51103-45380

Unavailable

2

DAMPER ASSY, LH | Includes Item(s) 3 - 29

51104-45660

Unavailable

3

OUTER TUBE, RH

51130-49130

Unavailable

4

OUTER TUBE, RH

51140-49130

Unavailable

5

SEAL, OIL This part replaces 51153-49001.

51153-08C20

$20.47

6

RING, OIL SEAL STOPPER

51156-40301

$5.05

7

BOLT

51147-16510

$4.34

8

GASKET

51148-41310

$2.26

9

SCREW This part replaces 02112-04088.

02112-04087

$1.49

10

GASKET

51183-03010

$2.07

11

BOLT This part replaces 01107-08508.

01500-08507

$3.05

12

WASHER This part replaces 08322-21088.

08322-01087

$2.13

13

.LOCK WASHER This part replaces 08321-31088.

08321-01087

$2.13

14

NUT This part replaces 08310-12088.

08310-00087

$2.13

15

PIECE, OIL LOCK

51195-49071

$21.43

16

CYLINDER

51146-49100

Unavailable

17

SPRING

51177-49000

Unavailable

18

RING, PISTON

51196-49000

$7.78

19

DUST SEAL

51173-49002

$16.96

20

INNER TUBE

51110-49270

Unavailable

21

PISTON

51121-49200

$19.48

22

SPRING

51171-49100

Unavailable

23

GUIDE SPRING

51172-38010

Unavailable

24

SPACER

51176-38010

Unavailable

25

O RING

51117-16310

Unavailable

26

CAP, UPPER This part replaces 51351-49400.

51351-41211

Unavailable

27

VALVE, AIR

51293-49001

Unavailable

28

O RING

51117-41211

Unavailable

29

CAP

51294-49000

Unavailable
