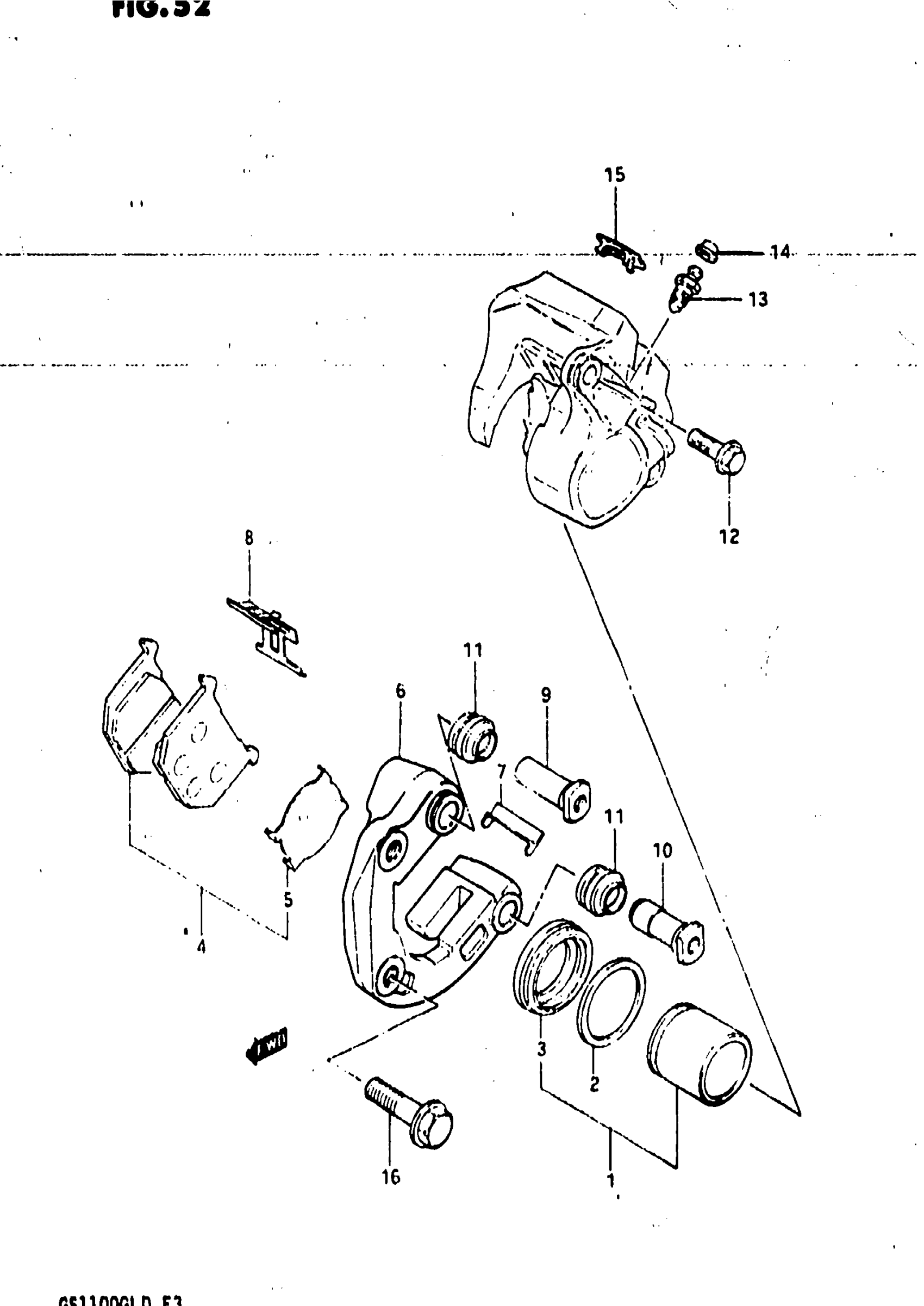

Suzuki GS1100GL (1983) FRONT CALIPERS Diagram

#

Description
Price

0

CALIPERS ASSY, FRONT RH | MODEL Z This part replaces 59100-44103.

59100-44104

Unavailable

0

NO DESCRIPTION AVAILABLE | MODEL Z This part replaces 59300-44103.

59300-441V0

Unavailable

0

CALIPERS ASSY, FRONT RH | MODEL D

59100-44104

Unavailable

0

NO DESCRIPTION AVAILABLE | MODEL D; Includes Item(s) 1 - 15 This part replaces 59300-44104.

59300-441V0

Unavailable

1

PISTON SET This part replaces 59301-45820.

59301-45822

$39.66

2

SEAL,PISTON This part replaces 59107-18410.

69107-05CF0

$9.07

3

BOOT, PISTON

59308-45200

$7.48

4

PAD SET This part replaces 59301-45811.

59302-45850-XNA

Unavailable

5

SHIM

59371-45200

Unavailable

6

HOLDER SET, CALIPERS RH

59100-44841

Unavailable

6

HOLDER SET, CALIPERS LH

59300-44831

Unavailable

7

GUIDE, PAD

59316-45201

$5.15

8

SPRING, PAD

59315-45200

$12.32

9

AXLE NO. 1

59305-45200

Unavailable

10

AXLE NO.2

59306-45200

Unavailable

11

BOOT

59312-45200

$8.79

12

BOLT | MODEL Z This part replaces 59314-45200.

59314-45201

$5.55

12

BOLT | MODEL D

59314-45201

$5.55

13

BLEEDER

59121-18410

$8.73

14

CAP, BLEEDER This part replaces 59122-18410.

55156-66310

$5.17

15

COVER

59324-45201

Unavailable

16

BOLT (10X40) This part replaces 01517-10408.

01550-10407

$4.68
