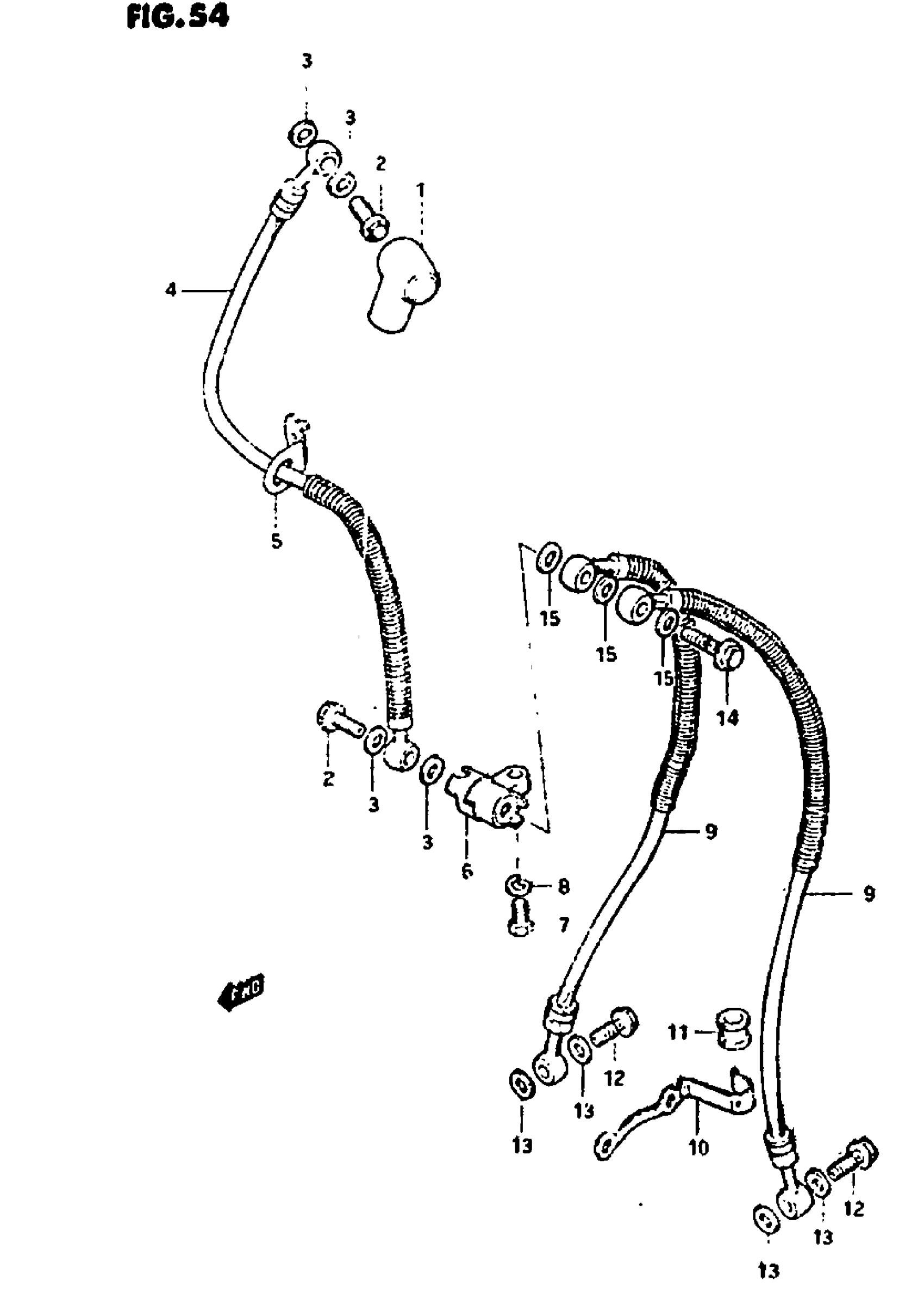

Suzuki GS1100GL (1983) FRONT BRAKE HOSE Diagram

#

Description
Price

1

BOOT, MASTER CYLINDER This part replaces 59711-18400.

59711-49001

$7.51

2

UNION | MODEL Z This part replaces 09360-10007.

09360-10017

$3.42

2

UNION | MODEL O This part replaces 09360-10009.

09360-10017

$3.42

3

WASHER (10X15X1.5) This part replaces 09161-10005.

09161-10009

$1.84

4

HOSE, BRAKE NO.1

59480-47052

Unavailable

5

GUIDE, HOSE

59243-31010

Unavailable

6

JOINT, BRAKE HOSE This part replaces 59491-45000.

59491-45001

Unavailable

7

BOLT This part replaces 01107-06208.

01500-06207

$2.28

8

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

9

HOSE, BRAKE NO.2

59240-47051

Unavailable

10

CLAMP

59268-49001

Unavailable

11

BUSHING

59244-49000

Unavailable

12

UNION | MODEL Z This part replaces 09360-10007.

09360-10017

$3.42

12

UNION | MODEL D This part replaces 09360-10009.

09360-10017

$3.42

13

WASHER (10X15X1.5) This part replaces 09161-10005.

09161-10009

$1.84

14

UNION BOLT This part replaces 09360-10008.

09360-10018

$6.80

15

WASHER (10X15X1.5) This part replaces 09161-10005.

09161-10009

$1.84
