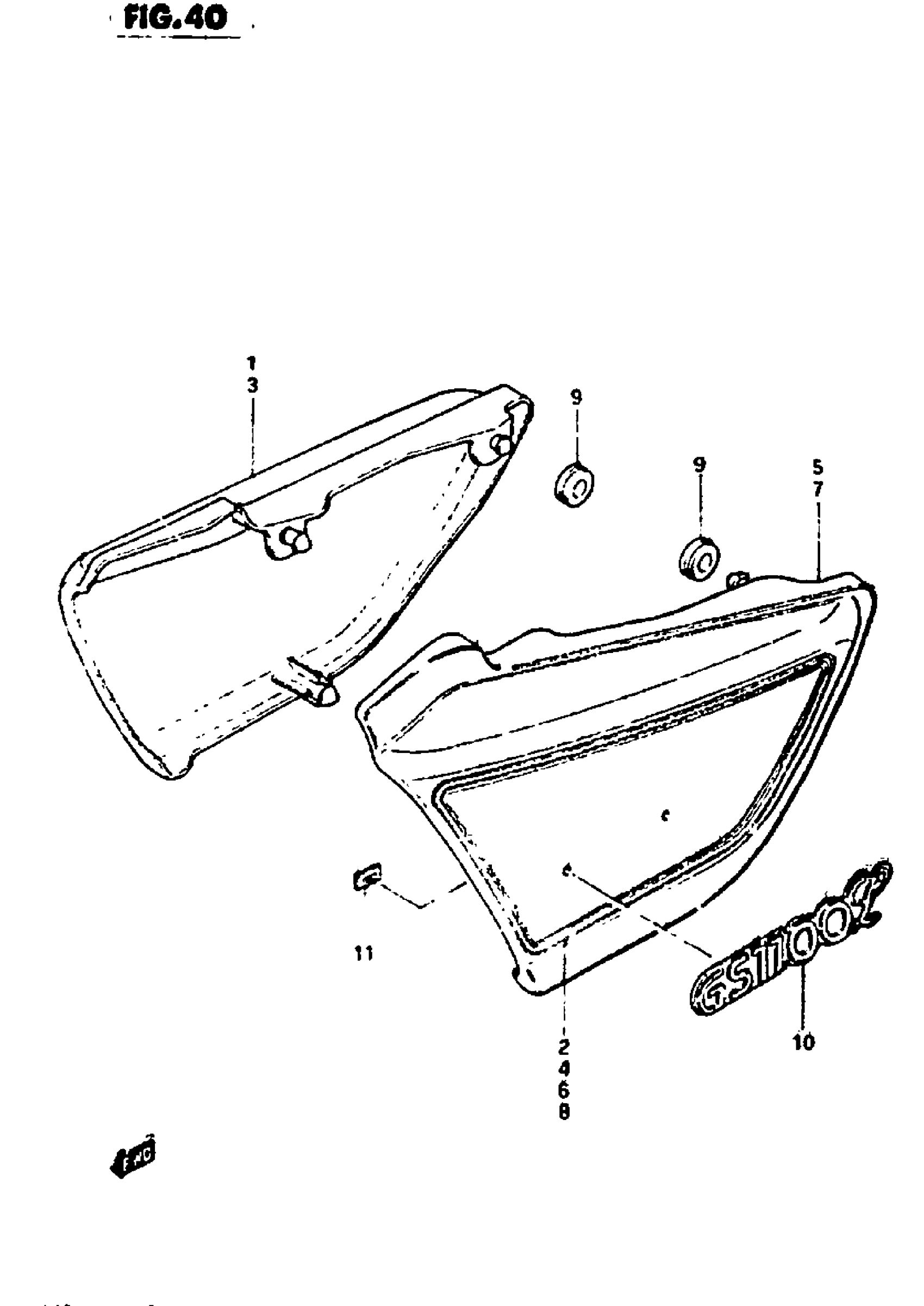

Suzuki GS1100GL (1983) FRAME COVER (MODEL Z) Diagram

#

Description

Price

1

COVER, FRAME RH | Includes Item(s) 2 This part replaces 47101-45860-019.

47111-45310

Unavailable

2

TAPE SET

68136-45320-81N

Unavailable

3

COVER, FRAME RH | Includes Item(s) 4 This part replaces 47100-45870-12E.

47111-45310

Unavailable

4

TAPE SET, RH

68136-45320-84Z

Unavailable

5

COVER,FRAME,LH | Includes Item(s) 6 This part replaces 47201-45860-019.

47211-45310

Unavailable

6

TAPE SET

68146-45320-81N

Unavailable

7

COVER,FRAME,LH | Includes Item(s) 8 This part replaces 47200-45870-12E.

47211-45310

Unavailable

8

TAPE SET, LH

68146-45320-84Z

Unavailable

9

CUSHION

09320-08018

$3.04

10

EMBLEM

68131-49130

Unavailable

11

NUT

09148-03002

$2.15
