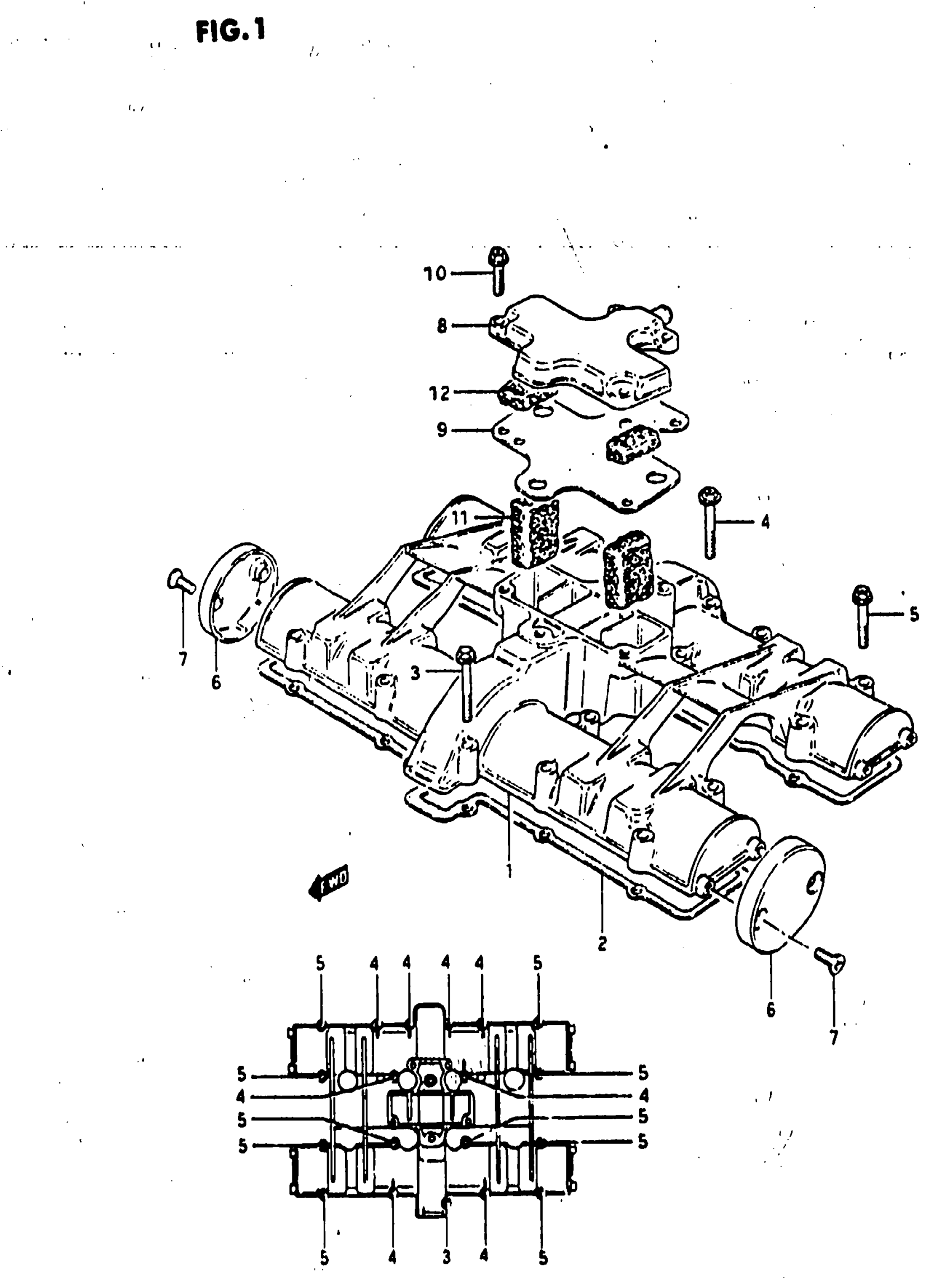

Suzuki GS1100GL (1983) CYLINDER HEAD COVER (MODEL Z) Diagram

#

Description

Price

1

COVER, CYLINDER HEAD This part replaces 11171-49020.

11171-49030

Unavailable

2

GASKET,HEAD COV This part replaces 11173-49020.

11173-49022

Unavailable

3

BOLT (CHROME) This part replaces 01517-06458.

01550-06457

$2.69

4

BOLT This part replaces 01517-06408.

01550-06407

$2.69

5

BOLT This part replaces 01517-06358.

01550-06357

$2.77

6

CAP, CYLINDER HEAD COVER

11174-49000

Unavailable

7

SCREW

09127-05013

$1.49

8

COVER, BREATHER This part replaces 11176-47012.

11176-47042

Unavailable

9

BREATHER CVR GA This part replaces 11177-47001.

11177-47001-H17

$14.97

10

BOLT This part replaces 01517-06258.

01550-06257

$2.30

11

SEPARATOR,OIL B This part replaces 11186-45000.

11186-45001

Unavailable

12

SEPARATOR,OIL B This part replaces 11187-45000.

11187-45001

Unavailable
