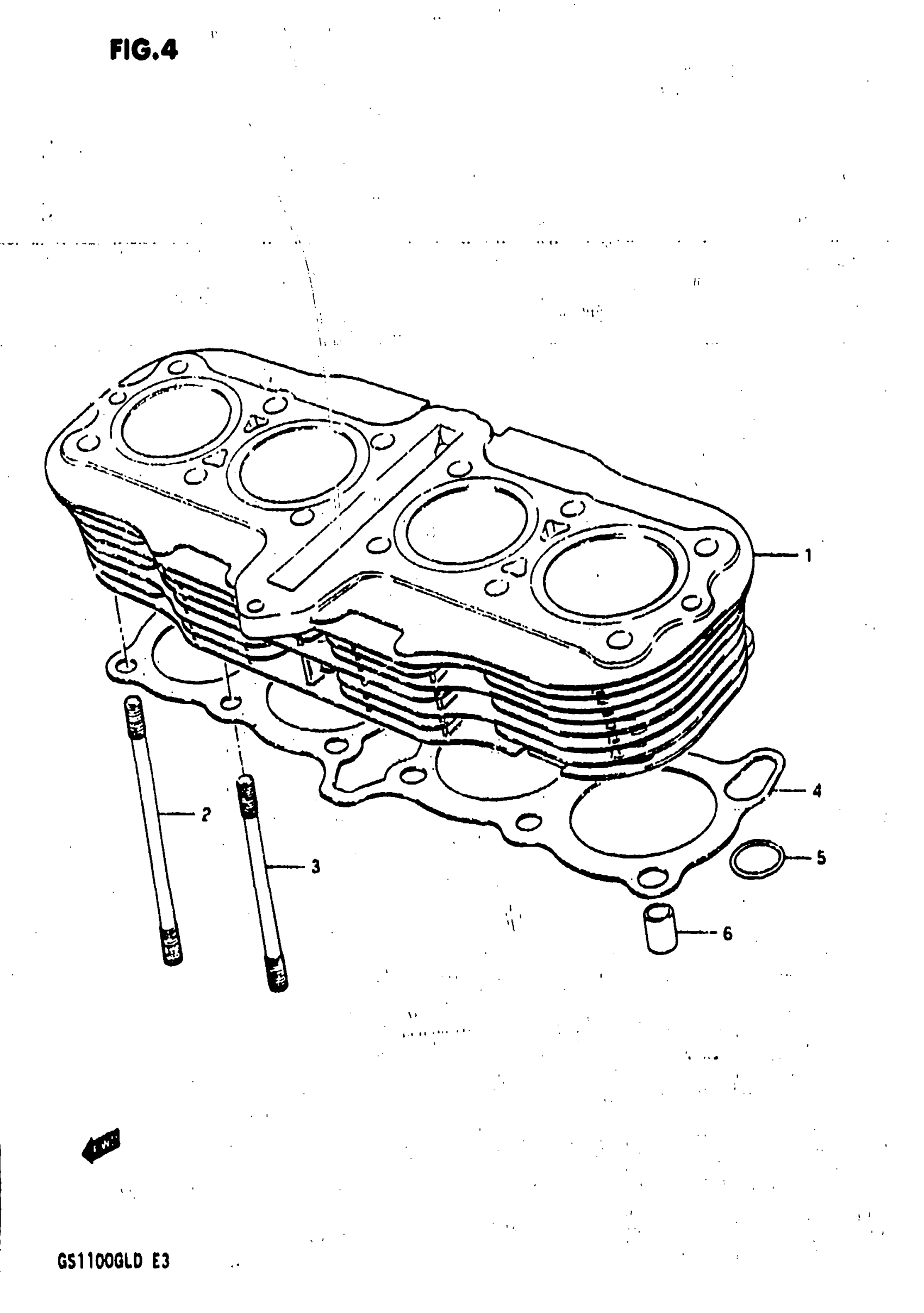

Suzuki GS1100GL (1983) CYLINDER Diagram

#

Description

Price

1

CYLINDER | MODEL Z

11210-49400

Unavailable

1

CYLINDER | MODEL D

11210-49410

Unavailable

2

STUD BOLT

09108-10027

$6.58

3

STUD BOLT (L:168) This part replaces 09108-10028.

09108-10112

$12.49

4

GASKET,CYLINDER This part replaces 11241-49401.

11241-49401-H17

Unavailable

5

O RING (ID:3.05) | ~E.NO.113974

09280-21004

Unavailable

5

O RING (ID:3.5) | E.NO.113975~

09280-21011

Unavailable

6

PIN This part replaces 09206-13001.

04211-13189

$2.19
