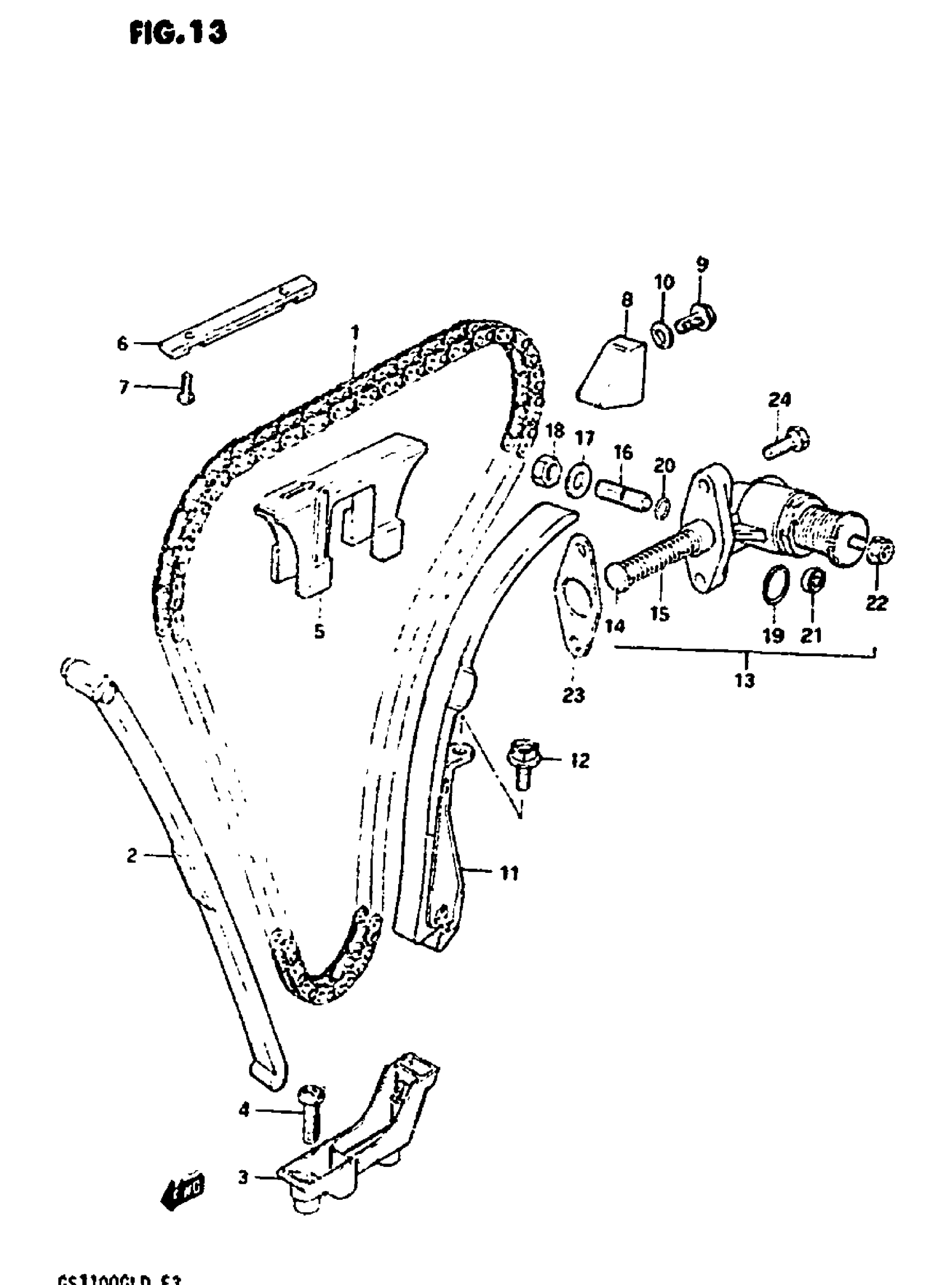

Suzuki GS1100GL (1983) CAM CHAIN (MODEL D) Diagram

#

Description
Price

1

CHAIN, CAM SHAFT DRIVE (120L) | 120L This part replaces 12760-49011.

12760-45040

$149.60

2

GUIDE,CAM CHAIN This part replaces 12771-45052.

12771-45053

$40.00

3

HOLDER, GUIDE NO.1

12776-49010

Unavailable

4

SCREW This part replaces 02112-06208.

02112-06207

$1.78

5

GUIDE, CAM CHAIN NO.2

12781-47042

Unavailable

6

GUIDE, CAM CHAIN This part replaces 12782-49140.

12782-33200

Unavailable

7

SCREW This part replaces 02112-05108.

02112-05107

$1.49

8

GUIDE, CAM CHAIN NO.4

12791-45040

$14.20

9

BOLT, CLAMP This part replaces 01517-06125.

01550-0612A

$1.97

10

GASKET (5.8X13X1.2) This part replaces 09168-06009.

09168-06023

$2.35

11

TENSIONER, CAM CHAIN

12810-49051

Unavailable

12

BOLT M8X16 This part replaces 01517-08168.

01550-08167

$2.85

13

ADJUSTER ASSY,T | Includes Item(s) 14 - 22 This part replaces 12830-47010.

12830-0930V

Unavailable

14

PUSH ROD

12833-47001

Unavailable

15

SPRING

09440-12017

$2.45

16

SCREW This part replaces 12838-45010.

12838-45001

$8.42

17

WASHER This part replaces 08322-11085.

08322-0108A

$1.92

18

NUT This part replaces 08310-11085.

08310-0008A

$1.84

19

O RING

09280-21013

$2.28

20

.O RING (D:1.9,ID:5.7)

09280-06005

$1.49

21

OIL SEAL

09284-10006

$3.42

22

NUT This part replaces 08316-16068.

08319-31067

$2.03

23

GKT,TENSIONER A This part replaces 12837-47000.

12837-47010

$4.22

24

BOLT, STARTING MOTOR This part replaces 09128-06024.

09103-06212

$2.47
