1983 Suzuki GS1100G Wiring Harness Diagram

← All diagrams

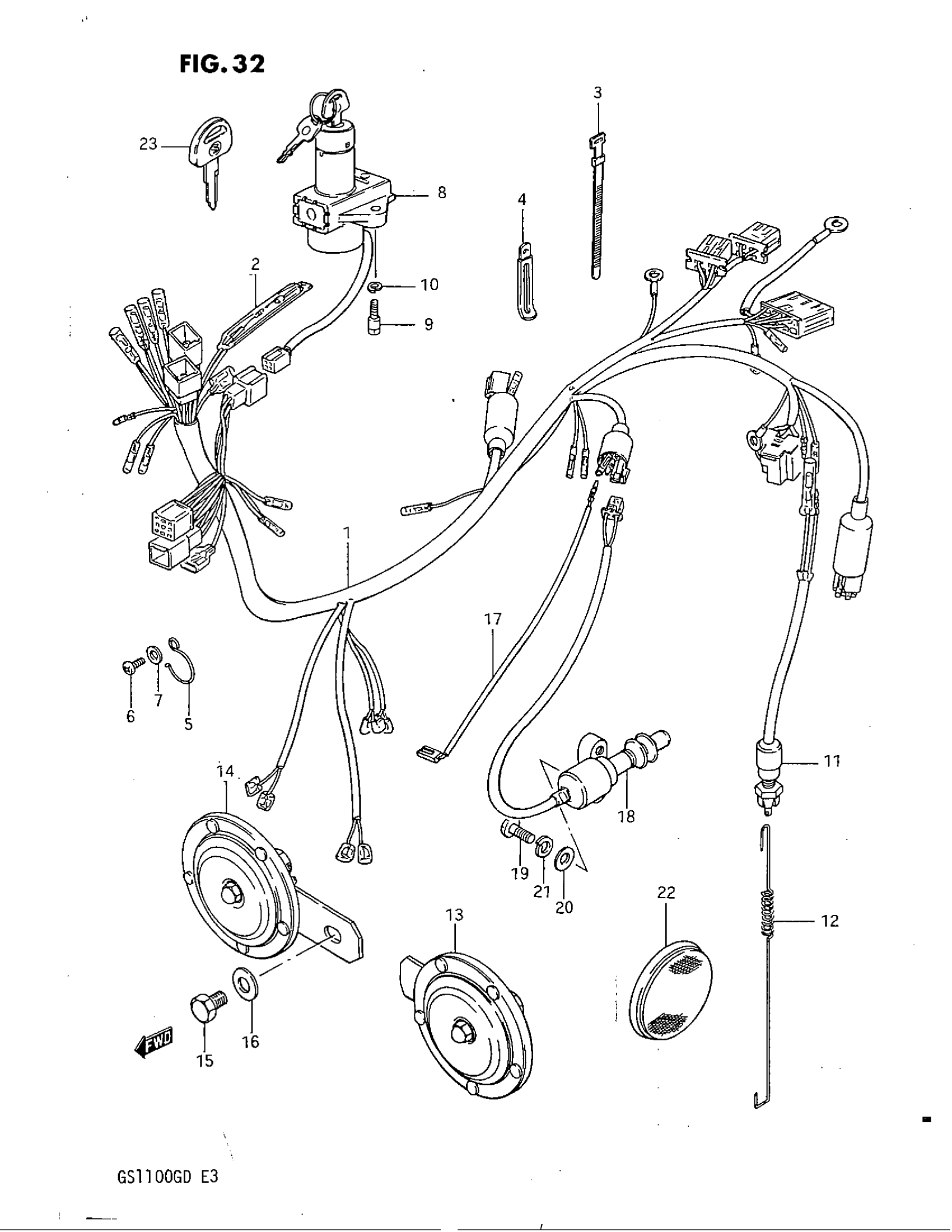

Find the part on the Wiring Harness diagram for your 1983 Suzuki GS1100G, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1983 Suzuki GS1100G Wiring Harness Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE | MODEL Z This part replaces 36610-49420.

36610-494K0

1
Out of stock

1

WIRING HARNESS | MODEL D; Includes Item(s) 2

36610-49250

1
Out of stock

2

DIODE

36611-02100

1
Out of stock

3

CLAMP (L:120)

09407-12402

1
Out of stock

4

2

$1.89

In stock

4

1

$1.89

In stock

5

CLIP

36619-44002

1
Out of stock

6

SCREW This part replaces 02112-06128.

02112-06127

1
Out of stock

7

1

$1.84

In stock

8

SWITCH ASSY, IGNITION | Includes Item(s) 9 - 10

37100-49201

1
Out of stock

9

BOLT This part replaces 37152-47010.

07130-0616B

2
Out of stock

10

2

$2.28

In stock

12

SPRING This part replaces 09443-06018.

09443-06018-XC0

1
Out of stock

13

NO DESCRIPTION AVAILABLE This part replaces 38502-49410.

38502-49420

1
Out of stock

14

NO DESCRIPTION AVAILABLE This part replaces 38501-49410.

38501-49420

1
Out of stock

15

2

$2.68

In stock

16

WASHER This part replaces 08322-11088.

08322-01087

2
Out of stock

17

LEAD WIRE, PRESSURE SWITCH

36853-45001

1
Out of stock

18

SWITCH, SIDE STAND WARNING This part replaces 37840-49400.

37840-14A01

1
Out of stock

19

2

$2.35

In stock

20

2

$2.33

In stock

21

LOCK WASHER This part replaces 08321-21058.

08321-0105A

2
Out of stock

22

REFLEX REFLECTOR, FRONT SIDE

35950-49080

2
Out of stock

23

KEY, BLANK | OPT

37146-47010

1

$18.85

In stock
