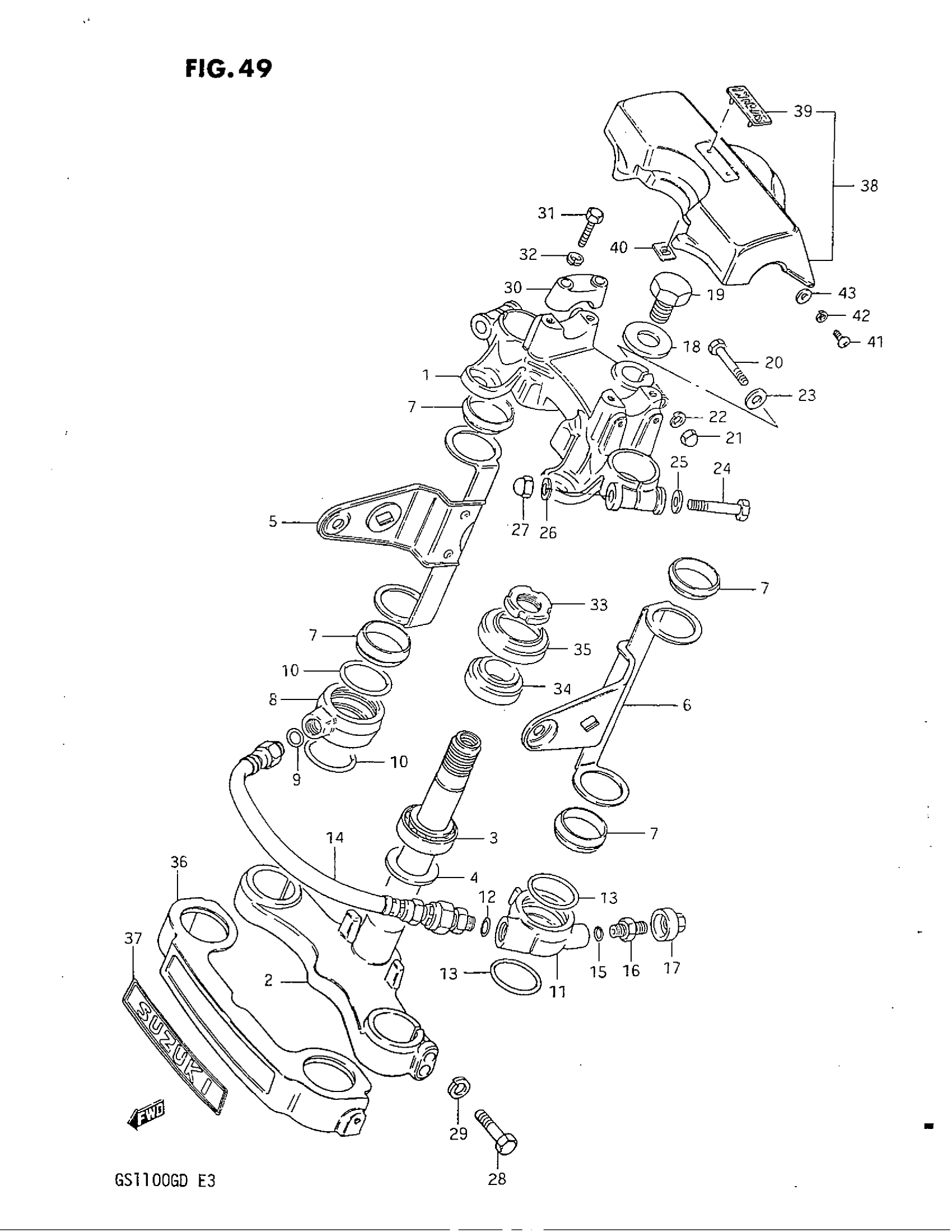

Suzuki GS1100G (1983) STEERING STEM (MODEL D) Diagram

#

Description
Price

1

STEERING STEM HEAD (BLACK)

51311-49400-291

Unavailable

2

NO DESCRIPTION AVAILABLE | Includes Item(s) 3 - 4 This part replaces 51410-49400-291.

51410-49430-291

Unavailable

3

RT 30X55X17 BEA This part replaces 09265-30005.

09265-30034

$57.05

4

SHIM, 30X40X1.5 This part replaces 08211-30402.

09181-30184

$3.07

5

BRACKET, HEADLAMP RH

51530-49470

Unavailable

6

BRACKET, HEADLAMP LH

51540-49470

Unavailable

7

CUSHION, BRACKET This part replaces 51553-49000.

51553-34300

$4.52

8

BRACKET, RH

51431-49470

Unavailable

9

.O RING (D:1.9,ID:5.7) This part replaces 51117-14210.

09280-06005

$1.49

10

O RING This part replaces 51436-49470.

51356-34370

Unavailable

11

BRACKET, LH

51432-49470

Unavailable

12

.O RING (D:1.9,ID:5.7) This part replaces 51117-14210.

09280-06005

$1.49

13

O RING This part replaces 51436-49470.

51356-34370

Unavailable

14

HOSE

51433-49471

Unavailable

15

.O RING (D:1.9,ID:5.7) This part replaces 51117-14210.

09280-06005

$1.49

16

VALVE, AIR

51293-49470

Unavailable

17

CAP

51294-49010

Unavailable

18

WASHER This part replaces 51356-49400.

51356-43530

$6.55

19

BOLT This part replaces 51353-45380.

51352-43530

$15.42

20

BOLT This part replaces 01107-08508.

01500-08507

$3.05

21

NUT This part replaces 08313-11088.

08313-10087

$2.28

22

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

23

WASHER This part replaces 08322-21088.

08322-01087

$2.13

24

BOLT This part replaces 01107-10558.

01500-1055A

$3.55

25

WASHER This part replaces 08322-21108.

08322-01107

$2.15

26

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

27

NUT This part replaces 08313-11108.

08313-10107

$2.50

28

BOLT This part replaces 01107-08358.

01500-0835B

$3.04

29

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

30

CLAMP, HANDLEBAR UPPER (BLACK

56211-29320-291

$15.51

31

BOLT This part replaces 01107-08358.

01500-0835B

$3.04

32

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

33

NUT, STEERING STEM

51631-34200

Unavailable

34

BEARING, UPPER

09265-25008

Unavailable

35

SEAL,DUST This part replaces 51643-40502.

51643-40503

$6.15

36

COVER, FRONT FORK

51870-45700

Unavailable

37

EMBLEM

68211-49420

Unavailable

38

PAD, HANDLEBAR | Includes Item(s) 39 - 40

56170-49400

Unavailable

39

EMBLEM

68281-45100

$16.87

40

NUT

09148-03002

$2.15

41

SCREW This part replaces 02112-05108.

02112-05107

$1.49

42

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

43

WASHER This part replaces 08322-21058.

08322-01057

$2.13
