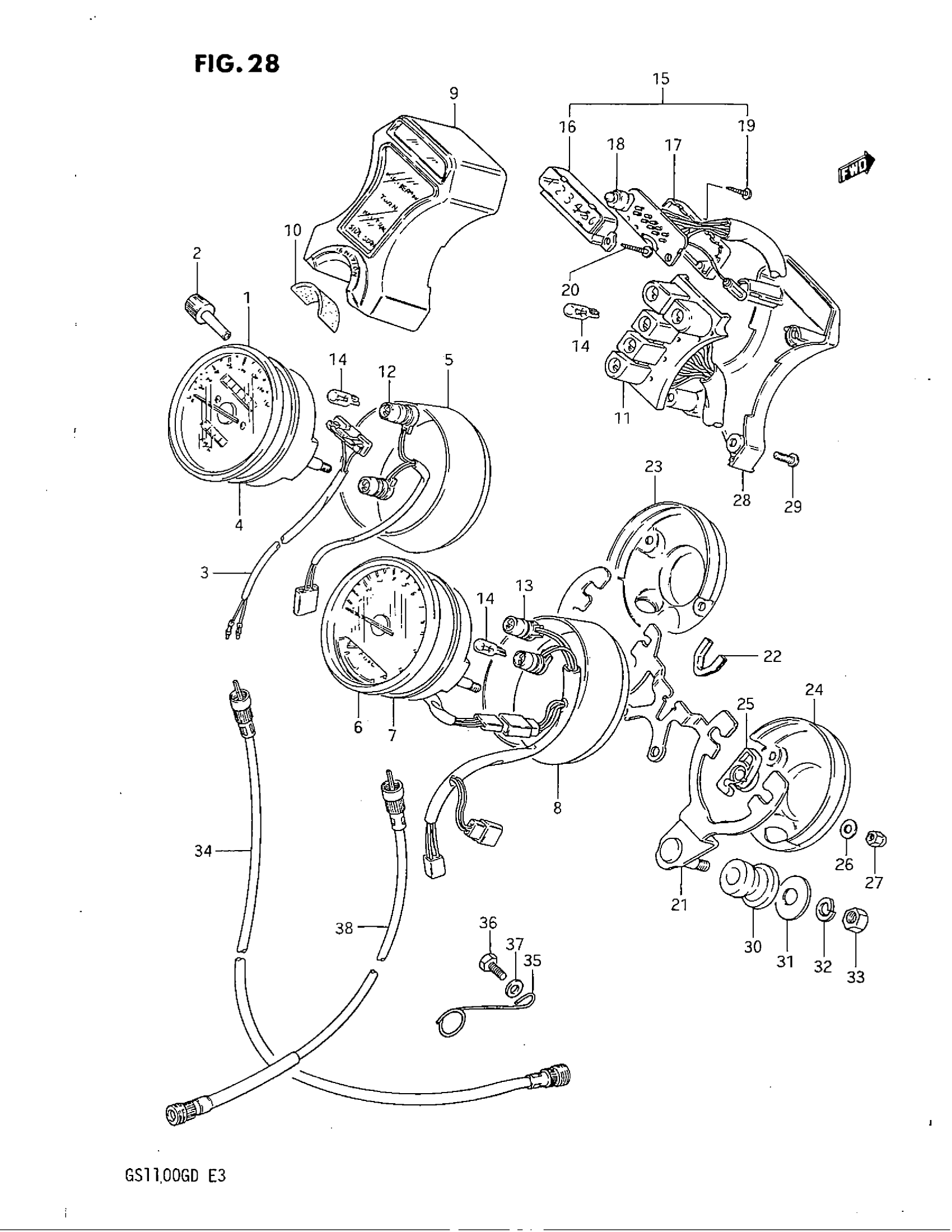

Suzuki GS1100G (1983) SPEEDOMETER - TACHOMETER Diagram

#

Description
Price

1

SPEEDOMETER (MILE/KILO) | MODEL Z This part replaces 34110-49410.

34110-49411

Unavailable

1

SPEEDOMETER (MILE/KILO) | MODEL D; Includes Item(s) 2 - 3

34110-49411

Unavailable

2

KNOB

34124-49400

$4.43

3

LEAD SWITCH

34860-45110

Unavailable

4

CUSHION

34189-49400

Unavailable

5

COVER, SPEEDOMETER

34151-49400

Unavailable

6

NO DESCRIPTION AVAILABLE | MODEL Z This part replaces 34210-49410.

34210-49400

Unavailable

6

NO DESCRIPTION AVAILABLE | MODEL D This part replaces 34210-49411.

34210-49400

Unavailable

7

CUSHION

34189-49400

Unavailable

8

COVER, TACHOMETER

34251-49400

Unavailable

9

CASE, PILOT BOX

36380-49400

Unavailable

10

SEAL

34993-47000

Unavailable

11

SOCKET, PILOT LAMP

36325-49400

Unavailable

12

SOCKET, SPEEDOMETER

34173-49400

Unavailable

13

SOCKET, TACHOMETER

34273-49400

Unavailable

14

BULB (12V,3.4W)

09471-12028

$1.99

15

INDICATOR, GEAR POSITION | MODEL Z This part replaces 36450-45101.

36450-49401

Unavailable

15

INDICATOR, GEAR POSITION | MODEL D; Includes Item(s) 16 - 19

36450-49401

Unavailable

16

CASE, INDICATOR | MODEL Z

36452-45100

Unavailable

16

CASE, INDICATOR | MODEL D

36452-49401

Unavailable

17

COVER, LOWER

36454-45100

Unavailable

18

BULB | MODEL Z

09471-12071

$7.20

18

BULB | MODEL D

09471-12078

Unavailable

19

NO DESCRIPTION AVAILABLE This part replaces 36456-45100.

03511-03146

Unavailable

20

SCREW

36457-45100

Unavailable

21

BRACKET

34950-49400

Unavailable

22

COVER, BRACKET

34953-44310

Unavailable

23

ORNAMENT, SPEEDOMETER

34193-49400

Unavailable

24

ORNAMENT, TACHOMETER

34293-49400

Unavailable

25

CUSHION

34191-49400

Unavailable

26

WASHER This part replaces 08322-21058.

08322-01057

$2.13

27

NUT This part replaces 08313-11057.

08313-1005A

$1.93

28

COVER, PILOT BOX

36383-44310

Unavailable

29

SCREW This part replaces 36387-44310.

02112-0410A

$1.49

30

CUSHION

34956-31001

$4.37

31

WASHER, EXHAUST SUPPORT This part replaces 09160-08057.

09160-08135

$2.35

32

LOCK WASHER This part replaces 08321-21085.

08321-0108A

$1.84

33

NUT This part replaces 08310-11085.

08310-0008A

$1.84

34

CABLE ASSY,SPEE This part replaces 34910-49400.

34910-31991

Unavailable

35

GUIDE, CABLE

34938-45100

$6.57

36

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97

37

WASHER This part replaces 08322-21068.

08322-01067

$2.13

38

CABLE ASSY,TACH This part replaces 34940-49400.

34940-45213

$22.66
