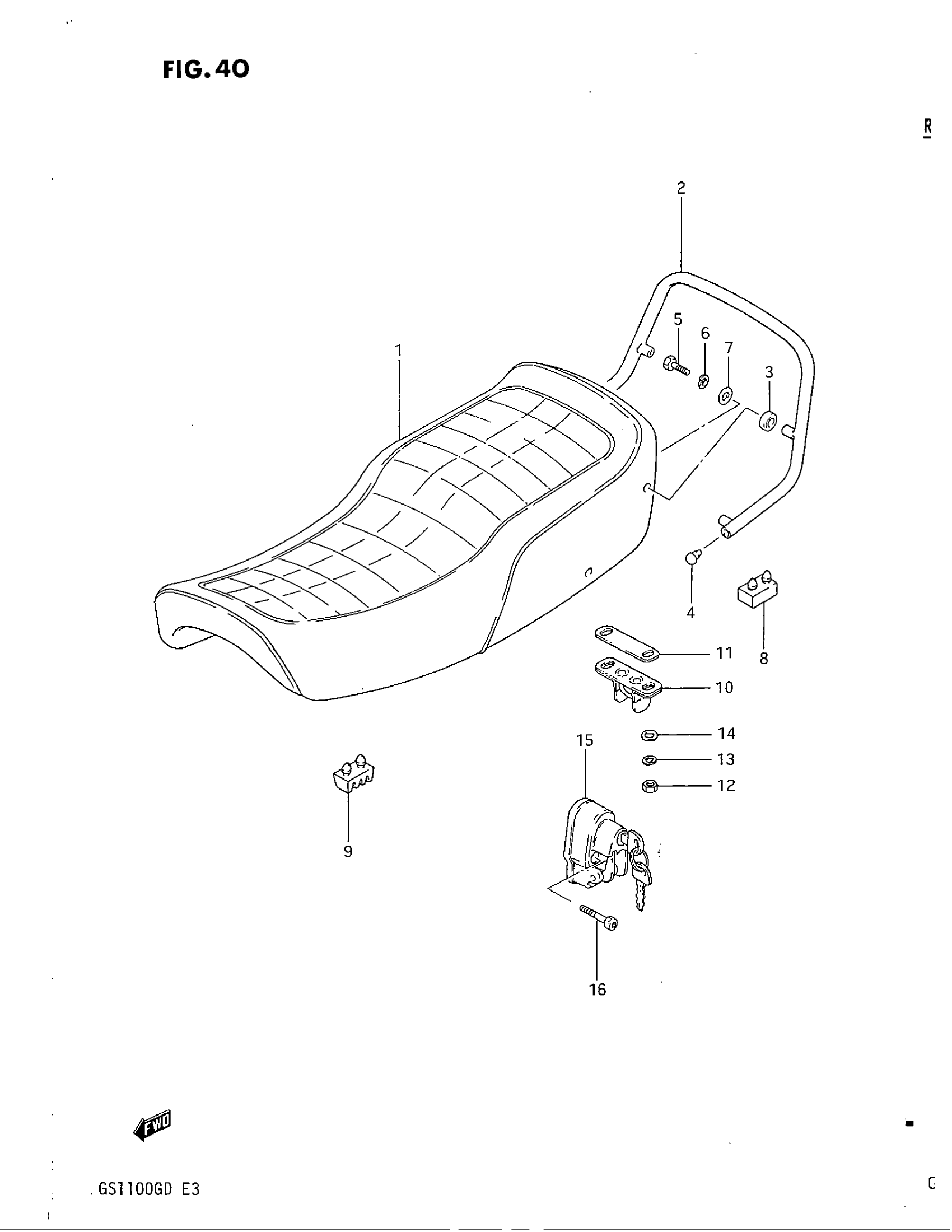

Suzuki GS1100G (1983) SEAT (MODEL Z) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 7 This part replaces 45100-49400-47T.

45100-49410-48H

Unavailable

2

HANDLE, PILLION RIDER

46210-49400

Unavailable

3

CUSHION

46212-49000

Unavailable

4

END, HANDLE

46213-49000

Unavailable

5

BOLT, REAR This part replaces 01107-08208.

01500-08207

$2.53

6

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

7

WASHER This part replaces 08322-21088.

08322-01087

$2.13

8

CUSHION

09321-08012

$3.85

9

CUSHION

45149-45330

$3.89

10

STRIKER, SEAT LOCK

45210-44101

Unavailable

11

SHIM

45217-44100

Unavailable

12

.NUT This part replaces 08310-22068.

08310-00067

$2.13

13

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

14

WASHER This part replaces 08322-21068.

08322-01067

$2.13

15

LOCK SET, HELMET

95700-34210

Unavailable

16

BOLT This part replaces 09106-05008.

07130-0525B

$2.52
