1983 Suzuki GS1100G Right Handle Switch Diagram

← All diagrams

Find the part on the Right Handle Switch diagram for your 1983 Suzuki GS1100G, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

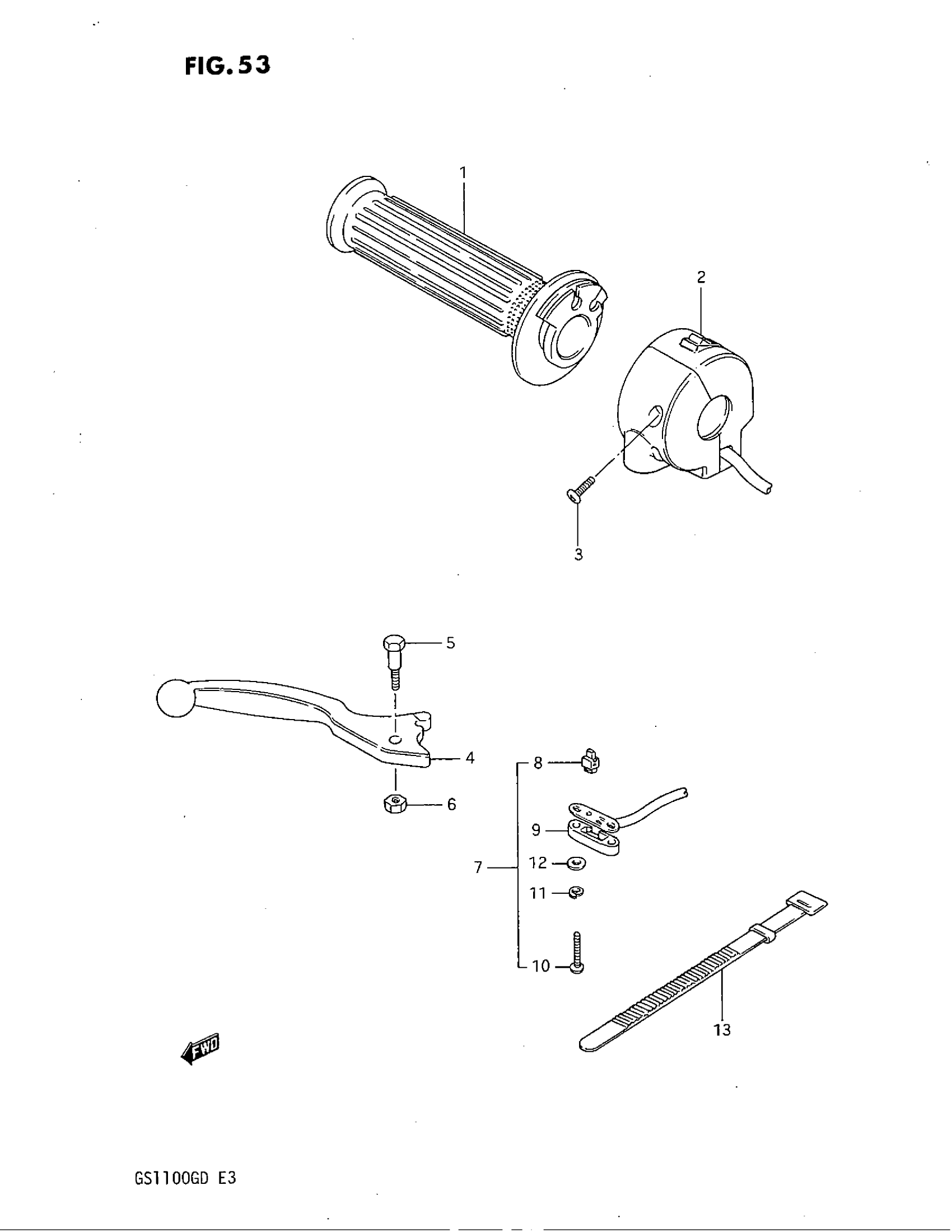

1983 Suzuki GS1100G Right Handle Switch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GRIP, THROTTLE This part replaces 57110-44100.

57110-49501

1
Out of stock

2

SWITCH ASSY,HAN This part replaces 37200-49560.

37200-49561

1
Out of stock

2

NO DESCRIPTION AVAILABLE | OPT WITH LIGHT SWITCH; Includes Item(s) 3 This part replaces 37200-49540.

37200-49541

1
Out of stock

3

SCREW This part replaces 37591-49210.

09125-05102

2
Out of stock

4

LEVER, BRAKE

57420-49101

1
Out of stock

5

BOLT

57431-18621

1
Out of stock

6

.NUT This part replaces 08319-21068.

08319-2106A

1
Out of stock

7

SWITCH ASSY, ST | Includes Item(s) 8 - 12 This part replaces 57460-49300.

57460-45500

1
Out of stock

8

HOLDER

57465-18601

1
Out of stock

9

COVER

57481-33010

1
Out of stock

10

SCREW This part replaces 09125-03105.

09125-03105-XC0

2
Out of stock

11

WASHER,LOCK This part replaces 08321-21038.

09162-03001

2
Out of stock

12

WASHER This part replaces 08322-21038.

08322-01037

2
Out of stock

13

BAND (L:120)

09407-12402

2
Out of stock
