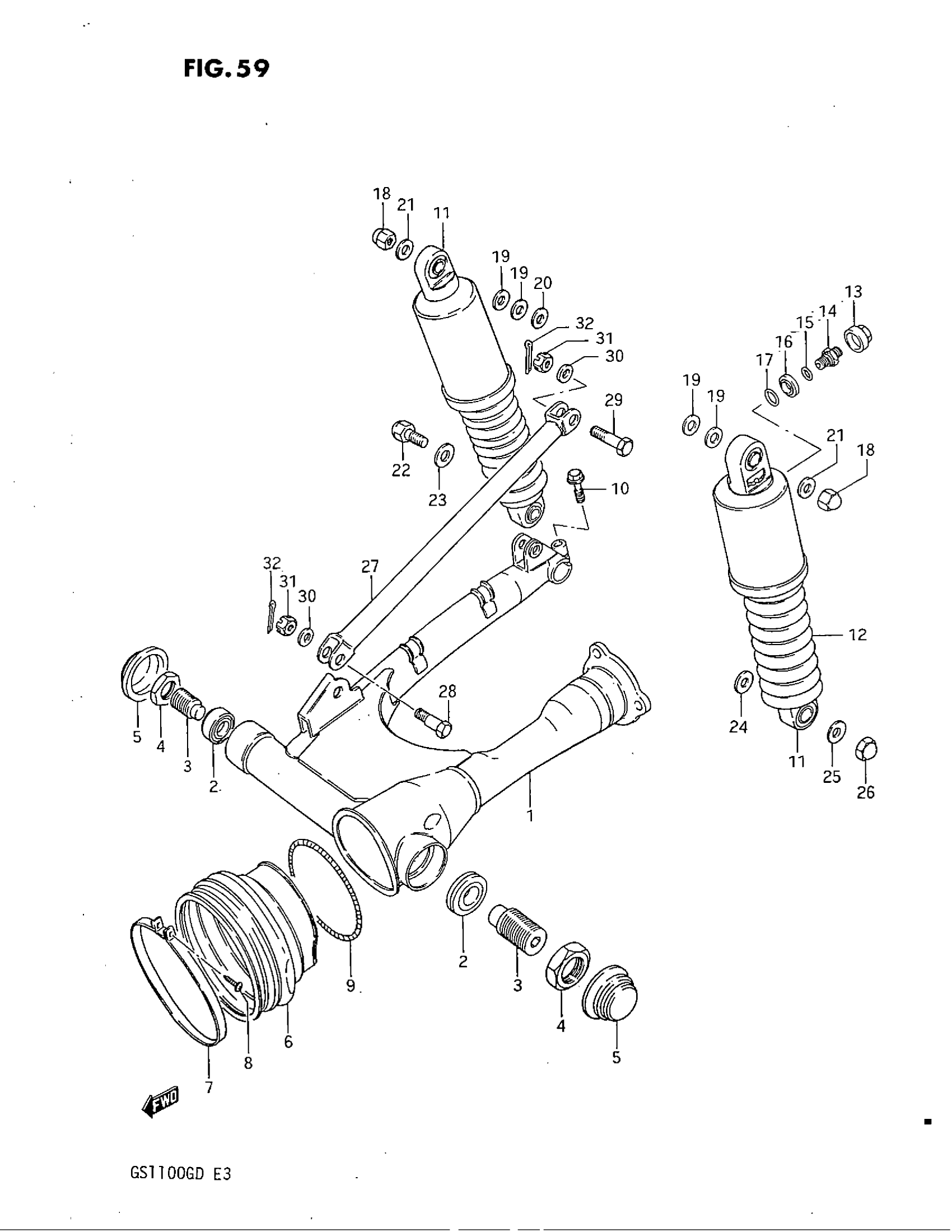

Suzuki GS1100G (1983) REAR SWINGING ARM (MODEL D) Diagram

#

Description
Price

1

REAR SWINGING ARM SET (BLACK) | Includes Item(s) 2

61100-45870-019

Unavailable

2

BEARING

09265-17012

$69.07

3

SHAFT, PIVOT

61213-45101

Unavailable

4

NUT

09140-24007

$3.89

5

CAP

61222-45100

Unavailable

6

BOOT, DRIVE SHAFT

61372-45300

Unavailable

7

CLAMP This part replaces 09402-00304.

09402-00303

$5.76

8

SCREW This part replaces 03211-04255.

03211-0425B

$2.70

9

SPRING,PROPELLE This part replaces 61373-34300.

61373-3430V

Unavailable

10

BOLT This part replaces 01517-08258.

01550-08257

$2.81

11

SHOCK ABSORBER, REAR | Includes Item(s) 12 - 17

62100-49460

Unavailable

12

BOOT

62333-49420

Unavailable

13

CAP, VALVE

51294-49000

Unavailable

14

VALVE

51293-49470

Unavailable

15

.O RING (D:1.9,ID:5.7) This part replaces 51117-14210.

09280-06005

$1.49

16

SPACER

62177-49420

Unavailable

17

O RING

62178-49420

Unavailable

18

NUT, UPPER

09145-10001

Unavailable

19

WASHER This part replaces 08322-11128.

08322-01127

$1.84

20

WASHER, FRONT AXLE This part replaces 09160-12012.

09160-12082

$3.29

21

WASHER, LOWER (10.5X24X2.3) This part replaces 09160-10001.

09160-10093

$2.35

22

BOLT, LOWER RH

09104-12014

Unavailable

23

WASHER This part replaces 09160-12004.

09160-12088

$2.00

24

WASHER This part replaces 08322-11128.

08322-01127

$1.84

25

WASHER, LOWER (10.5X24X2.3) This part replaces 09160-10001.

09160-10093

$2.35

26

NUT This part replaces 08313-11108.

08313-10107

$2.50

27

TORQUE LINK, REAR (BLACK)

64310-45300-019

Unavailable

28

BOLT,10X39 This part replaces 09111-10011.

09111-10022-XC0

Unavailable

29

BOLT, REAR

09101-10017

Unavailable

30

WASHER This part replaces 08322-11108.

08322-01107

$2.15

31

NUT This part replaces 08314-41108.

08314-4010B

$2.50

32

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49
