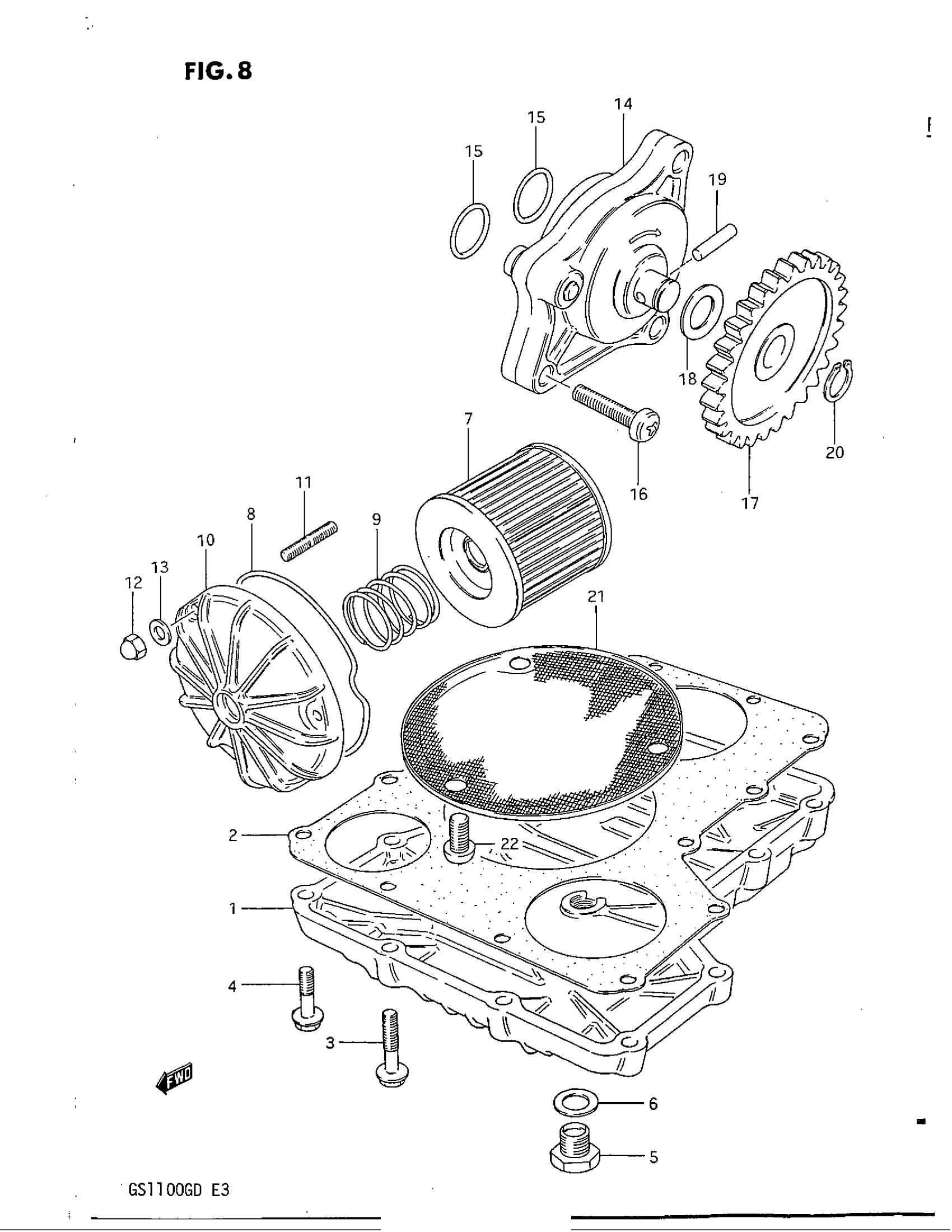

Suzuki GS1100G (1983) OIL PUMP - OIL FILTER Diagram

#

Description
Price

1

PAN, OIL | MODEL Z

11511-45100

Unavailable

1

PAN, OIL | MODEL D This part replaces 11511-49120.

11511-45300

Unavailable

2

GASKET,OIL PAN( This part replaces 11489-45001.

11489-45001-H17

Unavailable

3

BOLT | MODEL Z This part replaces 01517-06308.

01550-06307

$2.69

3

BOLT | MODEL D This part replaces 01517-06305.

01550-0630A

$2.32

4

BOLT | MODEL Z This part replaces 01517-06258.

01550-06257

$2.30

4

BOLT | MODEL D This part replaces 01517-06255.

01550-0625A

$1.97

5

PLUG (MAGNETO) This part replaces 09247-14001.

09247-14002

$5.24

6

GASKET

09168-14004

$1.83

7

FILTER, ENGINE OIL

16510-45040

$5.96

8

O RING

16518-45000

$5.70

9

SPRING

09440-32004

$2.92

10

CAP | MODEL Z

16512-45101

Unavailable

10

CAP, ENGINE OIL FILTER | MODEL D This part replaces 16512-44410.

16512-45D00

$56.93

11

STUD BOLT This part replaces 01421-06208.

01421-0620A

$1.91

12

NUT, LICENSE HOLDER | MODEL Z This part replaces 08313-11068.

08313-10067

$1.84

12

NUT | MODEL D This part replaces 08313-11065.

08313-1006A

$1.84

13

WASHER | MODEL Z This part replaces 08322-21068.

08322-01067

$2.13

13

.WASHER | MODEL D This part replaces 08322-21065.

08322-0106B

$2.26

14

PUMP, ENGINE OIL

16400-49020

Unavailable

15

O RING

09280-13004

$2.17

16

SCREW This part replaces 02112-06258.

02112-06257

$1.78

17

GEAR, DRIVEN (NT:33)

16331-49000

Unavailable

18

WASHER

08221-10185

$2.15

19

PIN

09261-04009

$1.56

20

CIRCLIP

08331-31109

$1.78

21

STRAINER, ENGINE OIL

16520-45010

Unavailable

22

SCREW This part replaces 02112-06128.

02112-06127

$1.84
