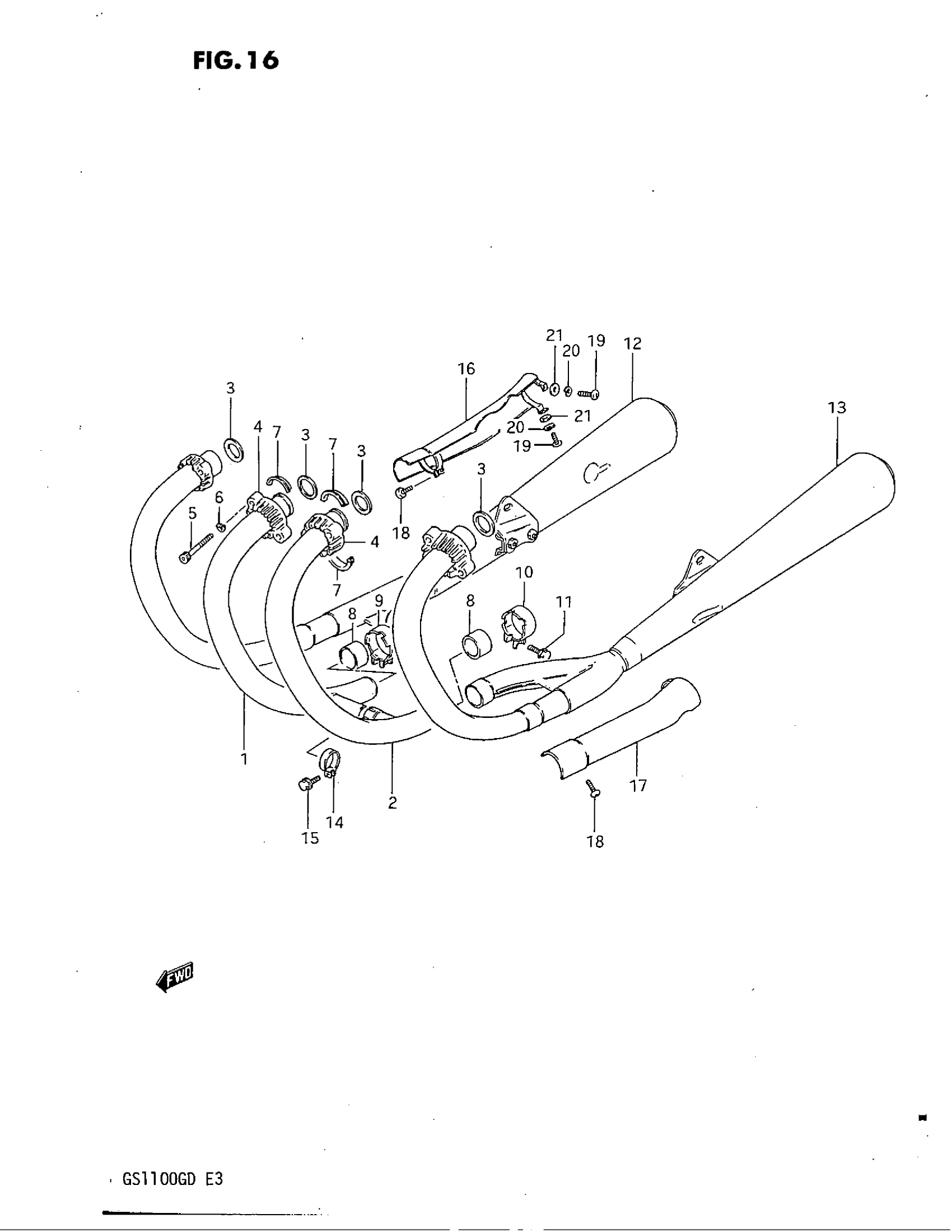

Suzuki GS1100G (1983) MUFFLER Diagram

#

Description
Price

1

PIPE, EXHAUST CENTER RH | MODEL Z This part replaces 14170-49010.

14170-49400-H01

Unavailable

1

PIPE, EXHAUST CENTER RH | MODEL D,~F.NO.100256 This part replaces 14170-49011.

14170-49400-H01

Unavailable

1

PIPE, EXHAUST CENTER RH | MODEL D,F.NO.100257~

14170-49400-H01

Unavailable

2

PIPE, EXHAUST CENTER LH | MODEL Z This part replaces 14180-49010.

14180-49400-H01

Unavailable

2

PIPE, EXHAUST CENTER LH | MODEL D,~F.NO.100256 This part replaces 14180-49011.

14180-49400-H01

Unavailable

2

PIPE, EXHAUST CENTER LH | MODEL D,F.NO.100257~

14180-49400-H01

Unavailable

3

GASKET, EXHAUST PIPE This part replaces 14181-11020.

14181-01D00

$7.11

4

CLAMP, EXHAUST PIPE FRONT This part replaces 14182-49010.

14182-49011

Unavailable

4

CLAMP (H:21)

14182-49011

Unavailable

5

BOLT, MUFFLER SUPPORT This part replaces 09106-08018.

07130-0845B

$3.99

5

BOLT This part replaces 09106-08021.

07130-08407

$3.14

6

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

7

PLATE, EXHAUST PIPE

14155-49000

$5.02

8

CONNECTOR,MUFFL This part replaces 14771-49001.

14771-49010

$27.48

9

CLAMP, CONNECTOR RH

14459-49000

Unavailable

10

CLAMP, CONNECTOR LH

14469-49000

Unavailable

11

BOLT This part replaces 01517-08258.

01550-08257

$2.81

12

MUFFLER ASSY RH This part replaces 14301-49400.

14301-49400-H01

Unavailable

12

MUFFLER, RH This part replaces 14301-49401.

14301-49440-H01

Unavailable

12

MUFFLER, RH | MODEL D,F.NO.100257~

14301-49440-H01

Unavailable

13

NO DESCRIPTION AVAILABLE This part replaces 14302-49400.

14302-49400-H01

Unavailable

13

MUFFLER, LH This part replaces 14302-49401.

14302-49440-H01

Unavailable

13

MUFFLER, LH | MODEL D,F.NO.100257~

14302-49440-H01

Unavailable

14

CLAMP, EXHAUST COUPLER

09402-37601

Unavailable

15

BOLT This part replaces 01517-06258.

01550-06257

$2.30

16

COVER, MUFFLER RH

14780-49400

Unavailable

17

COVER, MUFFLER LH

14790-49400

Unavailable

18

SCREW This part replaces 02112-05168.

02112-05167

$1.97

19

SCREW This part replaces 02112-06108.

02112-06107

$1.49

20

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

21

WASHER | *** This part replaces 08322-21068.

08322-01067

$2.13
