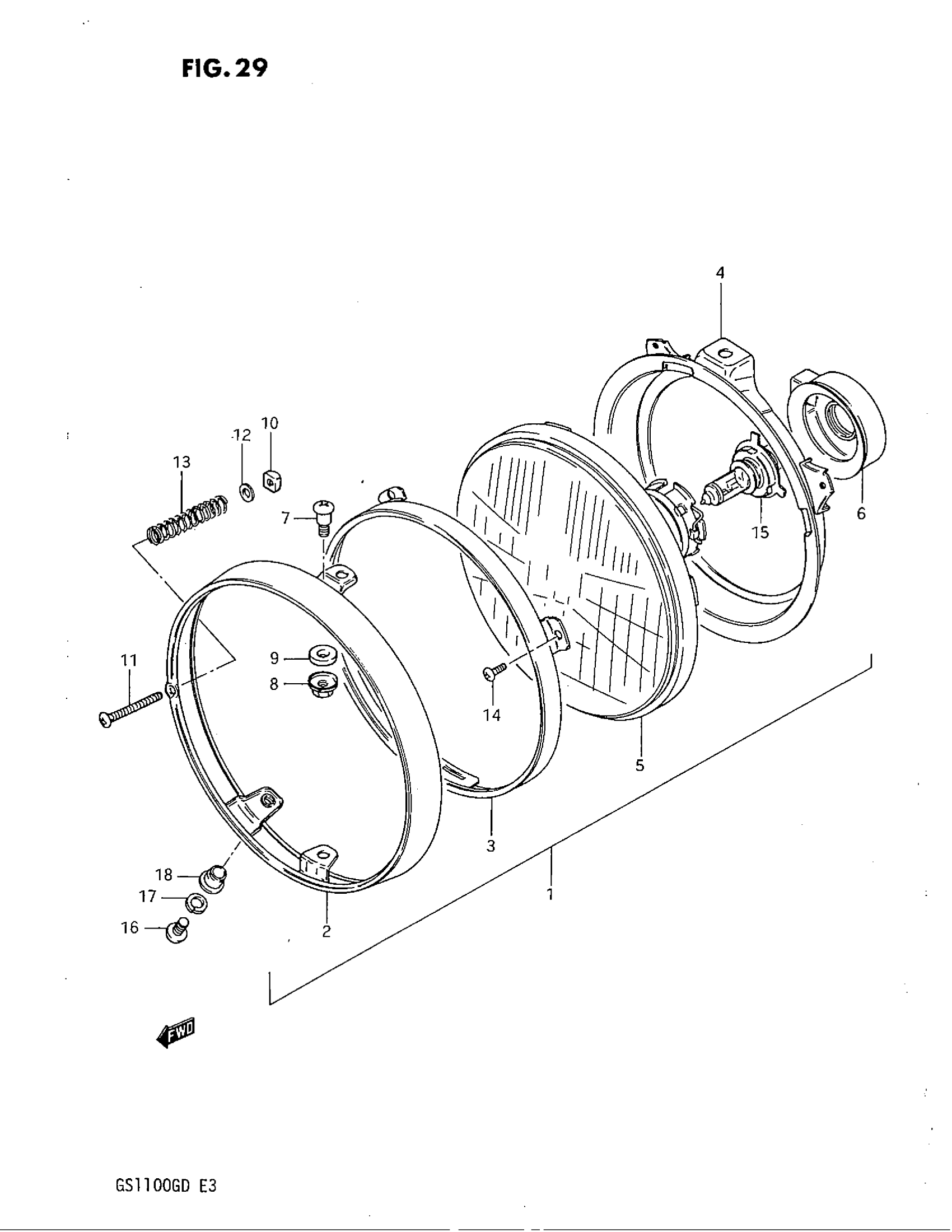

Suzuki GS1100G (1983) HEADLAMP Diagram

#

Description
Price

1

HEADLAMP ASSY | Includes Item(s) 2 - 14

35100-49010-999

Unavailable

2

RIM

35111-45600

Unavailable

3

RING

35127-45600

$38.46

4

RING, MOUNTING

35130-45600

Unavailable

5

UNIT

35121-49010

Unavailable

6

COVER This part replaces 35173-49020.

35173-45200

Unavailable

7

SCREW,HEAD LAMP This part replaces 35136-25611.

35136-35400

$4.58

8

NUT This part replaces 35135-25611.

08316-1005A

$2.19

9

SPACER

35133-45600

Unavailable

10

NUT

35135-45600

$3.65

11

SCREW

35151-45230

Unavailable

12

WASHER

35157-27630

$3.25

13

SPRING

35154-45600

Unavailable

14

SCREW This part replaces 02112-03088.

02112-0308A

$1.80

15

BULB (12V,60/55W,H4) | EXECUTED LOCALLY

09471-12060

$25.15

16

SCREW This part replaces 09125-05022.

09125-05115

$3.20

17

WASHER This part replaces 09162-05003.

09162-05002

$1.49

18

WASHER

09169-06021

$2.36
