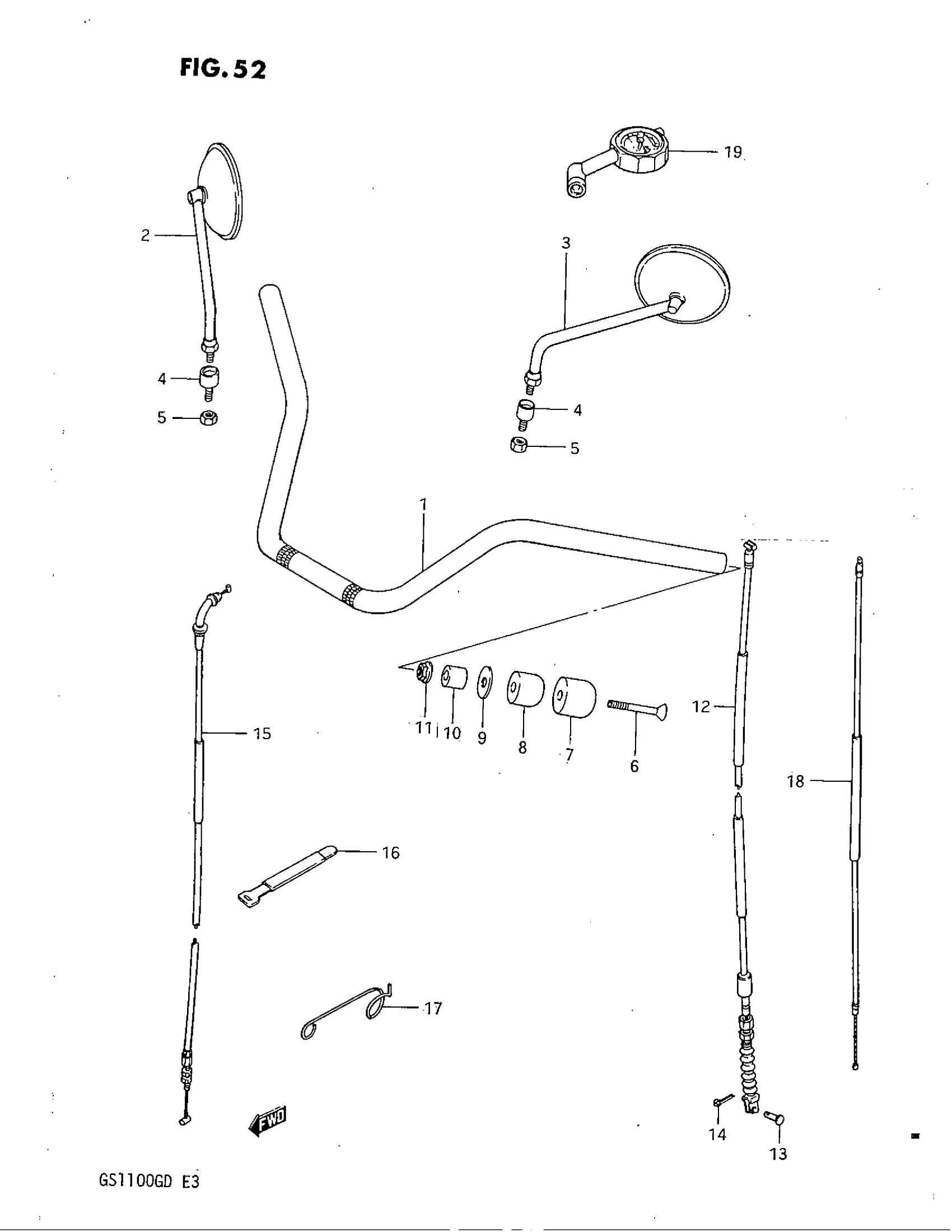

Suzuki GS1100G (1983) HANDLEBAR Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 56111-49410.

56111-49430

Unavailable

2

MIRROR ASSY,RR This part replaces 56500-45101.

56500-38AB2

$357.02

3

MIRROR ASSY,RR This part replaces 56600-45101.

56500-38AB2

$357.02

4

CUSHION, REAR VIEW MIRROR This part replaces 56700-31001.

56700-45400

$21.90

5

NUT This part replaces 08310-22108.

08310-00107

$2.19

6

SCREW 6X65 This part replaces 02132-06657.

02122-06657

$2.39

7

CAP This part replaces 56274-49400.

56274-12C00

Unavailable

8

BALANCER (NEUTRAL)

56271-49420

Unavailable

9

SPACER This part replaces 56275-34400.

56275-34401

$4.02

10

EXPANDER

56272-44500

$4.42

11

NUT

09159-06024

$2.11

12

CABLE, CLUTCH (NEUTRAL) | MODEL Z

58200-49211

Unavailable

12

CABLE,CLUTCH | MODEL D This part replaces 58200-49221.

58200-49400

Unavailable

13

PIN (NEUTRAL)

09200-06011

Unavailable

14

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

15

CABLE, THROTTIE This part replaces 58300-44052.

58300-44201

Unavailable

16

CLAMP This part replaces 09403-00069.

09404-06037

Unavailable

17

CLAMP

58626-45101

Unavailable

18

CABLE,STARTER | MODEL Z This part replaces 58410-49400.

58410-47X00

Unavailable

18

CABLE,STARTER | MODEL D This part replaces 58410-49401.

58410-47X00

Unavailable

19

GAUGE, AIR PRESSURE

96200-41330

Unavailable
