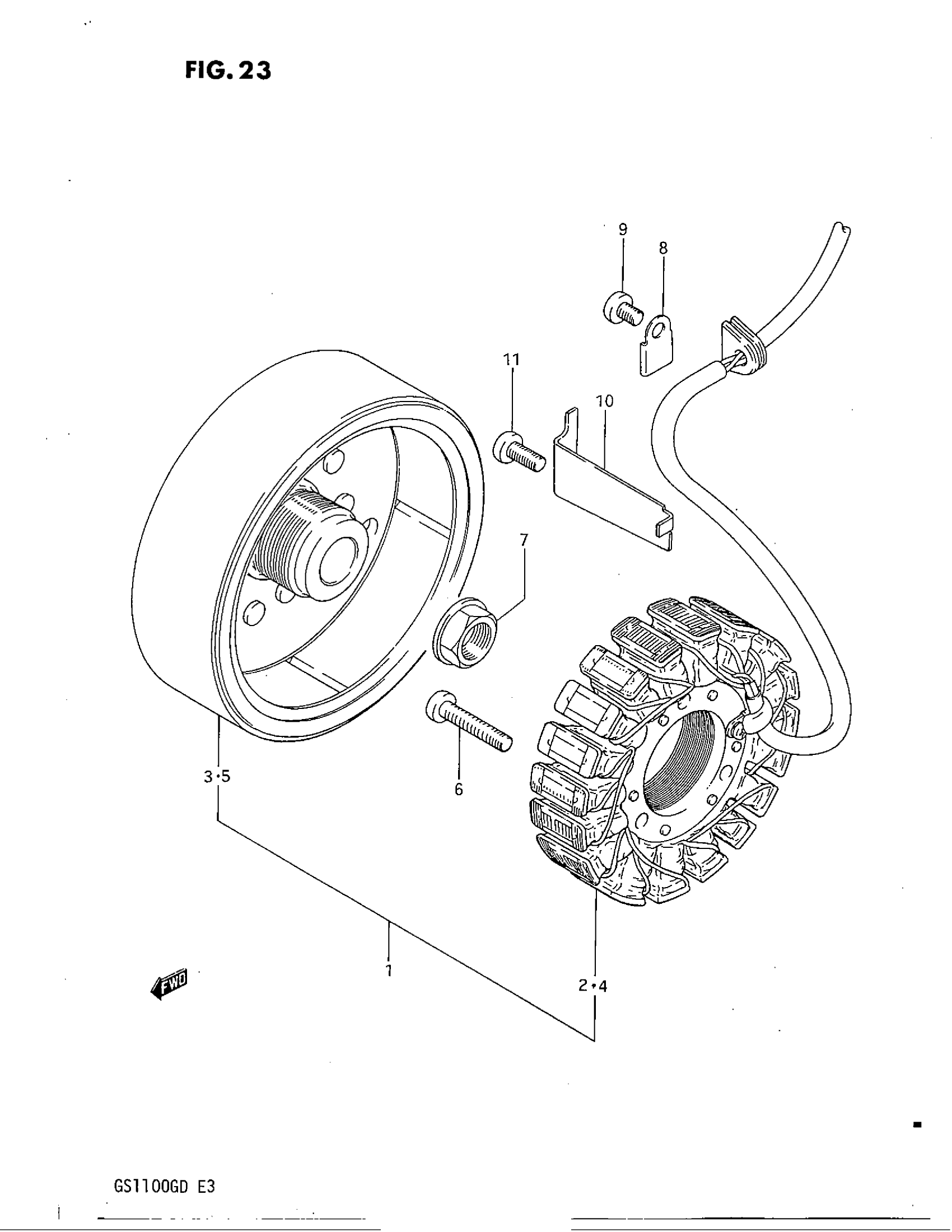

Suzuki GS1100G (1983) GENERATOR Diagram

#

Description
Price

1

STATOR | MODEL Z; Includes Item(s) 2 - 3 This part replaces 31400-49410.

31401-09300

Unavailable

2

STATOR | MODEL Z This part replaces 31401-49410.

31401-09300

Unavailable

3

ROTOR | MODEL Z This part replaces 31402-49410.

31402-49420

Unavailable

4

STATOR | MODEL D This part replaces 31401-49420.

31401-09300

Unavailable

5

ROTOR | MODEL D

31402-49420

Unavailable

6

SCREW This part replaces 02112-06308.

02112-06307

$1.97

7

NUT

31792-49200

$9.69

8

CLAMP

31497-45000

$1.92

9

SCREW This part replaces 02112-05088.

02112-05087

$1.49

10

CLAMP

31498-45000

$2.15

11

SCREW This part replaces 02112-06108.

02112-06107

$1.49
