1983 Suzuki GS1100G Gear Shifting Diagram

← All diagrams

Find the part on the Gear Shifting diagram for your 1983 Suzuki GS1100G, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

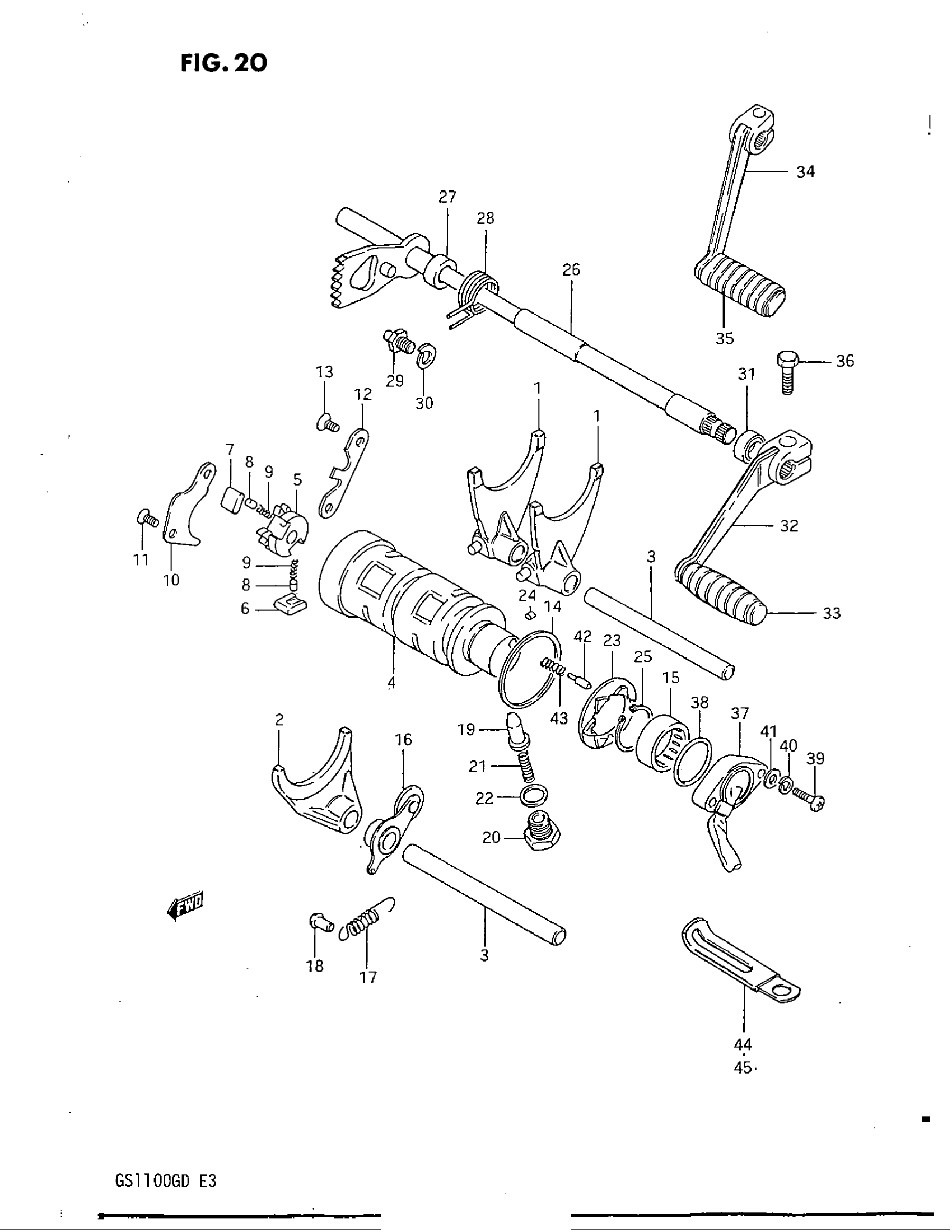

1983 Suzuki GS1100G Gear Shifting Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

2

$98.00

In stock

2

FORK, DRIVE GEAR SHIFTING

25231-45100

1
Out of stock

3

SHAFT, GEAR SHIFT FORK NO.1 This part replaces 25411-31000.

25411-18900

2
Out of stock

4

CAM, GEAR SHIFTING

25310-45101

1
Out of stock

5

GEAR, GEAR SHIFT CAM DRIVEN This part replaces 25322-11000.

25322-31310

1
Out of stock

8

PIN

09261-05003

2
Out of stock

9

SPRING

09440-04003

2

$1.76

In stock

10

LIFTER, PAWL

25331-11001

1

$7.22

In stock

11

SCREW This part replaces 02122-06128.

02122-06127

2
Out of stock

12

GUIDE, CAM

25341-18000

1
Out of stock

13

SCREW This part replaces 02122-06128.

02122-06127

2
Out of stock

14

WASHER (40X45X1)

09160-40001

1
Out of stock

15

1

$20.72

In stock

16

STOPPER, CAM

25350-45100

1
Out of stock

17

SPRING

09443-09006

1
Out of stock

18

1

$1.83

In stock

19

1

$13.50

In stock

20

HOLDER, STOPPER

25354-30000

1

$10.35

In stock

21

SPRING

09440-06020

1
Out of stock

22

GASKET

09168-14004

1

$1.96

In stock

23

1

$23.08

In stock

24

PIN This part replaces 06211-04063.

04221-04069

1
Out of stock

26

SHAFT, GEAR SHIFTING

25510-45111

1
Out of stock

27

SPACER

09180-12090

1
Out of stock

28

SPRING

09444-26017

1

$5.00

In stock

29

STOPPER, ARM This part replaces 25671-01000.

25671-01011

1
Out of stock

31

OIL SEAL (12X22X9) This part replaces 09285-12002.

09285-12006

1
Out of stock

32

LEVER ASSY, GEAR SHIFTING | MODEL Z; Includes Item(s) 33 This part replaces 25600-45110.

25600-45130

1
Out of stock

34

LEVER ASSY, GEAR SHIFTING | MODEL D; Includes Item(s) 35 This part replaces 25600-45121.

25600-45130

1
Out of stock

35

COVER | MODEL D

25652-49300

1

$5.21

In stock

36

BOLT, REAR This part replaces 01107-08208.

01500-08207

1
Out of stock

37

BODY, SWITCH

37720-45100

1

$113.83

In stock

39

2

$2.12

In stock

40

LOCK WASHER This part replaces 08321-21058.

08321-0105A

2
Out of stock

41

2

$2.33

In stock

42

CONTACT, SWITCH

09209-05011

1
Out of stock

43

SPRING

09440-04010

1
Out of stock

44

1

$1.86

In stock

45

2

$3.13

In stock
