1983 Suzuki GS1100G Clutch Diagram

← All diagrams

Find the part on the Clutch diagram for your 1983 Suzuki GS1100G, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

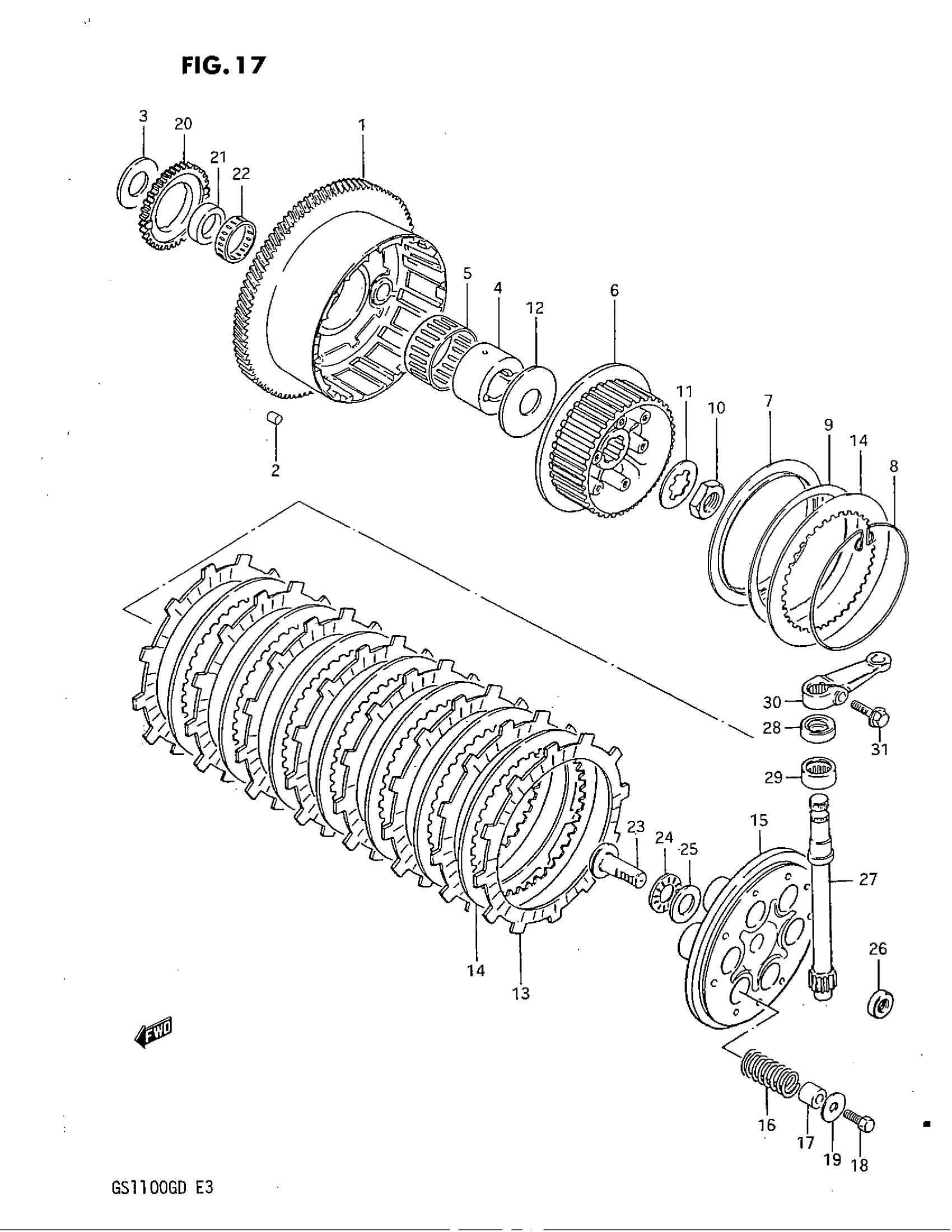

1983 Suzuki GS1100G Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GEAR,PRIMARY DR This part replaces 21200-49210.

21200-49214

1
Out of stock

2

CUSHION,PRIMARY This part replaces 21215-49000.

21215-49001

1
Out of stock

3

WASHER This part replaces 09160-25023.

09160-25055

1
Out of stock

4

SPACER

21251-49200

1
Out of stock

5

BEARING This part replaces 09263-51001.

09263-51002

1
Out of stock

6

HUB, SLEEVE This part replaces 21411-49203.

21410-00A00

1
Out of stock

7

SEAT, WAVE WASHER

21471-49100

1
Out of stock

8

STOPPER RING

21481-45100

1
Out of stock

9

WASHER, WAVE

09164-00003

1
Out of stock

10

NUT, PIVOT RH This part replaces 09140-24004.

09140-24007

1
Out of stock

11

WASHER

09167-25007

1
Out of stock

12

WASHER

09160-25022

1
Out of stock

13

PLATE, DRIVE (T:3) This part replaces 21441-49200.

21441-31D00

9
Out of stock

14

PLATE, DRIVEN

21451-49200

9
Out of stock

15

DISK, PRESSURE

21462-49010

1
Out of stock

16

SPRING This part replaces 09440-19013.

09440-19027

6
Out of stock

17

SPACER (6.2X12X14) This part replaces 09180-06088.

09180-06174

6
Out of stock

18

BOLT, REAR This part replaces 01107-06308.

01500-06307

6
Out of stock

19

WASHER (6.5X20X1.6) This part replaces 09160-06020.

09160-06066

6
Out of stock

20

GEAR, OIL PUMP DRIVE (NT:34)

16321-49000

1
Out of stock

21

SPACER

16325-45001

1
Out of stock

22

BEARING

09263-36002

1
Out of stock

23

NO DESCRIPTION AVAILABLE This part replaces 23165-49010.

23165-49011

1
Out of stock

24

BEARING

09263-15003

1
Out of stock

25

WASHER, CLUTCH PUSH This part replaces 09160-15015.

09160-15045

1
Out of stock

26

OIL SEAL

09285-10003

1
Out of stock

27

PINION, RELEASE

23261-49001

1
Out of stock

28

OIL SEAL (12X22X9) This part replaces 09285-12002.

09285-12006

1
Out of stock

29

BEARING

09263-15012

1
Out of stock

30

ARM, RELEASE | MODEL Z

23271-49100

1
Out of stock

30

ARM, CLUTCH RELEASE | MODEL D This part replaces 23271-49200.

23271-49100

1
Out of stock

31

BOLT This part replaces 01517-06208.

01550-06207

1
Out of stock
