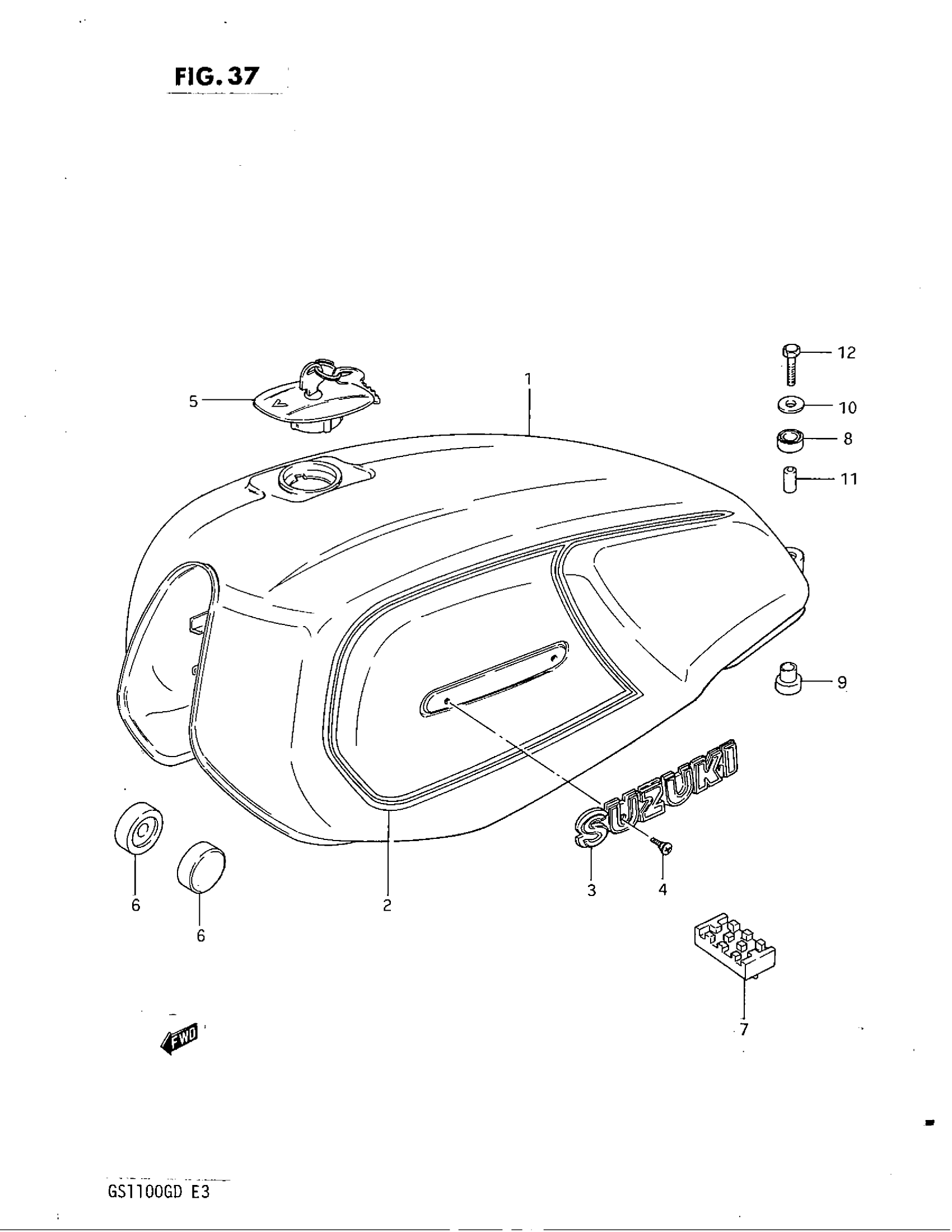

Suzuki GS1100G (1983) FUEL TANK (MODEL Z) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 44100-49410-019.

44110-45110-13L

Unavailable

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 This part replaces 44100-49410-14A.

44110-45110-13L

Unavailable

2

TAPE SET (GOLD)

68110-49410-764

Unavailable

3

EMBLEM

68111-44600

Unavailable

4

SCREW This part replaces 02132-03065.

02122-0306B

$2.26

5

CAP SET,FUEL TA This part replaces 44200-49703.

44200-49811

$144.42

6

CUSHION, FRONT

09329-10016

$3.10

7

CUSHION, CENTER

44541-49400

Unavailable

8

CUSHION (9X24X18) This part replaces 09320-10020.

09320-10071

$2.60

9

CUSHION, REAR

09320-14013

$2.11

10

WASHER, FRONT This part replaces 09160-06004.

09160-06134

$1.91

11

SPACER This part replaces 09180-06091.

09180-06273

$3.05

12

BOLT, REAR This part replaces 01107-06308.

01500-06307

$2.48
