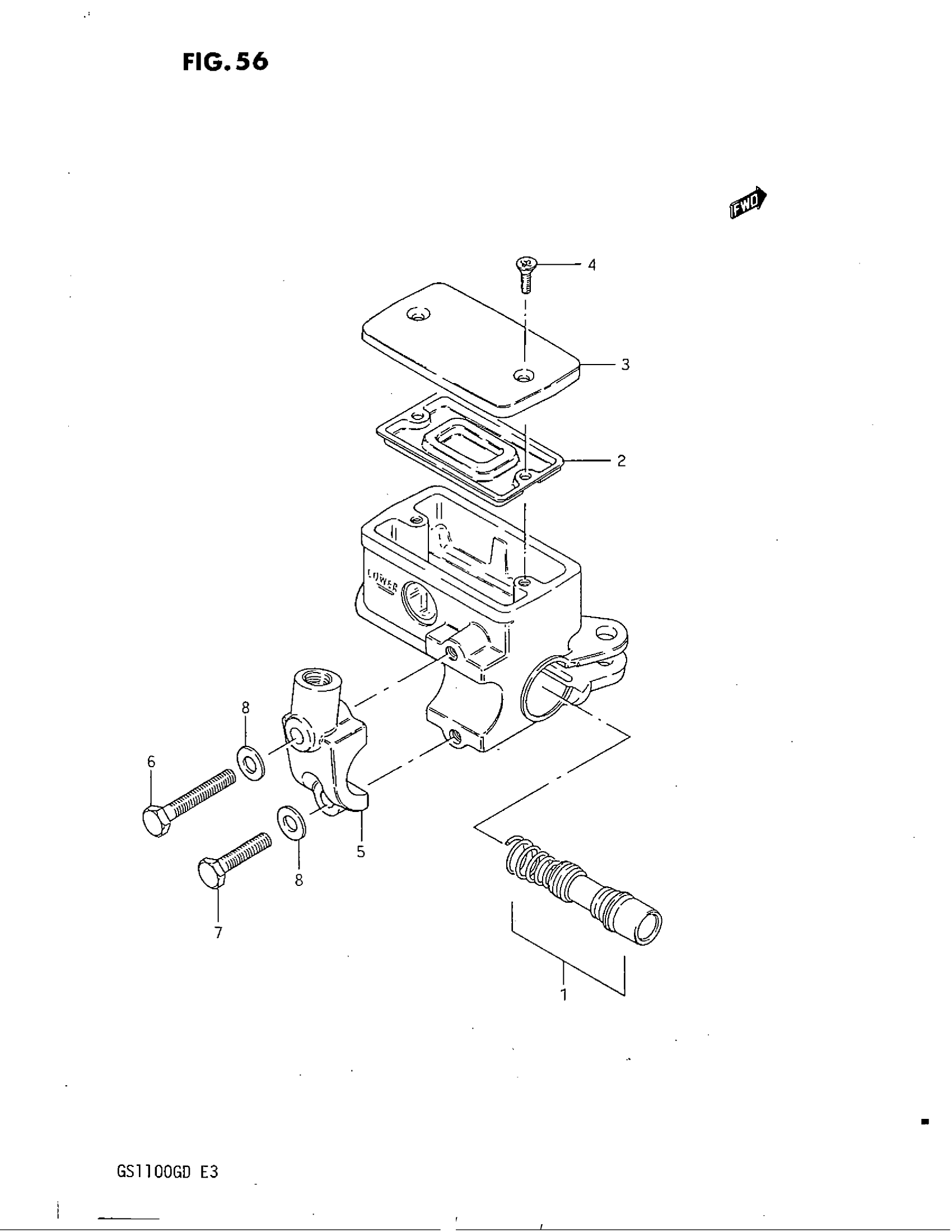

Suzuki GS1100G (1983) FRONT MASTER CYLINDER Diagram

#

Description

Price

NO DESCRIPTION AVAILABLE | MODEL Z This part replaces 59600-49430.

59600-45X50

Unavailable

NO DESCRIPTION AVAILABLE | MODEL D; Includes Item(s) 1 - 8 This part replaces 59600-49431.

59600-45X50

Unavailable

1

PISTON & CUP SET

59600-45831

Unavailable

2

DIAPHRAGM This part replaces 69667-49300.

59667-49460

$9.78

3

CAP This part replaces 69669-49330.

59669-41C00

$32.56

4

SCREW

69689-49300

$1.91

5

HOLDER

59671-44300

$17.37

6

BOLT This part replaces 01107-06408.

01500-0640B

$2.62

7

BOLT This part replaces 01107-06258.

01500-06257

$1.97

8

WASHER This part replaces 08322-21068.

08322-01067

$2.13
