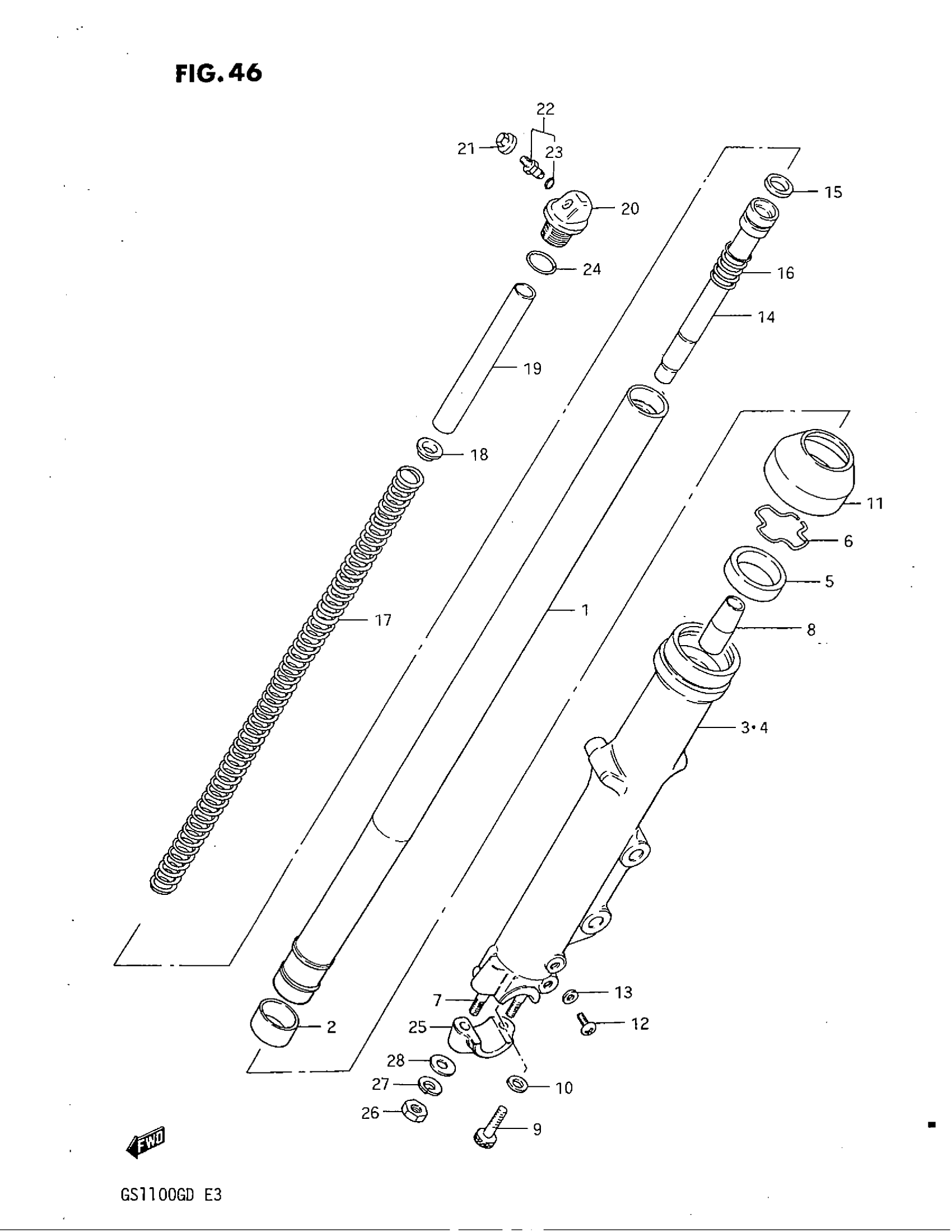

Suzuki GS1100G (1983) FRONT FORK (MODEL Z) Diagram

#

Description
Price

DAMPER ASSY, RH

51103-49400

Unavailable

DAMPER ASSY, LH | Includes Item(s) 1 - 28

51104-49400

Unavailable

1

INNER TUBE

51110-49400

Unavailable

2

PISTON

51121-49200

$19.48

3

OUTER TUBE, RH

51130-49400

Unavailable

4

OUTER TUBE, LH

51140-49400

Unavailable

5

SEAL, OIL This part replaces 51153-49000.

51153-08C20

$20.47

6

RING, OIL SEAL STOPPER

51156-40301

$5.05

7

STUD BOLT (L:30) This part replaces 09108-08127.

09108-08142

$3.18

8

PIECE, OIL LOCK

51195-49071

$21.43

9

BOLT

51147-16510

$4.34

10

GASKET

51148-41310

$2.26

11

DUST SEAL

51173-49002

$16.96

12

SCREW This part replaces 02112-04088.

02112-04087

$1.49

13

GASKET

51183-03010

$2.07

14

CYLINDER

51146-49000

Unavailable

15

RING PISTON

51196-49000

$7.78

16

SPRING

51177-49000

Unavailable

17

SPRING

51171-49000

Unavailable

18

GUIDE, SPRING

51172-38010

Unavailable

19

SPACER

51176-45100

Unavailable

20

CAP, UPPER This part replaces 51351-49400.

51351-41211

Unavailable

21

CAP, VALVE

51294-49000

Unavailable

22

VALVE

51293-49001

Unavailable

23

O RING

51117-41211

Unavailable

24

O RING

51117-16310

Unavailable

25

HOLDER, AXLE

51132-49000

Unavailable

26

NUT, CLUTCH RELEASE NO.1 This part replaces 09140-08005.

09140-08017

$2.27

27

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

28

WASHER This part replaces 08322-21088.

08322-01087

$2.13
