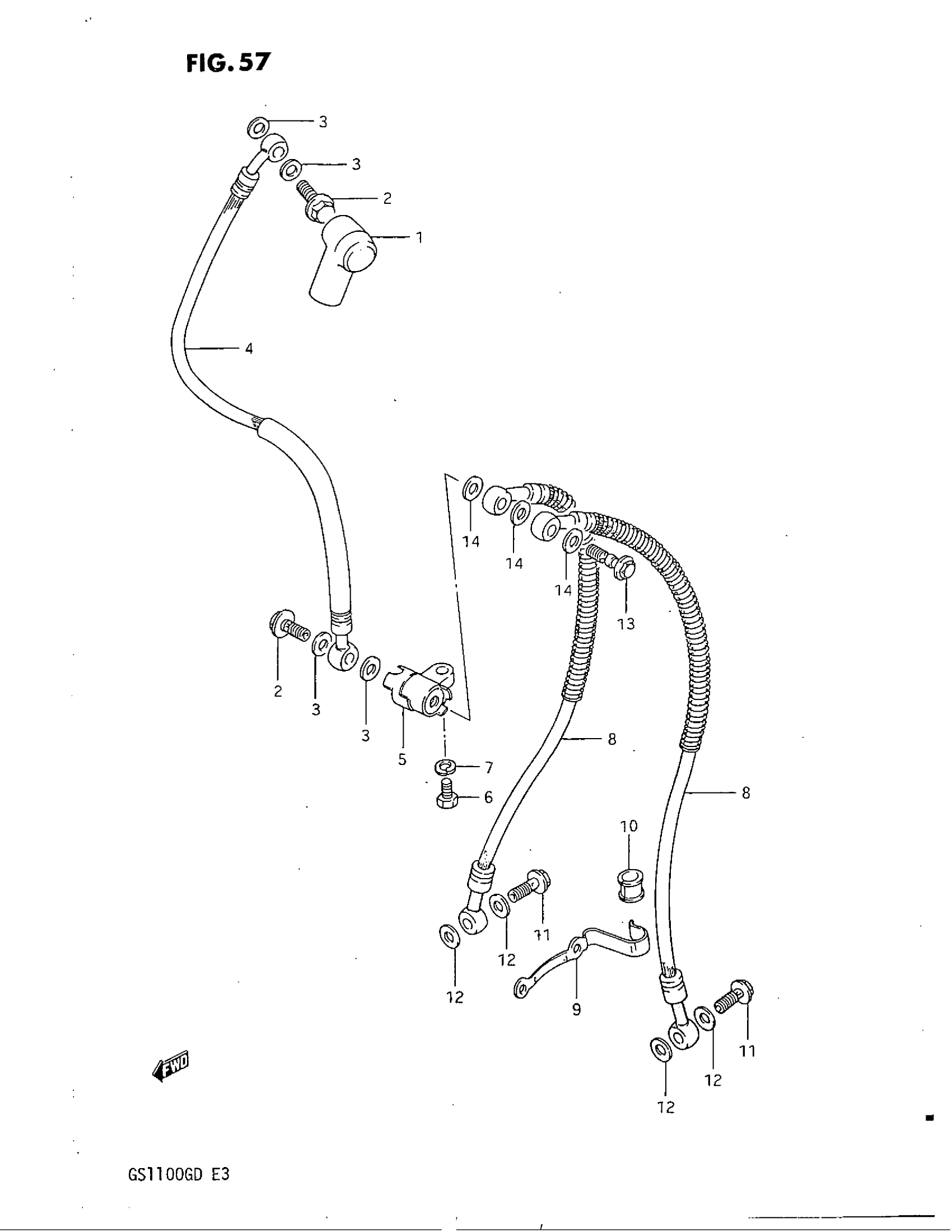

Suzuki GS1100G (1983) FRONT BRAKE HOSE Diagram

#

Description
Price

1

BOOT, MASTER CYLINDER

59711-49001

$7.51

2

UNION | MODEL Z This part replaces 09360-10007.

09360-10017

$3.42

2

UNION | MODEL D This part replaces 09360-10009.

09360-10017

$3.42

3

WASHER (10X15X1.5) This part replaces 09161-10005.

09161-10009

$1.84

4

HOSE, BRAKE NO.1

59480-49400

Unavailable

5

JOINT, BRAKE HOSE This part replaces 59491-45000.

59491-45001

Unavailable

6

BOLT This part replaces 01107-06208.

01500-06207

$2.28

7

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

8

HOSE BRAKE This part replaces 59240-45000.

59240-49400

Unavailable

9

CLAMP, HOSE

59268-49001

Unavailable

10

BUSHING

59244-49000

Unavailable

11

UNION | MODEL Z This part replaces 09360-10007.

09360-10017

$3.42

11

UNION | MODEL D This part replaces 09360-10009.

09360-10017

$3.42

12

WASHER (10X15X1.5) This part replaces 09161-10005.

09161-10009

$1.84

13

UNION BOLT This part replaces 09360-10008.

09360-10018

$6.80

14

WASHER (10X15X1.5) This part replaces 09161-10005.

09161-10009

$1.84
