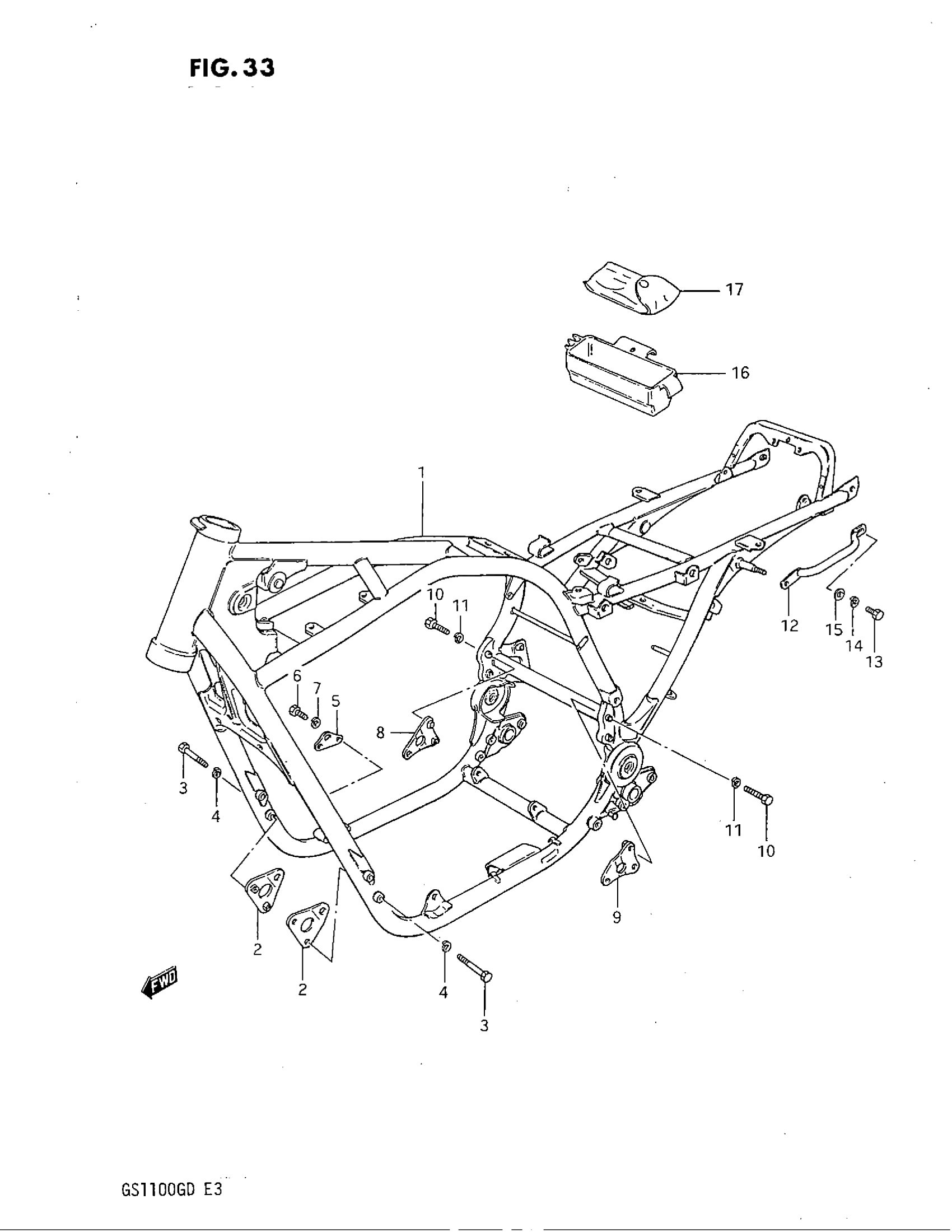

Suzuki GS1100G (1983) FRAME Diagram

#

Description
Price

1

FRAME (BLACK) | MODEL Z This part replaces 41100-49400-019.

41100-49401-019

Unavailable

1

FRAME (BLACK) | MODEL D

41100-49401-019

Unavailable

2

PLATE, NO.1 (BLACK)

41910-45101-019

Unavailable

3

BOLT This part replaces 01107-08658.

01500-0865B

$3.49

4

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

5

PLATE, NO.2 (BLACK)

41993-45000-019

Unavailable

6

PLUG, DRAIN This part replaces 01107-08168.

01500-0816B

$2.50

7

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

8

PLATE, NO.3 RH (BLACK)

41970-45100-019

Unavailable

9

PLATE, NO.3 LH (BLACK)

41980-45350-019

Unavailable

10

BOLT This part replaces 01107-08408.

01500-0840A

$2.60

11

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

12

GRIP, FRAME HANDLE | MODEL Z This part replaces 41611-49400.

41611-49401

Unavailable

12

GRIP, FRAME HANDLE | MODEL D

41611-49401

Unavailable

13

PLUG, DRAIN This part replaces 01107-08168.

01500-0816B

$2.50

14

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

15

WASHER This part replaces 08322-11088.

08322-01087

$2.13

16

HOLDER, TOOL

41551-45110

Unavailable

17

TOOL ASSY This part replaces 09800-00231.

09800-21025

Unavailable
