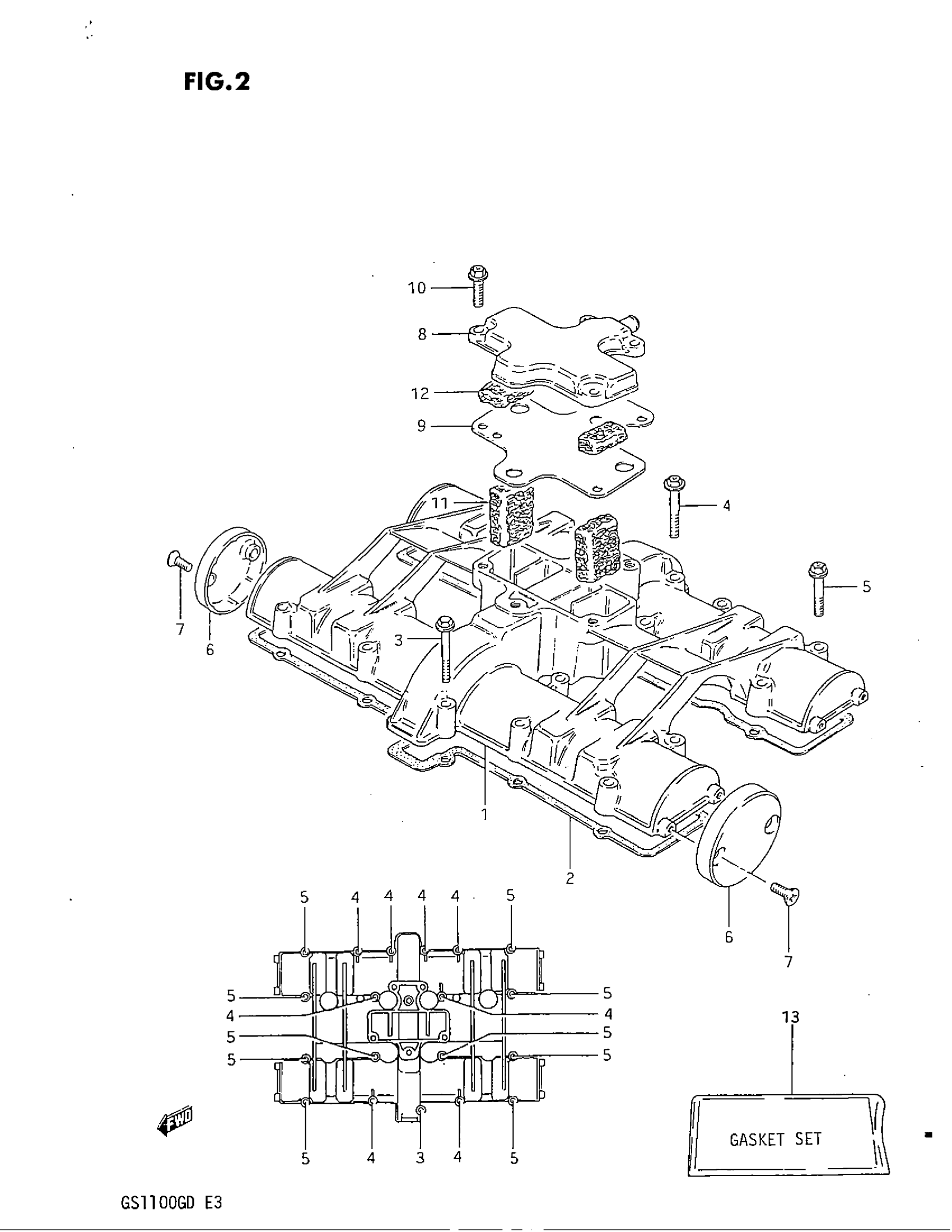

Suzuki GS1100G (1983) CYLINDER HEAD COVER (MODEL D) Diagram

#

Description

Price

1

COVER, CYLINDER HEAD

11171-49030

Unavailable

2

GASKET,HEAD COV This part replaces 11173-49021.

11173-49022

Unavailable

3

BOLT This part replaces 01517-06455.

01550-0645A

$2.41

4

BOLT This part replaces 01517-06405.

01550-0640A

$2.42

5

BOLT This part replaces 01517-06355.

01550-0635A

$2.32

6

CAP, CYLINDER HEAD COVER

11174-49000

Unavailable

7

SCREW

09127-05013

$1.49

8

COVER, BREATHER

11176-47042

Unavailable

9

BREATHER CVR GA This part replaces 11177-47001.

11177-47001-H17

$14.97

10

BOLT This part replaces 01517-06205.

01550-0620A

$1.97

11

SEPARATOR,OIL B This part replaces 11186-45000.

11186-45001

Unavailable

12

SEPARATOR,OIL B This part replaces 11187-45000.

11187-45001

Unavailable

13

GASKET SET | OPT This part replaces 11401-49872.

11402-49870

Unavailable
