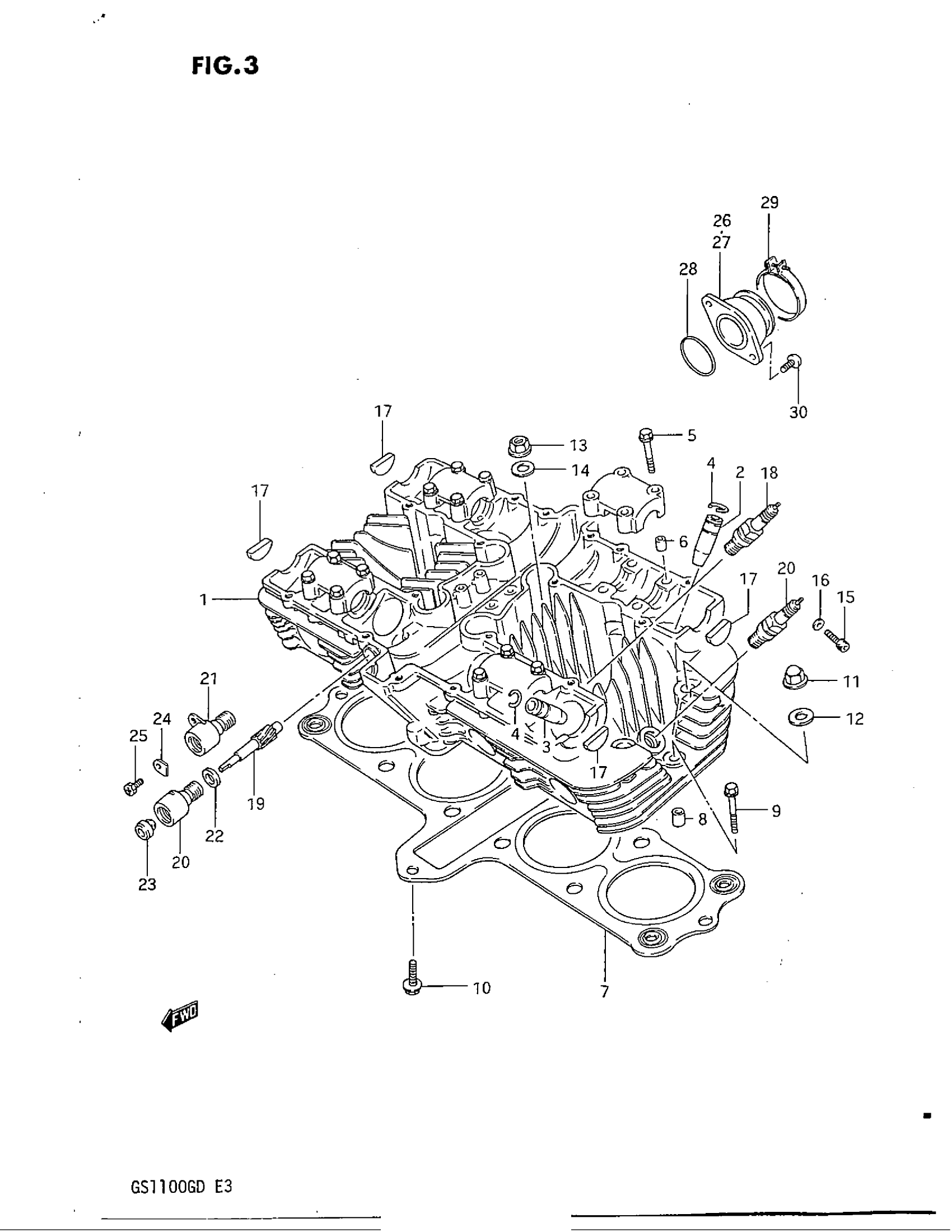

Suzuki GS1100G (1983) CYLINDER HEAD Diagram

NO DESCRIPTION AVAILABLE | MODEL Z This part replaces 11100-49020.

11100-49021

Unavailable

CYLINDER HEAD SET | MODEL D; Includes Item(s) 2 - 6

11100-49060

Unavailable

GUIDE, INTAKE VALVE

11115-45740

$40.73

GUIDE, EXHAUST VALVE

11116-45740

Unavailable

RING, VALVE GUIDE

09381-10003

$2.47

BOLT (6X39)

09103-06026

$1.98

PIN

09206-08001

$1.78

GASKET | MODEL Z This part replaces 11141-49400.

11141-49410

Unavailable

GASKET | MODEL D

11141-49410

Unavailable

PIN

04211-11189

$1.78

BOLT (CHROME) | MODEL Z This part replaces 01517-06458.

01550-06457

$2.69

BOLT | MODEL D This part replaces 01517-06455.

01550-0645A

$2.41

BOLT | MODEL Z This part replaces 01517-06308.

01550-06307

$2.69

BOLT | MODEL D This part replaces 01517-06305.

01550-0630A

$2.32

NUT

09159-10026

$6.20

GASKET

09168-10017

$3.04

NUT, WHEEL SET This part replaces 08316-16108.

08316-10107

$2.39

WASHER

09160-10039

$2.26

BOLT, PICK UP & CLAMP This part replaces 09106-05006.

07130-0510B

$2.62

GASKET

09168-05010

$1.71

PLUG, CYLINDER HEAD

09241-23002

$6.17

SPARK PLUG (NGK,B8ES)

09482-00091

$3.01

SPARK PLUG W24E This part replaces 09482-00196.

09482-00247-111

Unavailable

GEAR, TACHO. DRIVEN (NT:10) This part replaces 26431-45001.

26431-45002

$48.23

SLEEVE | MODEL Z This part replaces 26441-45000.

26441-49000

$30.58

SLEEVE | MODEL D

26441-49000

$30.58

SEAL BAND

26451-45000

$5.05

OIL SEAL

09289-05002

$8.43

PLATE

26449-33000

$4.35

SCREW

09128-05101

$1.49

PIPE,INTAKE,R This part replaces 13110-49100.

13110-49101

$38.82

PIPE,INTAKE,L This part replaces 13120-49100.

13120-49101

Unavailable

O-RING (D:2.4,ID:39.7) This part replaces 09280-40003.

09280-40020

$2.91

CLAMP

09402-54303

$3.91

SCREW | MODEL Z This part replaces 02112-06168.

02112-06167

$1.49

SCREW | MODEL D This part replaces 02112-06165.

02112-0616A

$1.49
