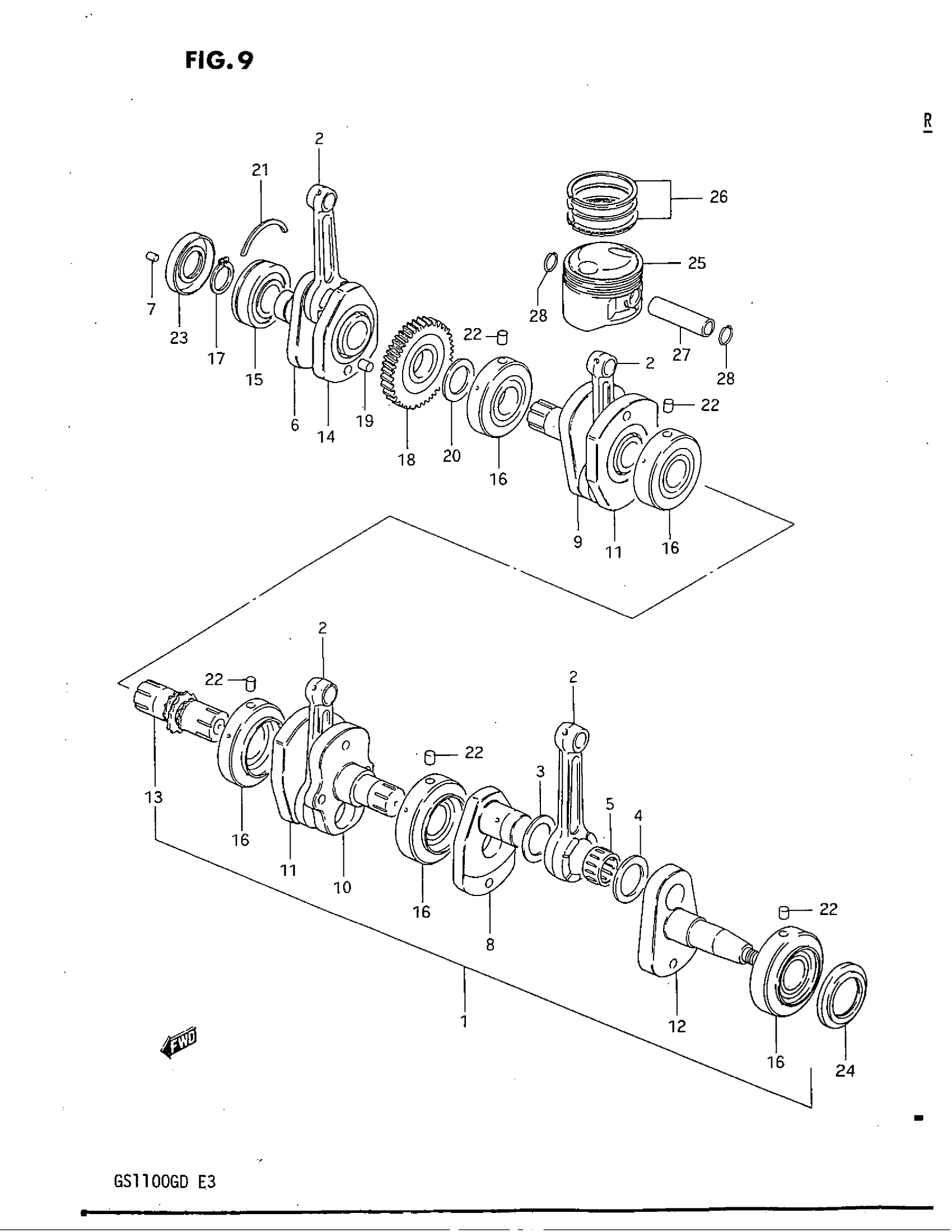

Suzuki GS1100G (1983) CRANKSHAFT Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL Z This part replaces 12200-49400.

12200-49402

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL D; Includes Item(s) 2 - 20 This part replaces 12200-49401.

12200-49402

Unavailable

2

ROD, CONNECTING

12161-49400

Unavailable

3

WASHER

09160-31002

$7.82

4

WASHER

09160-31003

Unavailable

5

BEARING (31X39X21) This part replaces 09263-31005.

09263-31004

$64.62

6

CRANKSHAFT, RH

12220-49202

Unavailable

7

PIN (4X13.8)

04221-04089

$1.49

8

NO DESCRIPTION AVAILABLE This part replaces 12230-49201.

12230-49202

Unavailable

9

CRANKSHAFT, MIDDLE RH

12241-49400

Unavailable

10

NO DESCRIPTION AVAILABLE This part replaces 12271-49400.

12241-49203

Unavailable

11

NO DESCRIPTION AVAILABLE This part replaces 12250-49201.

12250-49202

Unavailable

12

CRANKSHAFT, LH | MODEL Z This part replaces 12261-49301.

12261-49302

Unavailable

12

CRANKSHAFT, LH | MODEL D

12261-49302

Unavailable

13

SHAFT, CHAIN DRIVE (NT:15)

12281-49200

Unavailable

14

WEB, CRANKSHAFT RH

12231-49400

Unavailable

15

BEARING, RH

09262-30033

Unavailable

16

BEARING This part replaces 09264-32005.

09264-32009

$201.55

17

CIRCLIP This part replaces 08331-11308.

08331-31309

$2.57

18

GEAR, PRIMARY DRIVE (NT:49)

21110-49010

Unavailable

19

PIN

04221-08129

$1.99

20

WASHER

09160-32008

Unavailable

21

C RING, BEARING RH

09390-72004

Unavailable

22

PIN

04221-07129

$1.86

23

OIL SEAL, RH

09283-30021

$19.20

24

OIL SEAL, STARTER CLUTCH GEAR

09289-48002

$10.77

25

PISTON (STD) | ~E.NO.112761 This part replaces 12111-49400.

12111-49403

Unavailable

25

PISTON (STD) | E.NO.112762~ This part replaces 12111-49402.

12111-49403

Unavailable

25

PISTON (STD) | MODEL D

12111-49403

Unavailable

25

NO DESCRIPTION AVAILABLE | OPT,~E.NO.112761 This part replaces 12111-49400-050.

12103-49841-050

Unavailable

25

NO DESCRIPTION AVAILABLE | OPT,E.NO.112762~ This part replaces 12111-49402-050.

12103-49841-050

Unavailable

25

NO DESCRIPTION AVAILABLE | OPT,MODEL D This part replaces 12111-49403-050.

12103-49841-050

Unavailable

25

NO DESCRIPTION AVAILABLE | OPT,~E.NO.112761 This part replaces 12111-49400-100.

12103-49841-100

Unavailable

25

NO DESCRIPTION AVAILABLE | OPT,E.NO.112762~ This part replaces 12111-49402-100.

12103-49841-100

Unavailable

25

NO DESCRIPTION AVAILABLE | OPT,MODEL D This part replaces 12111-49403-100.

12103-49841-100

Unavailable

26

RING SET, PISTON This part replaces 12140-49220.

12140-49270

$44.54

26

RING SET,PISTON | OPT This part replaces 12140-49220-050.

12140-49270-050

$56.23

26

RING SET, PISTON (OS:1.0) | OPT This part replaces 12140-49220-100.

12140-49221-100

Unavailable

27

PIN, PISTON | ~E.NO.112761 This part replaces 12151-49400.

12151-37F00

$14.15

27

PIN, PISTON | E.NO.112762~ This part replaces 12151-49401.

12151-37F00

$14.15

28

CIRCLIP

09381-18002

$1.67
